Chemical Reagent Boiling Point Tester RT ～ 300℃ Electric Furnace Heating ISO 6353

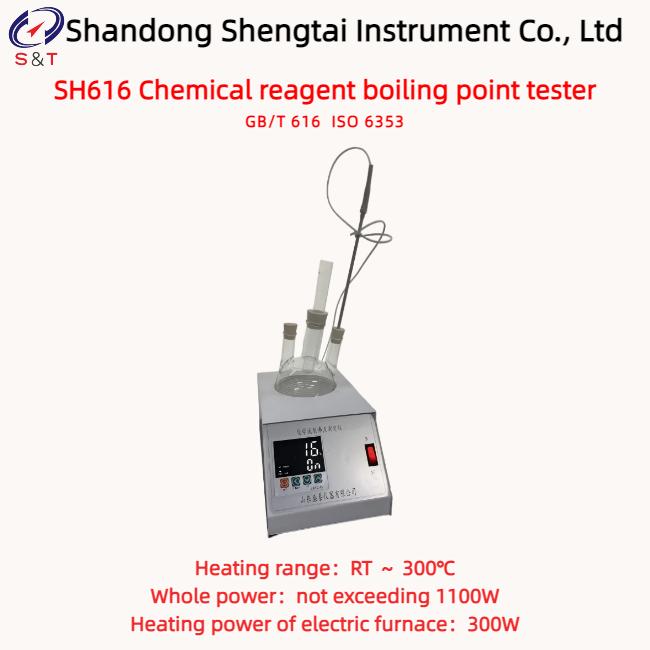

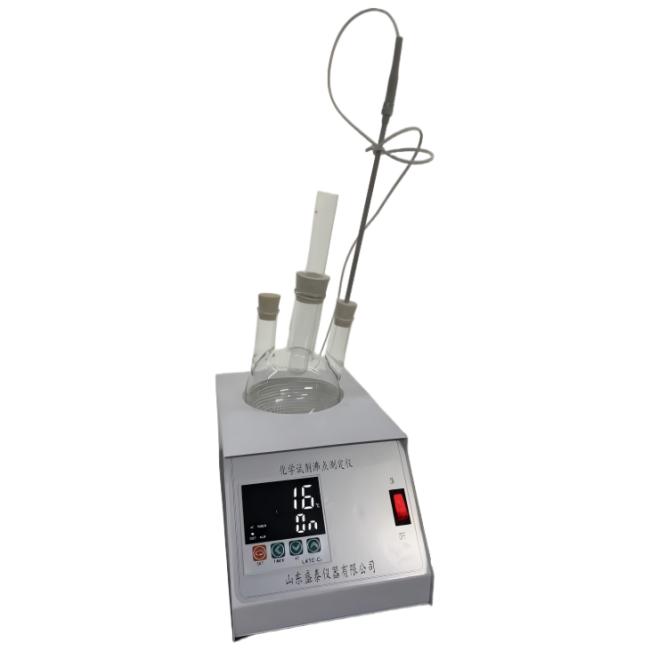

SH616 Chemical reagent boiling point tester
SH616 Chemical Reagent Boiling Point Determination Instrument is designed and manufactured in accordance with the requirements specified in the Chinese National Standard GB/T 616. This instrument features a microcontroller-based digital precision voltage regulator for electric heating, which ensures fine voltage adjustment, stable heating, and consistent temperature rise due to its precision digital voltage regulation.
The instrument is also equipped with a 500ml three-neck round-bottom flask, glass test tubes, a measuring thermometer, and an auxiliary thermometer. It features simple operation, stable performance, rapid heating, and uniform temperature rise. Additionally, the instrument can be configured with a dedicated barometer for user convenience during experiments.
Boiling point: The method's principle is that as the temperature of a liquid increases, its vapor pressure also rises. When the vapor pressure of the liquid equals the atmospheric pressure, boiling begins. Under standard conditions (1013.25 hPa, 0°C), the temperature at which the liquid boils is defined as its boiling point.
| Product Model | SH616 |
| Product Name | Chemical Reagent Boiling Point Tester/Boiling Point Tester |
| Manufacturer | Shandong Shengtai Instrument Co., Ltd |
| Test item | Boiling point of chemical reagents |
| Compliant with standard | GB/T616 |
| Simple technical features or parameters | This instrument is equipped with a microcontroller digital precision voltage regulating electric heater |
Instrument Features
The design of this instrument fully complies with the requirements of GB/T616.
The design of the test vessel clamp is reasonable, and the installation and disassembly of the round bottom flask are convenient.
Technical parameters
| Working power supply | AC220V ± 10% 50Hz |
| Heating power of electric furnace | 300W |
| Environmental temp | ≤ 35℃ |
| Relative humidity | ≤ 85% |
| Power consumption of the whole machine | not exceeding 1100W |
| Heating range | RT ～ 300℃ |
| Instrument size | 320 * 290 * 360mm |
| Instrument weight | 15kg |
| Packaging size with pressure gauge | 450 * 390 * 420mm |
| Packaging weight with pressure gauge | 18kg |
| Packaging size without barometer | 400 * 290 * 460mm |
| Packaging weight without barometer | kg |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Optional: Barometer
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing List
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Custom special three-port flask | 1 | Piece | |
| 3 | Thermometer | 2 | Piece | |
| 4 | Power cord | 1 | Piece | |
| 5 | Specification | 1 | Copy | |
| 6 | Packing list | 1 | Copy | |
| 7 | Warranty card | 1 | Copy |
