Vapor Pressure Tester For Petroleum Products RT ～ 100℃ Reid Method 0 ～ 200KPa ASTM D323

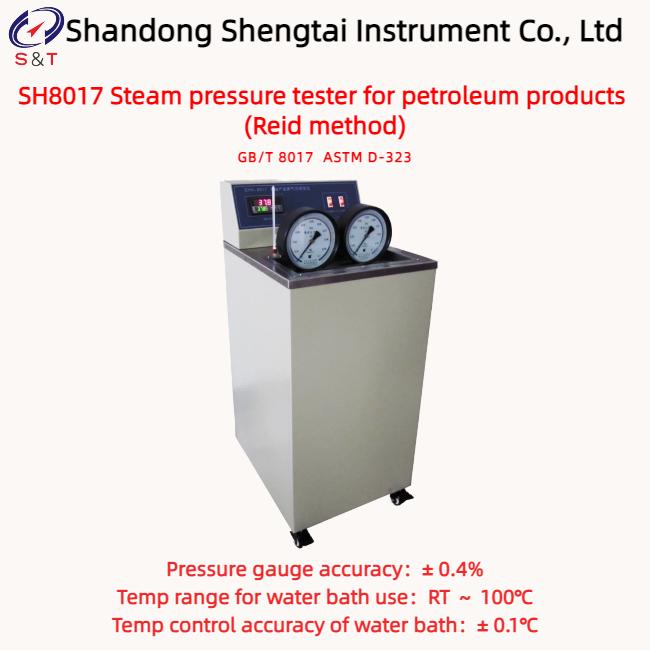

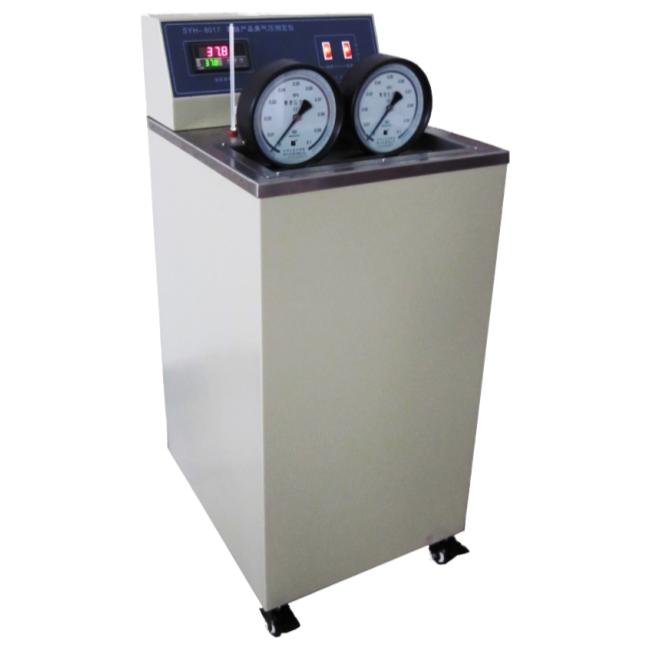

SH8017 Steam pressure tester for petroleum products Reid method
Standard: GB/T 8017 ASTM D323
SH8017 steam pressure tester for petroleum products is designed and manufactured according to the requirements stipulated in the People's Republic of China standard GB/T 8017 "steam pressure measurement method for petroleum products (Reid method)", ASTM D-323. It is suitable for measuring the steam pressure of gasoline, volatile crude oil and other volatile petroleum products.
Main technical indexes and parameters
| Heating power of water bath | 1600W |
| Temp range for water bath use | RT ～ 100℃ |
| Temp control accuracy of water bath | ± 0.1℃ |
| Pressure measurement range | 0 ～ 200KPa |
| Pressure gauge accuracy | ± 0.4% |
| Environmental temp | -10℃ ～ 35℃ |
| Relative humidity | ≤ 85% |
| Working power supply | AC220V ± 10% 50Hz |
| Power consumption of the whole machine | not exceeding 1700W |
| Instrument size | 485 * 405 * 980mm |
| Packaging size | 1070 * 490 * 640mm |
| Packaging weight | 58kg wooden crate |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Vapor pressure meter | Set | 1 | |
| 2 | Steam bomb | Set | 2 | |
| 3 | Pressure gauge | Piece | 2 | |
| 4 | Mercury thermometer | Piece | 1 | |
| 5 | Instruction | Copy | 1 | |
| 6 | Packing list | Copy | 1 | |
| 7 | Certificate warranty card | Copy | 1 |
