China 72m2 Acid Gas Wet Dust Collector Venturi Scrubber Air Pollution Control for sale

72m2 Acid Gas Wet Dust Collector Venturi Scrubber Air Pollution Control

Price Negotiable

Price: Negitionable

MOQ: Negotiate

Delivery Time: 30 days after receiving down payment

Brand: XINCHEN

Product Description

6480-10800m3/H 72m2 Flue Gas Desulfurization Equipment

product description

it is mainly composed of Water tank, Circulating water, Packing layer, Spraying system, Demister etc.

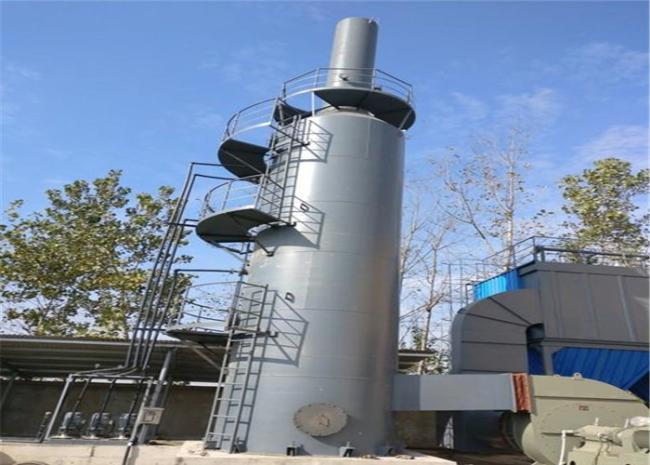

The FRP Acid Mist Gas Absorption Scrubber Tower is designed to capture dust particles, VOCs, chemical fumes, and other water / chemically soluble fumes and Vapors generated in industrial process.

Techinal parameters

Model	filting area(m2)	air volume(m3/h)	filting airspeed(m/min)	working resistance(Pa)	dust removing pressure(Mpa)
DMC-32	30	2880-4800	1.5-2.5	800-1800	0.4-0.6
DMC-48	48	4320-7200	1.5-2.5	800-1800	0.4-0.6
DMC-60	60	5400-9000	1.5-2.5	800-1800	0.4-0.6
DMC-72	72	6480-10800	1.5-2.5	800-1800	0.4-0.6
DMC-90	90	8100-13500	1.5-2.5	800-1800	0.4-0.6
DMC-120	120	10800-18000	1.5-2.5	800-1800	0.4-0.6
DMC-150	150	13000-22500	1.5-2.5	800-1800	0.4-0.6
DMC-180	180	16200-27000	1.5-2.5	800-1800	0.4-0.6
DMC-210	210	18900-31500	1.5-2.5	800-1800	0.4-0.6
DMC-250	250	22500-37500	1.5-2.5	800-1800	0.4-0.6
DMC-270	270	24300-40500	1.5-2.5	800-1800	0.4-0.6
DMC-300	300	27000-45000	1.5-2.5	800-1800	0.4-0.6
DMC-340	340	30400-51000	1.5-2.5	800-1800	0.4-0.6
DMC-420	420	37800-63000	1.5-2.5	800-1800	0.4-0.6
DMC-500	500	45000-75000	1.5-2.5	800-1800	0.4-0.6
DMC-600	600	54000-90000	1.5-2.5	800-1800	0.4-0.6
DMC-740	740	66600-111000	1.5-2.5	800-1800	0.4-0.6
DMC-870	870	78300-130500	1.5-2.5	800-1800	0.4-0.6
DMC-1000	1000	90000-150000	1.5-2.5	800-1800	0.4-0.6
DMC-1100	1100	99000-165000	1.5-2.5	800-1800	0.4-0.6

Equipment advantages

The DMC bag-type pulse dust collector in this project adopts the national JB/T8532-2008 standard design, and its performance characteristics are as follows:
The DMC bag-type pulse dust collector adopts a right-angle pulse valve for single-row jet cleaning and has a strong cleaning ability; Expanded ring filter bag mouth design, good sealing effect, convenient assembly and disassembly;
High-quality steel wire, multi-point welding automatic production line, galvanized protection treatment process, the filter bag frame produced has high strength and rigidity, without welding burrs, which reduces the mechanical wear of the filter bag and prolongs its service life;
The installation and maintenance mode of the uncovered cover, the filter bag replacement is quick and convenient;
DMC pulse bag filter adopts PLC or special program controller to control pulse dust removal, which is reliable in operation and high in automation.
