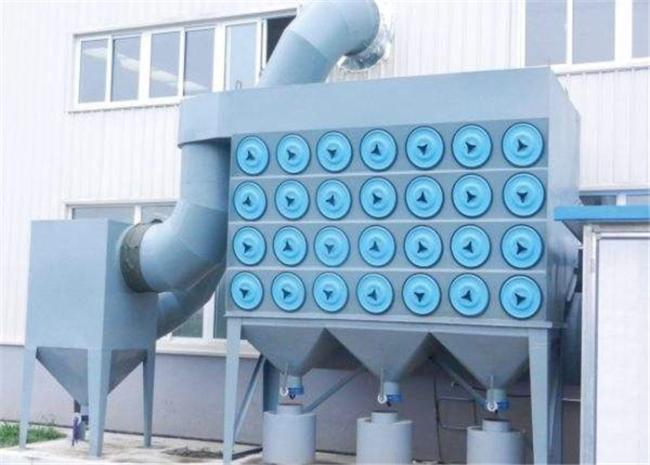

960m2 Cartridge Fume Extractor Industrial Dust Collector

Advantages:

1. Excellent filter material ensures dust removal efficiency of up to 99.99% for 1 micron.
2. It can be used as dust collector and dust removal system for various working conditions.
3. Simple structure.
4. Small size and saving floor space.
5. Easy maintenance.
6. Long service life.
7. The unit type combined structure makes the filter area, the treatment air volume and the external dimensions can be widely and flexibly selected, and has strong practicability.

Parameters

Appllication

Cartridge filter pulse dust collector is suitable for the blast furnace blower inlet dust, oxygen generator, air compressor inlet dust removal, control room gas dust removal, master control room air intake inlet dust, clean workshop, public building air-conditioning inlet dust removal and flue gas dust removal of low concentration. With the continuous development of material and dedusting technology, the cartridge filter are enlarge the application domain gradually. For now, it has been widely used in building material, metallurgy, electric power, food, chemical and other industries, etc. It has the part replace of bag filter and ESP dust collector, etc.

The working principle of cartridge filter

Cartridge filter is mainly composed of cabinet , filter cartridge and injection system, etc. When the dust gas into the dust collector, the sudden enlargement and air distribution plate will make the air flow in the part of coarse dust particles in under the action of gravity and inertia settling in ash hopper, fine granularity and density of small dust particles in dust filtering chamber.

By brown diffusion and sieve filter such as comprehensive effect, it makes the dust deposition on the surface of the filter material. The gas into after purification Air chamber by the exhaust pipe into the net. The resistance of cartridge filter material surface increase of the dust layer thickness.

Resistance to take when a specified value. At this time will be filtered air truncation first, and then open and electromagnetic pulse valve, the compressed air filter cartridge, make the filter cartridge expansion deformation produces vibration, and the reverse flow brush and attached to the filter bag looks on the surface of the powder. Ash hopper is sitting, stripped fall through the discharge valve discharge.

Pictures
