Helical 108mm 60 Degree Small Screw Conveyor 1500W Jam Production Line
Block Materials Flexible Screw Conveyor Machine
Application:
The screw conveyor is widely used for conveying powder, granule or small block materials, usually it could be used with the suit sieving machine.
will transport the waste (seeds and skin) from the processing of fruits such as mangoes, tomatoes and guavas. Mainly, they will unload on it degassing machines and fruit juice refiners.
This machine can be used on beverage, jam production line.
Technical parameters :
| Diameter(mm) | conveying angle | Power(kw) | Capacity(t/h) | |
| 108 | 0-60 | 1.5-2.2 | 8 | |
| 159 | 0-60 | 2.2-3 | 16 | |
| 219 | 0-45 | 3-4 | 30 | |
| 273 | 0-45 | 4-5.5 | 40 | |
| 300 | 0-30 | 5.5-7.5 | 45 | |
| 400 | 0-30 | 7.5-11 | 50 | |
| 500 | 0-30 | 7.5-11 | 55 | |
Screw conveyor Structure
The structure of the screw conveyor, mainly by the drive device, discharge hole, rotating screw axis, bearings, housing and feeding port, etc. Usually screw conveyor has the bearing on the material movement terminal side, it can withstand the material to spiral axial force of the blade. When the conveyor is longer than the fuselage, it should be added the middle hanging bearing.

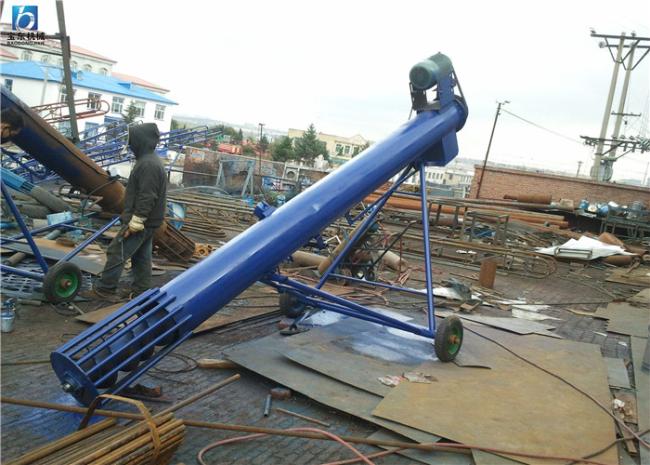

Pictures
Characteristic
- Efficient delivery : small diameter , high rotating speed, large transmission capacity, variable pitch of spiral body, and small resistance of intermediate bearing make loading material smoothly, quickly and evenly.
- Random arrangement : conveyor has good integral rigidity and can transport the products flatly or steeply inclined, it can be connected with its corollary equipments directly , and can be set up and dismantled easily with small floor space.
- Good lubrication : low oil lubricating sliding tile, multilayer labyrinth oil seal design and integral lubricating system composed of of oil pump, distributor and pipeline are convenient and can completely lubricate all the running parts.
- Reliable sealing : the dust cover of reducer is reliable for preventing leakage which can protect reducer and create good working condition. Improved peephole can prevent water seepage and material leakage.
- Diverse connection : feed inlet and outlet can be connected not only with universal ball, bag,flange etc but also butterfly valve and gate valve.
- Innovative design: special reducer designed and produced with introduced technology not only has the advantages of a small size, a big bearing torque.
