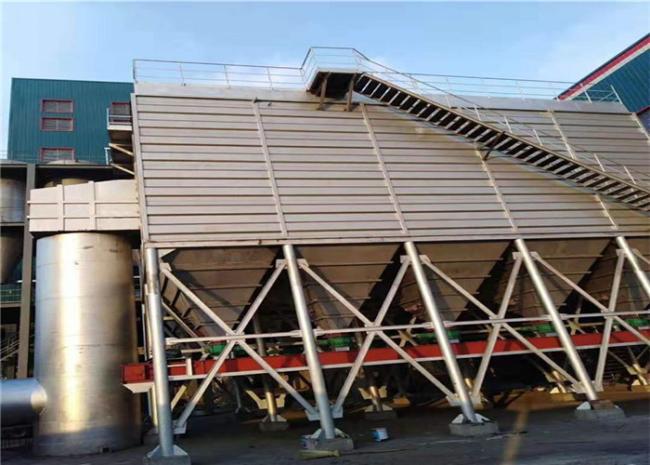

Filter Bag House 372m2 Pulse Jet Dust Collector For Brick Factory
Pulse Jet Type Filter Bag House Dust Collector For Brick Factory
Application
Fabric filters, also known as Baghouses, are used to filter dust and particulate from a gas stream. This type of filter is the
most common form of abatement equipment in the world, with literally hundreds of thousands of installations. Fabric filters come in all sizes ranging from small bin vent collectors to very large dust collectors that can handle a million cubic feet per minute (cfm) of air or gas, or more.
Ever Lucky Mahicnery has been designing and supplying fabric filters, dust collectors, and baghouses for over 20 years. We offer both standard and custom designs.
Industrial dust collector system /industrial dust collector for sale/4500cfm dust collector / /industrial dust collector rental
industrial dust collection system design/ baghouse /baghouse filter /bag filter /fabric filte/baghouse dust collector
manufacturers/dust collector equipment /bag filter in cement plant /bag filters in cement industry
Techinal parameters
| model | PPC32-3 | PPC32-4 | PPC32-5 | PPC32-6 | PPC64-4 | PPC64-5 | PPC64-6 | PPC64-7 | PPC64-8 | |
| Handling air volume (m3/h) | 6900 | 8900 | 11160 | 13390 | 17800 | 22300 | 26700 | 31200 | 35700 | |
| Filtration wind speed (m/min) | 1.2-2.0 (select different purification filter wind speeds according to different dust points) | |||||||||
| Total filtration area (m2) | 93 | 124 | 155 | 186 | 248 | 310 | 372 | 434 | 496 | |
| Net filtration area (m2) | 62 | 93 | 124 | 155 | 186 | 248 | 310 | 372 | 434 | |
| Number of dust collectors (units) | 3 | 4 | 5 | 6 | 4 | 5 | 6 | 7 | 8 | |
| Total number of filter bags (bars) (pcs) | 96 | 128 | 160 | 192 | 256 | 320 | 384 | 448 | 512 | |
| Ash pressure Shrink air |
Pressure (Pa) | (5-7)×105 | ||||||||
| Air consumption (m3/min) | 0.27 | 0.37 | 0.46 | 0.55 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | |
| Pulse valve | amount) | 3 | 4 | 5 | 6 | 4 | 5 | 6 | 7 | 8 |
| Specifications (inches) | 1-1/2′′ | 2-1/2′′ | ||||||||
| Poppet valve (with cylinder) |
amount) | 3 | 4 | 5 | 6 | 4 | 5 | 6 | 7 | 8 |
| Specification (mm) | Lifting valve plate diameter Φ460, cylinder diameter Φ63 | Lifting valve plate diameter Φ595, cylinder diameter Φ100 | ||||||||
| Star unloading device YJD-16 | Feeding port 300×300, height 400mm, speed 41r/min, gear motor power 1.5kW, output 39.4m3/h | |||||||||
| Screw conveyor | specification | no N/A |
Diameter Φ300, output 30m3/h (filling rate Φ=0.7) | |||||||
| Reducer | no N/A |
Model XWD2.2-5-1/59, power 2.2kW | ||||||||
| Filter bag specifications and materials | Diameter × length Φ130×2450, polyester needle felt weight 450g/m2, use temperature 120°C | |||||||||
| Insulation area (m2) | 26.5 | 34 | 41 | 48.5 | 70 | 94 | 118 | 124 | 166 | |
| Total weight of equipment (approximate value) (Kg) | 3110 | 4400 | 5700 | 7000 | 8940 | 10750 | 12570 | 14380 | 16200 | |
Equipment advantages
▲Clean the dust more thoroughly
The off-line three (filtering, cleaning, static) cleaning method is adopted to avoid the "re-adsorption" of cleaning.
▲More flexible design
According to the requirements of the working conditions, the settling chamber can be designed to increase the life of the filter bag, and the dust concentration can be as high as 1000g/Nm3.
