Cement Silo And Concrete Plant 8t/H Small Auger Conveyor
Good Quality Screw Conveyors For Cement Silo And Concrete Plant
Product Description
Screw conveyor series screw conveyor is divided into horizontal screw conveyor and vertical screw conveyor from the angle of displacement direction of conveying materials. It is mainly used for horizontal conveying and vertical lifting of various loose materials, such as powder, granular and small pieces. It is not suitable for conveying deteriorative, viscous, caking or high temperature, pressure-resistant and relatively high. Special materials with high corrosiveness. Screw conveyor is widely used in various industries, such as building materials, chemical industry, power, metallurgy, coal mine, grain and other industries.
T
LS series screw conveyor technical parameters:
| Technical data Model Specification |
Helical Diameter mm | Pitch mm |
Speed r/min | Standard Volume Conveyance | Speed r/min | Standard Volume Conveyance | Speed r/min | Standard Volume Conveyance | Speed r/min | |||||||
| lv(m³/h) | lv(m³/h) | lv(m³/h) | ||||||||||||||
| n | Diameter | n | Diameter | n | Diameter | n | ||||||||||
| 0.45 | 0.33 | 0.15 | 0.45 | 0.33 | 0.15 | 0.45 | 0.33 | 0.15 | ||||||||
| Medium-sized | LS200 | 200 | 200 | 100 | 16.9 | 12.4 | 5.6 | 80 | 13.5 | 9.9 | 4.5 | 63 | 10.7 | 7.8 | 3.6 | 50 |
| LS250 | 250 | 250 | 90 | 29.7 | 21.8 | 9.9 | 71 | 23.5 | 17.2 | 7.8 | 56 | 18.5 | 13.6 | 6.2 | 45 | |
| LS315 | 315 | 315 | 80 | 52.9 | 38.8 | 17.6 | 63 | 41.6 | 30.5 | 13.9 | 50 | 33.1 | 24.2 | 11 | 40 | |
| LS400 | 400 | 355 | 71 | 85.3 | 62.5 | 28.4 | 56 | 67.3 | 49.3 | 22.4 | 45 | 54.1 | 39.6 | 18 | 36 | |
| Large | LS500 | 500 | 400 | 63 | 133.2 | 97.7 | 44.4 | 50 | 105.8 | 77.6 | 35.3 | 40 | 84.6 | 62 | 28.2 | 32 |
| LS630 | 630 | 450 | 50 | 188.9 | 138.5 | 63 | 40 | 151.1 | 111 | 50.4 | 32 | 120.9 | 88.6 | 40.3 | 25 | |
| Oversize | LS800 | 800 | 500 | 40 | 270.7 | 198.5 | 90.2 | 32 | 216.6 | 159 | 72.2 | 25 | 169.2 | 124.1 | 54.4 | 20 |
| LS1000 | 1000 | 560 | 32 | 379 | 277.9 | 126 | 25 | 296.1 | 217 | 98.7 | 20 | 236.9 | 173.7 | 79 | 16 | |
| LS1250 | 1250 | 630 | 25 | 520.5 | 381.5 | 174 | 20 | 416.4 | 305 | 139 | 16 | 333.1 | 244.3 | 111 | 13 | |
Screw conveyor Structure
The structure of the screw conveyor, mainly by the drive device, discharge hole, rotating screw axis, bearings, housing and feeding port, etc. Usually screw conveyor has the bearing on the material movement terminal side, it can withstand the material to spiral axial force of the blade. When the conveyor is longer than the fuselage, it should be added the middle hanging bearing.

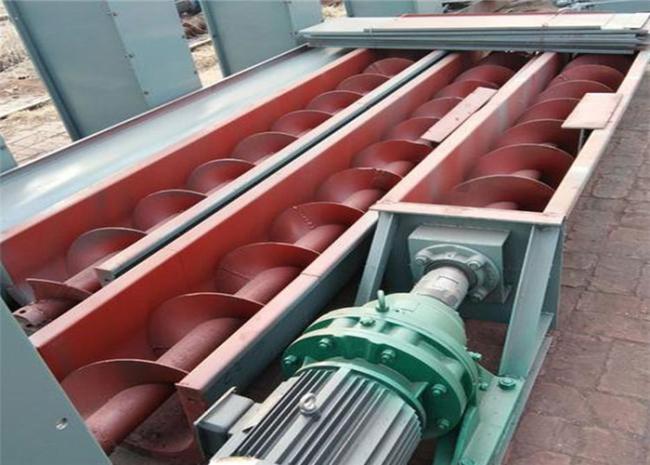

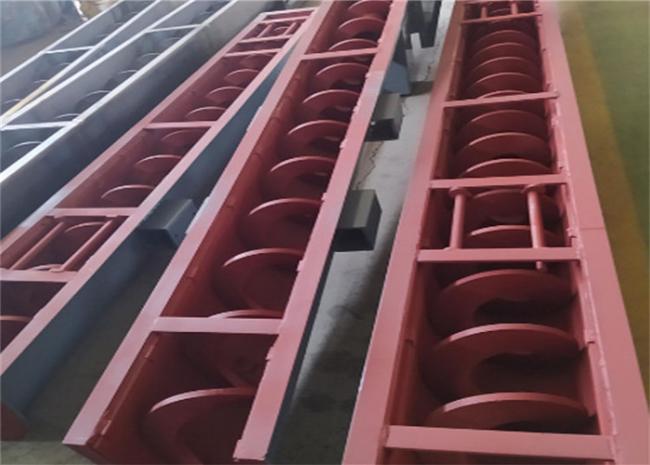

Pictures
Characteristic
- Efficient delivery : small diameter , high rotating speed, large transmission capacity, variable pitch of spiral body, and small resistance of intermediate bearing make loading material smoothly, quickly and evenly.
- Random arrangement : conveyor has good integral rigidity and can transport the products flatly or steeply inclined, it can be connected with its corollary equipments directly , and can be set up and dismantled easily with small floor space.
- Good lubrication : low oil lubricating sliding tile, multilayer labyrinth oil seal design and integral lubricating system composed of of oil pump, distributor and pipeline are convenient and can completely lubricate all the running parts.
- Reliable sealing : the dust cover of reducer is reliable for preventing leakage which can protect reducer and create good working condition. Improved peephole can prevent water seepage and material leakage.
- Diverse connection : feed inlet and outlet can be connected not only with universal ball, bag,flange etc but also butterfly valve and gate valve.
- Innovative design: special reducer designed and produced with introduced technology not only has the advantages of a small size, a big bearing torque.
