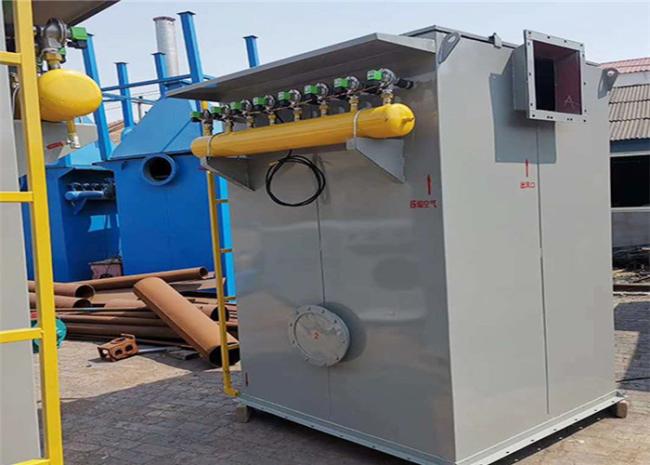

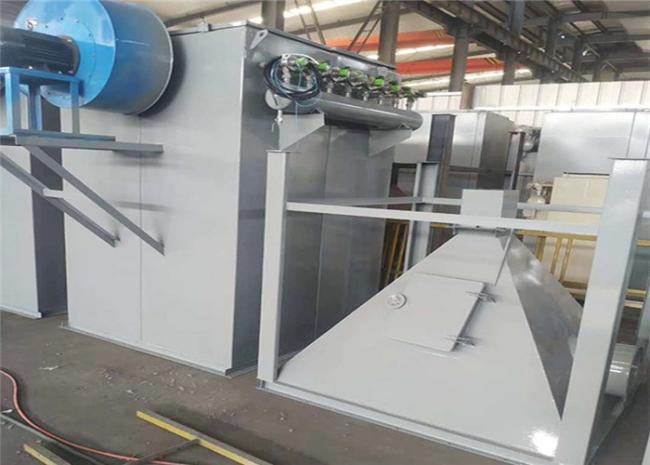

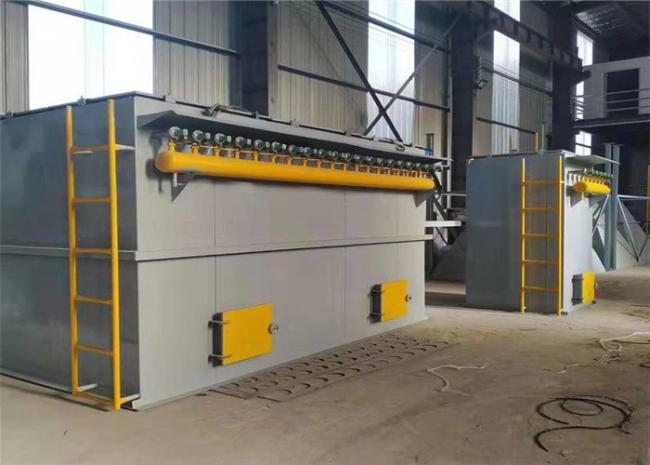

Industrial Pulse Jet Baghouse Dedusting Equipment /Boiler Dust Collector
Product Description
single pulse bag filter is my company digestion and absorption of domestic and foreign similar product advantage, after improving the design of small bag filter, filter using pulse blowing dust, soot cleaning effect is good, high purification efficiency, parameters of large and long life of filter pocket, the advantages of small maintenance workload, safe and reliable operation. It’s widely used in metallurgy, building materials, machinery, chemical industry, mines and other industrial and mining enterprisesof fibrous dust purification of industrial dust and material recycling.
Technical parameters
| TYPE | HMC-32 | HMC-48 | HMC-64 | HMC-80 | HMC-96 | HMC-112 | |||||
| Total filtering area(m2) | 24 | 36 | 48 | 60 | 72 | 84 | |||||
| Filter wind speed(m/min) | 1.0-1.5 | ||||||||||
| Air volumn(m3/h) | 1500-2400 | 2500-3500 | 3500-5000 | 4500-6000 | 5500-7000 | 6500-8500 | |||||
| Quantity of filter bag(piece) | 32 | 48 | 64 | 80 | 96 | 112 | |||||
| Gas consumption(m/min) | 0.032 | 0.048 | 0.064 | 0.08 | 0.096 | 0.11 | |||||
| Entrance dust concentration(g/m3) | 200 | ||||||||||
| Exitance dust concentration (mg/m3) | 30 | ||||||||||
| Injection pressure (MPa) | 0.5-0.7 | ||||||||||
| Under negative pressure (Pa) | 5000 | ||||||||||
| Equipment resistance(Pa) | ≤1200 | ||||||||||
| Quantity of pulse valve(piece) | 4 | 6 | 8 | 10 | 12 | 14 | |||||
| Motor type | Y90S-2 | Y90L-2 | Y100L-2 | Y132S1-2 | Y132S1-2 | Y132S2-2 | |||||
| Power (KW) | 1.5 | 2.2 | 3.0 | 5.5 | 5.5 | 7.5 | |||||
| Weight (kg) | HMC(A) | 1350 | 1620 | 1850 | 2360 | 2800 | 3200 | ||||
| HMC(B) | 1220 | 1470 | 1670 | 2150 | 2540 |
2880 |
|||||
Product principle:
1.Dust removal process:
Dust-laden gas enters the dust collector through the air inlet. The dust of the larger particles directly falls into the ash hopper. The gas containing the particulate dust passes through the filter bag. The dust is trapped on the outer surface of the filter bag, and the gas is purified and discharged by the induced draft fan. Into the atmosphere.
2.Ash removal process:
As the filtration work continues, dust particles adhering to the outer surface of the filter bag increase, and the dust collector operation resistance increases. The switching valve of a filter unit closes, the filter unit stops working, and the reverse-blowing compressed air reversely enters the filter unit. The dust on the outer surface of the filter bag is dropped, and then the valve plate is switched to open, the filter unit is again operated, and the dust is turned to the next filter unit. The entire cleaning process alternates with each filter unit.
