Iso 20000m3/H Carbon Steel Industrial Dust Collectors For Woodworking
Cartridge Filter Pulse Dust Jet Collector for Industrial
Product Description
ISO 20000m3/h Carbon Steel Woodworking Dust Collector
Fabric Filter Bag Type Industrial Dust Collector For Woodworking Collector Dust Industrial Woodworking Dust Collector
Product overview
Industrial dust collector is widely used in building, metallurgy, mining, stone processing industries and etc., it owns dust-containing gas purification treatment system, is the ideal equipment for environmental dust removal.
Most of the cartridge dust collectors are used in the workplaces of the factory production workshops and those places with higher environmental requirements. Compared with the general dust collectors, the filter cartridge dust collectors are smaller in size and have less resistance to operation, so they work particularly well. The speed of operation is also large, and the work efficiency is good.
Techinal parameters
|
Model |
QDDMC-32 | QDDMC-48 | QDDMC-64 | QDDMC-80 | QDDMC-96 | QDDMC-112 | |
| Filter area(㎡) | 24 | 36 | 48 | 60 | 72 | 84 | |
| Filter speed (m/min) | 1.04~1.67 | 1.15〜1.62 | 1.21~1.74 | l.25~1.67 | I.27〜1.62 | 1.28-1.68 | |
| Air volume (m³/h) | 1500-2400 | 2500-3500 | 3500-5000 | 4500-6000 | 5500-7000 | 6500-8300 | |
| Bag quantity (piece) | 32 | 48 | 64 | 80 | 96 | 112 | |
| Gas consumption (m³/min) | 0.032 | 0.048 | 0.064 | 0.08 | 0.096 | 0.11 | |
| Air inlet concentration(g/m) | 200 | ||||||
| Air inlet concentration(mg/m) | 50 | ||||||
| Injection pressure(MPa) | ().5~0.7 | ||||||
| Negative pressure(Pa) | 5000 | ||||||
| Machine pressure resistance(Pa) | ≤1200 | ||||||
| Pulse valve | Size | 1'' | |||||
| Qty(Piece) | 4 | 6 | 8 | 10 | 12 | 14 | |
| Motor power (KW) | 1.5 | 2.2 | 3.0 | 5.5 | 5.5 | 7.5 | |
| Total weight(kg) | 1350 | 1620 | 1850 | 2360 | 2800 | 3200 | |
Features:
Advanced Function: Adoption of the latest German dedusting technology which is different from traditional ventilation exhaust, water filter and bag filter and can collecting and even recycling of small dust.
Superior Quality: All main parts are made from imported material, which offers incomparable filtrability and ventilation compared to common material. Every square meter can handle minimum 0.1 micron dust while flow rate can reach 235 m3/h. Filtration efficiency is greatly increased because of folding type structure by comparing with bag filter .
Intelligent Control: Famous brand microcomputer control combines with pneumatic control system to ensure machine to work effectively and stably, which is more stable and intelligent and easier to operate and control.
Intelligent Test: Intelligent negative pressure detection system offers automatic cleaning when filter element is blocked and negative pressure in box increases.
Applicability: the use of advanced manufacturing technology, the volume is the same bag type collector filtration area 1/3, convenient transportation, and can be a good place for a variety of installation, stacked shape design, blue and white contrast color spray, beautiful and practical.

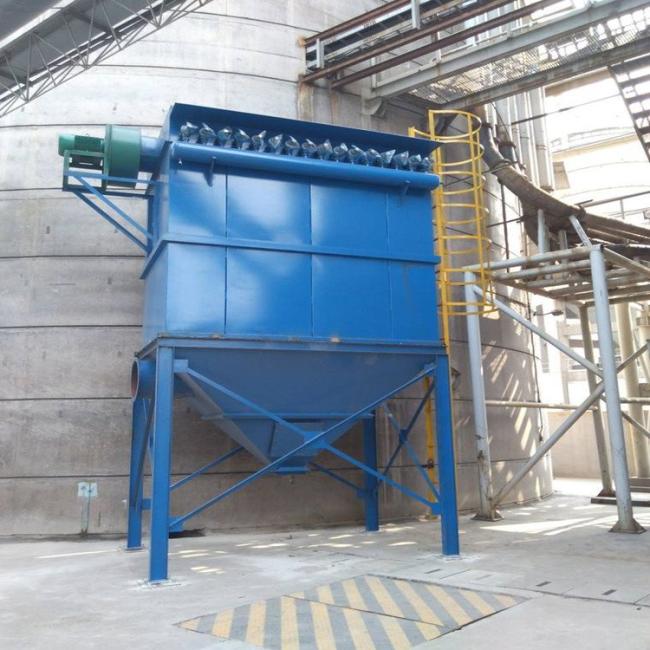

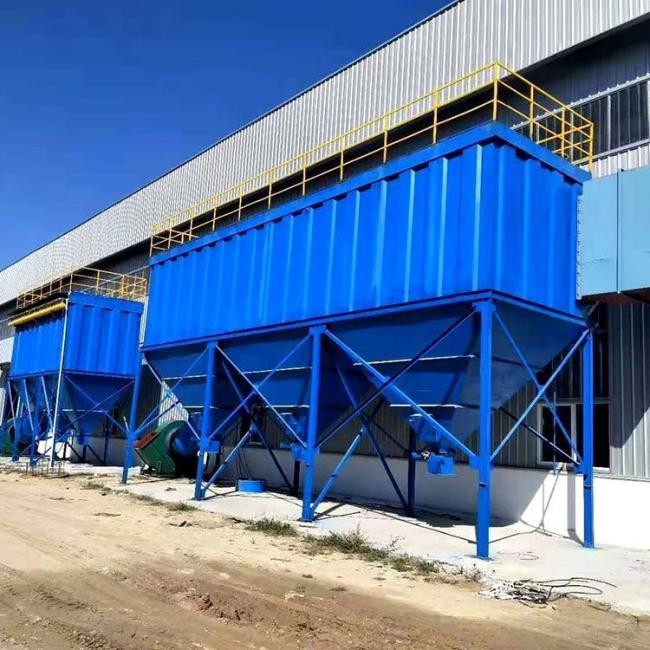

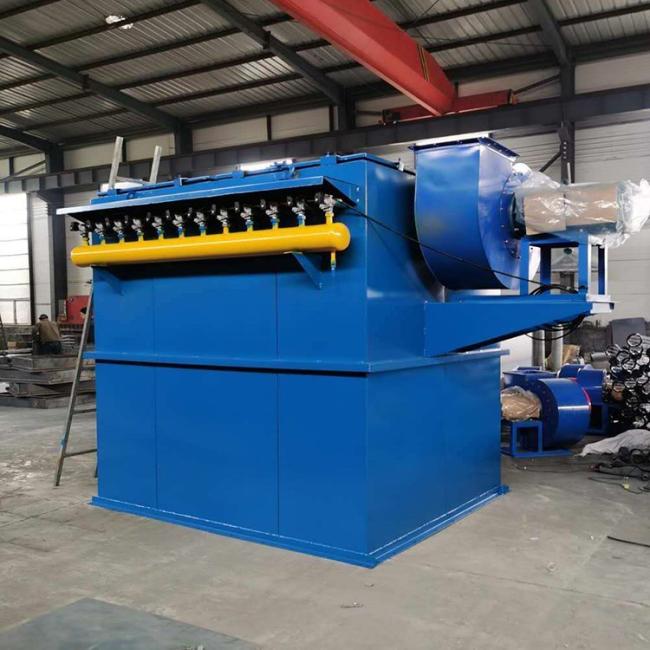

Pictures
Operating principle of dust collector
1. Under the action of the main fan of the system, the dust-containing gas enters the air box at the bottom of the dust collector from the ash hopper at the lower part of the dust collector or the air inlet of the side air duct of the box body for pretreatment of the dust-containing gas, and then enters from the bottom to the upper box body Each dust removal room;
2. Dust is adsorbed on the outer surface of the filter cartridge, and the filtered clean gas enters the clean air chamber in the upper box through the filter cartridge and is collected to the air outlet for discharge.
3. As the filtering conditions continue, the dust accumulated on the outer surface of the filter cartridge will accumulate, which will increase the operating resistance of the equipment accordingly. In order to ensure the normal operation of the system, the upper limit of the dust collector resistance should be maintained in the range of 1400~1600Pa When the limit is exceeded, the pulse automatic controller will issue instructions through fixed resistance or timing to automatically clean the dust.
4. Cleaning dust, also known as dust cleaning, is a timed start of the pulse valve setted by CNC program, to let the compressed air(0.5-0.7MPa) in the air pump be ejected from the orifice of the blowing pipe, when the compressed air pass through the Venturi tube of bag cage, the Venturi amplifies the pressure of the compressed air by several times. The high-pressure air entering the filter bag causes the filter bag to expand rapidly in a flash, and shakes off the dust by the reverse action of the airflow.
