HUAWEI OPM8 TMB1OPM801 03033DPT Huawei OSN 1800 8-Channel Monitor Board
Price:
$100-$200
MOQ:
1pc
Delivery Time:
3-7 work days
Brand:
HUAWEI
Product Description

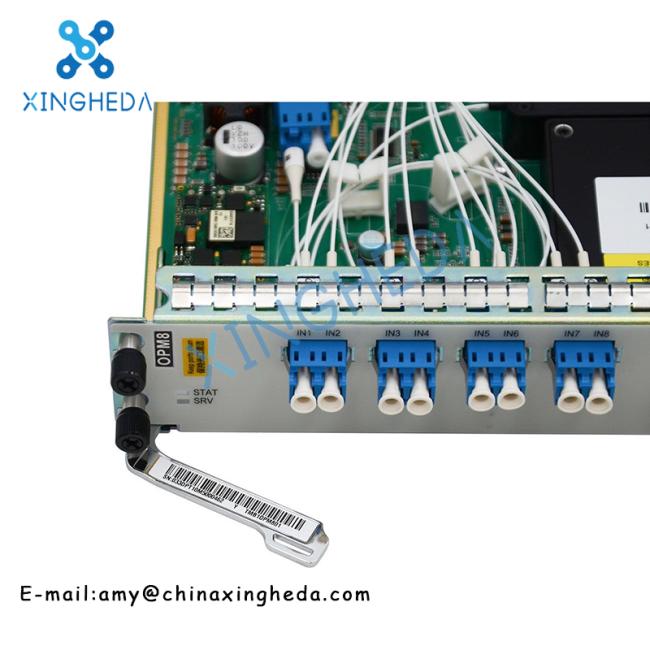

HUAWEI OPM8 TMB1OPM801 03033DPT Huawei OSN 1800 8-channel Monitor Board
Product Desription:
TMB1OPM801, 8-channel Optical Power Monitor Board
Apply to OSN 1800 I, OSN 1800 II and OSN 1800V
Provides eight ports and each of the ports supports optical power monitoring of up to 80 wavelengths.
Specification:
| Specification | |
| Operating wavelength range (nm) | 1529 to 1561 |
| Detect range for single channel optical power(dBm) | -30 to -10 |
| Detected accuracy for optical power(dB) | ±1.5 |
| Channel spacing(GHz) | 50/100 |
| Numbers of optical interface(pcs) | 8 |
| Typical Power Consumption (W) | 7 |
| Maximum Power Consumption (W) | 8 |
| Mechanical Specifications | |
| Dimensions (H x W x D,mm) | 40.1 x 193.8 x 205.9 |
| Weight(kg) | 0.8 |
Product details:
If you are interested, please let us know the specific model. We will provide the best service and the best price!
