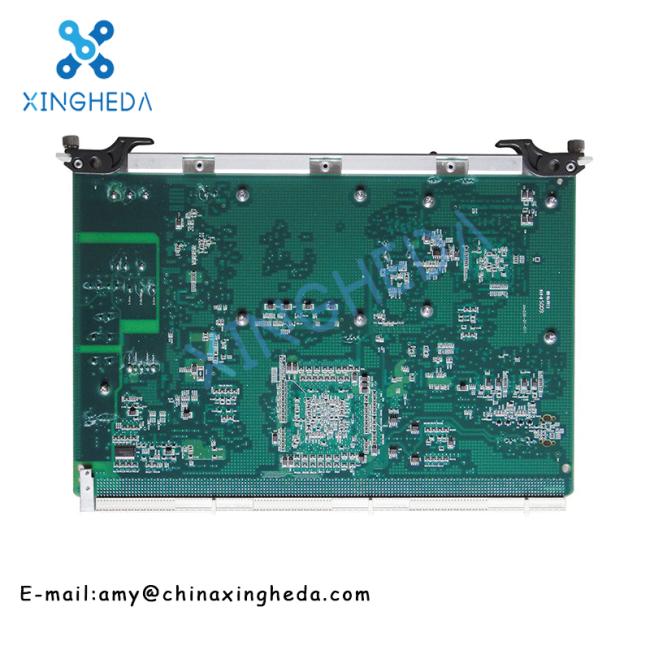

HUAWEI SS65XCS 03030GJA Huawei Metro3000 Cross Connection / Clock Integrated Board
HUAWEI SS65XCS 03030GJA Huawei Metro3000 Cross Connection/clock Integrated Board
Product Desription:
Support two-fiber unidirectional and bidirectional MSPs, four-fiber MSP, unidirectional and bidirectional SNCPs, PPs.
Support the 1:1, 1+1 and 1:N (1< N≤ 14) MSP mode.
Supports SNCP and SNCP, SNCP and PP, SNCP and MSP, MSP and MSP, and PP and MSP protection scheme.
Supports intersection and DNI protection for the following: SNCP and SNCP, SNCP and MSP, and MSP and MSP.
Support node failure protection. adopts the 1+1 hot backup.
Support phase-lock 2 external timing signals and 12 timing signals of the interface units, provide 2 timing signals, and generate system clock signals.
XCS is a Cross-Connect board for Huawei Metro 3000, provide 128x128 VC-4s High order, 32x32 VC-4 Low order Cross-Connect capacity and 96VC-4s Access capacity. XCS have 65 version, part number is 03030GJA.
Specification:
| Mechanical Specifications | |
| Dimensions (mm) | 340 (H)x40 (W)x218.5 (D) |
| Weight(kg) | 1.405 |
Product details:
If you are interested, please let us know the specific model. We will provide the best service and the best price!
