HUAWEI H901XEHD 03023APB Huawei MA5800 Series 8-Port 10G EPON OLT Interface Board
Price:
$100-$200
MOQ:
1pc
Delivery Time:
3-7 work days
Brand:
HUAWEI
Product Description

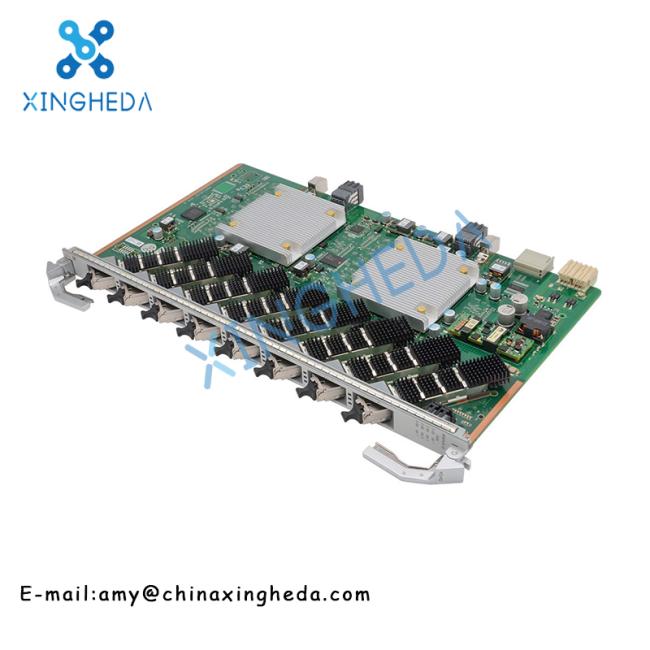

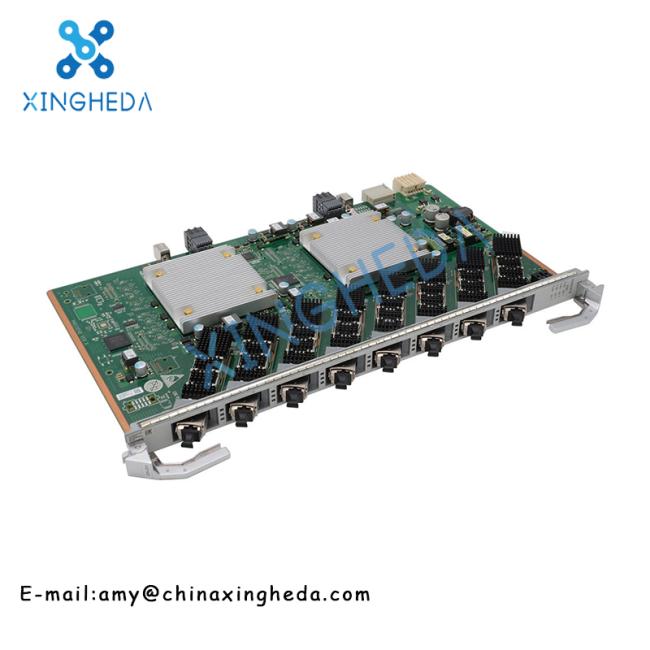

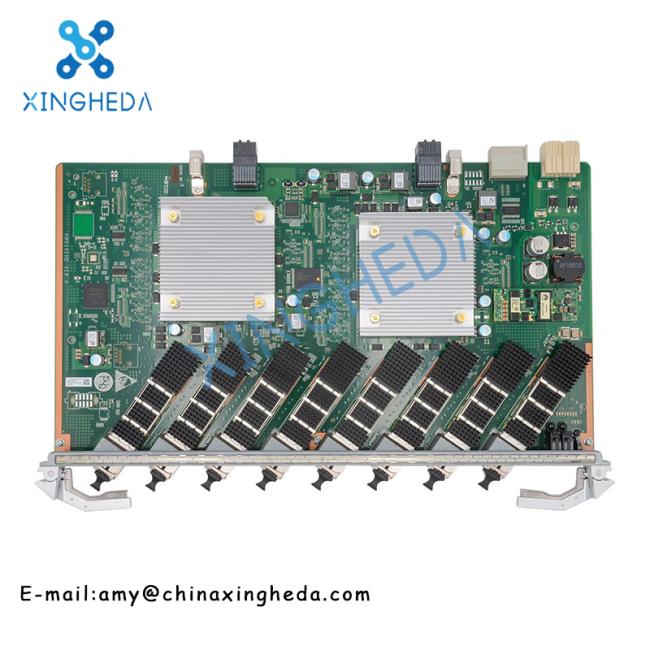

HUAWEI H901XEHD 03023APB Huawei MA5800 series 8-port 10G EPON OLT Interface Board
Product Desription:
Huawei 8-port 10G EPON Port Interface Card with 10GEPON PR30 XFP Optical Module
Apply to Huawei MA5800 series OLT system
Support max split ration 1:128
Interface Type: SC/PC
Maximum transmission distance: 60 km
XEHD is an 8-port 10G EPON OLT interface card, which works with the 10G EPON ONU to provide 10G EPON access service.
Specification:
| Specification | |
| Service ports | |
| GPON Port | 8 10G EPON Port |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Reach | 60 km |
| Device Specifications | |
| Forwarding capability | 80 Gbit/s |
| Rate mode |
Asymmetric Symmetric |
| LLIDs per PON port | 256 |
| Service flows per PON board | 16368 |
| Maximum Frame Size | 2052 bytes |
| Maximum number of MAC addresses | 131072 |
| Distance of two ONUs under the same PON port | 60 km |
| 1588v2 |
EPON mode: supported 10G EPON mode: not supported |
| Power Consumption | Static: 40 W; Maximum: 65 W |
| Operating temperature | -40°C to +65°C |
| Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
Product details:
If you are interested, please let us know the specific model. We will provide the best service and the best price!
