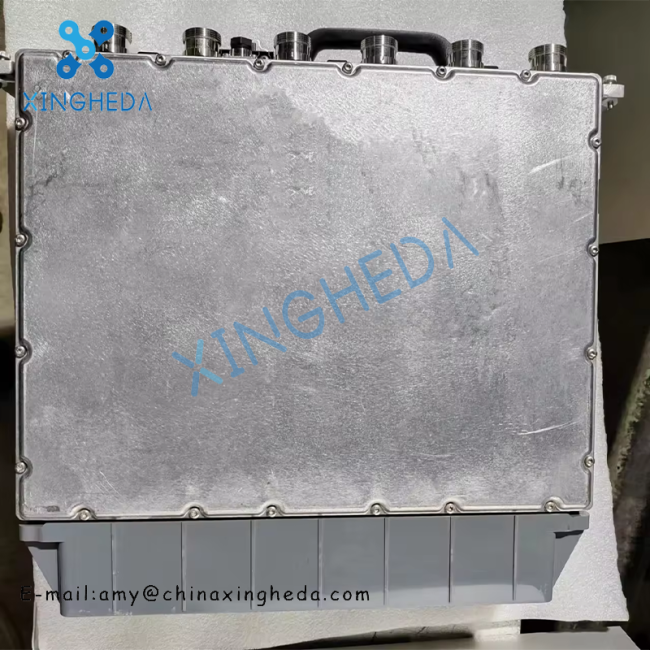

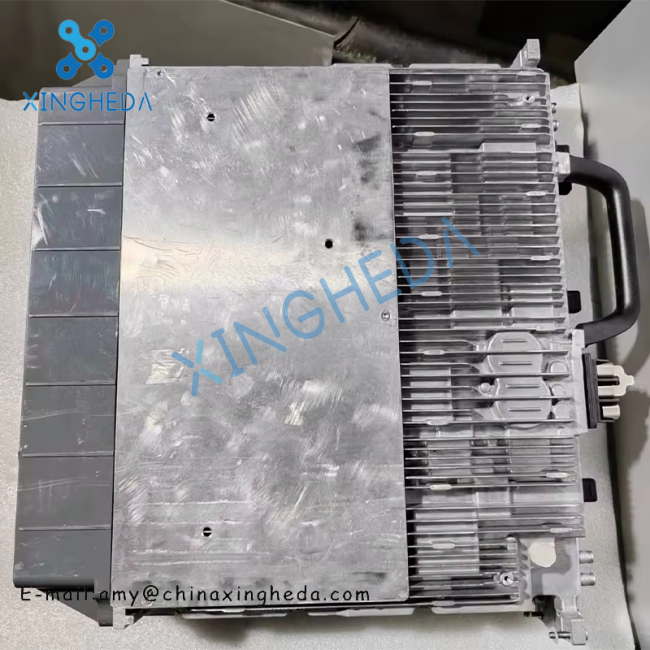

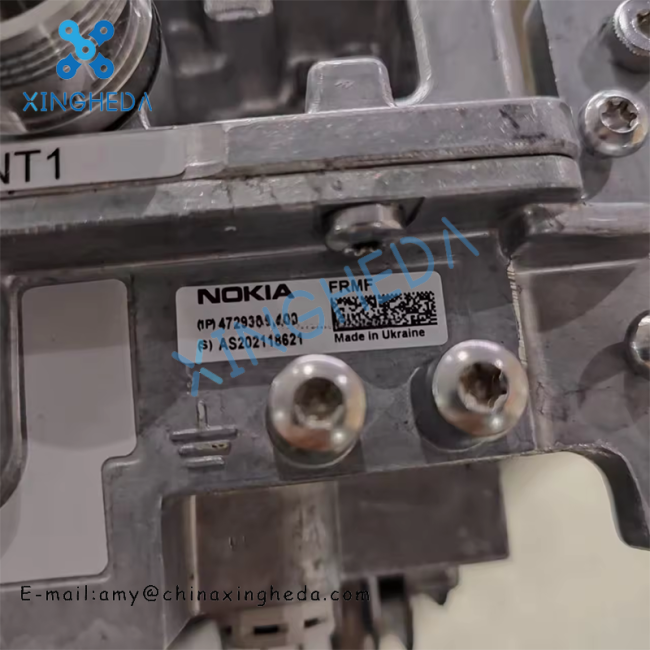

NOKIA FRMF 472930A 2T2R Flexi RFM 6-pipe 800 6*60W FDD-LTE Unit
NOKIA FRMF 472930A 2T2R Flexi RFM 6-pipe 800 6*60W FDD-LTE Unit
Product Description:
An integral component of the new AirScale Radio Access, Nokia AirScale Base Station provides operators with a smooth and flexible journey towards 5G and cloud connectivity. AirScale Base Stations support all radio technologies (GSM, WCDMA, FDD LTE, TDD LTE, LTE-A Pro and are 5G-ready) and network architectures (Distributed RAN,Centralized RAN and Cloud RAN).AirScale Base Stations offer 10 Gbps throughput per system module,which handles baseband processing and control and includes front haul and backhaul interfaces. More capacity can be implemented by chaining together an unlimited number of system modules.Furthermore, AirScale Base Stations can take advantage of additional baseband processing power available from Cloud RAN for unlimited scalability.
Product Specifications:
|
Property
|
Value
|
|
Output power
|
6x60 W
|
|
MIMO
|
2TX
|
|
Outdoor installation
|
Yes
|
|
SW supported technology
|
FDD-LTE
|
|
TX frequency range
|
791-821 MHz
|
|
RX frequency range
|
832-862 MHz
|
| Weight |
24 kg (52.9 lb)
|
| Volume |
19.3 l
|
|
Height
|
Core RFM: 115 mm (4.5 in.)
|
|
Depth
|
Core RFM: 400 mm (15.7 in.)
Without front covers: 422 mm
(16.6 in.)
With front covers: 560 mm
(22.1 in.)
|
|
Width
|
Core RFM: 420 mm (16.5 in.)
Without front covers: 447 mm
(17.6 in.)
With front covers: 492 mm
(19.4 in.)
|
|
Maximum operational outdoor temperature
|
+55°C (131°F)
|
|
Minimum operational temperature
|
-35°C (-31°F)
|
|
Nominal supply voltage
|
48.0 V DC
|
Product Details:
If you are interested, please let us know the specific model. We will provide the best service and the best price!
