Huawei MCUD1 H801MCUD1 03021UEU Huawei MA5608T 2-port Control Unit Board
Price:
Negotiable
MOQ:
1pc
Delivery Time:
3-7 work days
Brand:
HUAWEI
Product Description

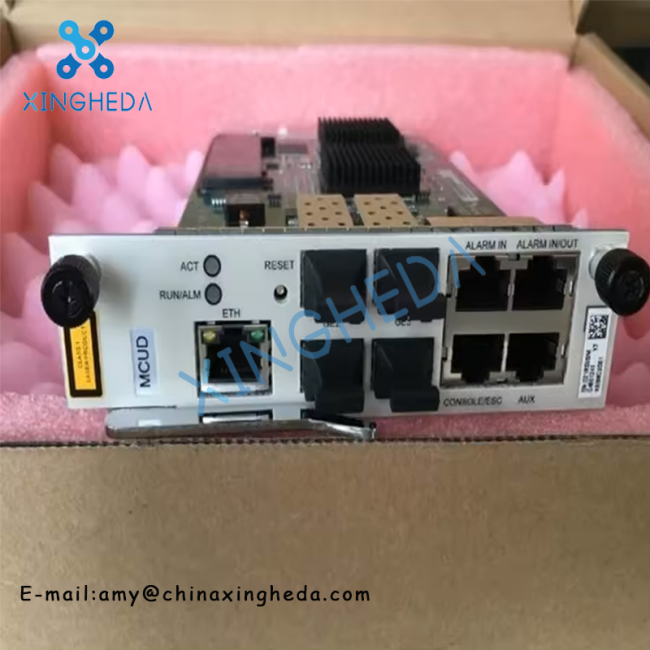

Huawei MCUD1 H801MCUD1 03021UEU Huawei MA5608T 2-port Control Unit Board
Product Description:
MCUD1 is a main control card of Huawei OLT MA5608T, it provides system control and service switching and aggregation, integrates with 2 GE, 2 10GE upstream ports. Switching capacity 256G (active/standby mode) , MAX access 2048 subscribers. MCUD1 has one hardware version, H801MCUD1.
Product Specifications:
| LAN switch | 24 x GE + 4 x 10GE |
| Switching capacity | 256 Gbit/s (active/standby mode) 512 Gbit/s (load sharing mode) |
| andwidth per slot | 10 Gbit/s (active/standby mode) 20 Gbit/s (load sharing mode) |
| MAC address table | 32768 |
| Access user | 2048 |
| Multicast user | 2048 |
| Configurable multicast channel | 4096 |
| Concurrent multicast channel | 2000 |
| IPv4 routing table | 5120 |
| IPv6 routing table | 5120 |
| Service port | 20480 |
| ARP table | 8192 |
| ACL rule | 896 |
| Maximum Frame Size | 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
| VRF (L3 VPN) | Supported |
| Operating temperature | -25°C to +65°C |
| Power consumption | Static: 29 W Maximum: 33 W |
| Mechanical Specification | |
| Dimensions(mm) | 233 (W) x 134 (D) x 34 (H) |
| Weight(kg) | 1 |
Product Details:
If you are interested, please let us know the specific model. We will provide the best service and the best price!
