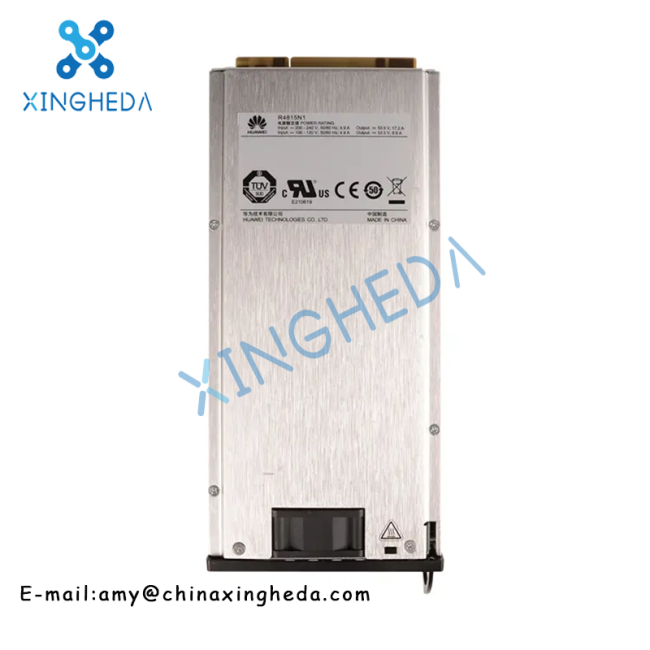

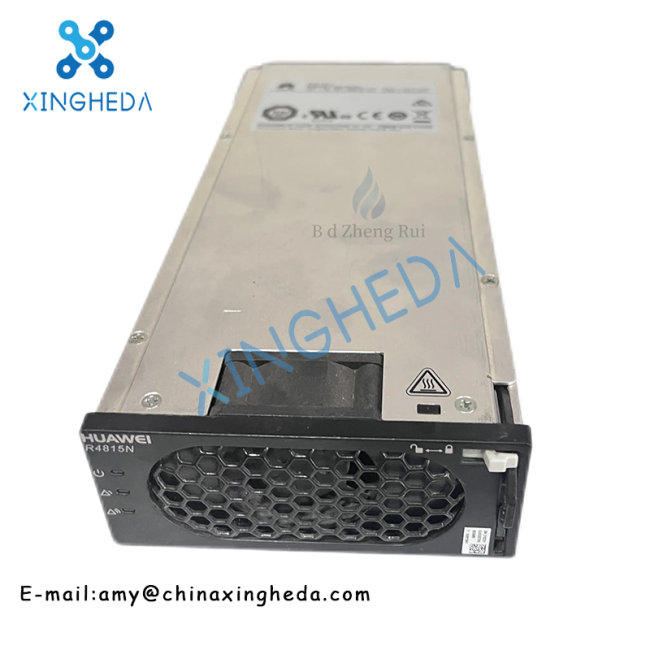

R4815N 15A rectifier.
Apply to ETP4830-A1
Wide range of AC input voltage from 85V to 300V.
Maximum output power: 1000W.
Wide operation temperature range of rectifier from -40℃ to 75℃
High rectifier efficiency over 96% helps to save energy.
Specification:
| Input voltage | 85VAC~300 VAC, rated 220VAC |
| Dimension | 95.5mm(W)×208mm(D)×40.8mm(1U, H) |
| Weight | ≤1.5kg |
| Cooling mode | Forced cooling |
| Power factor | ≥0.99 |
| THD | ≤5% |
