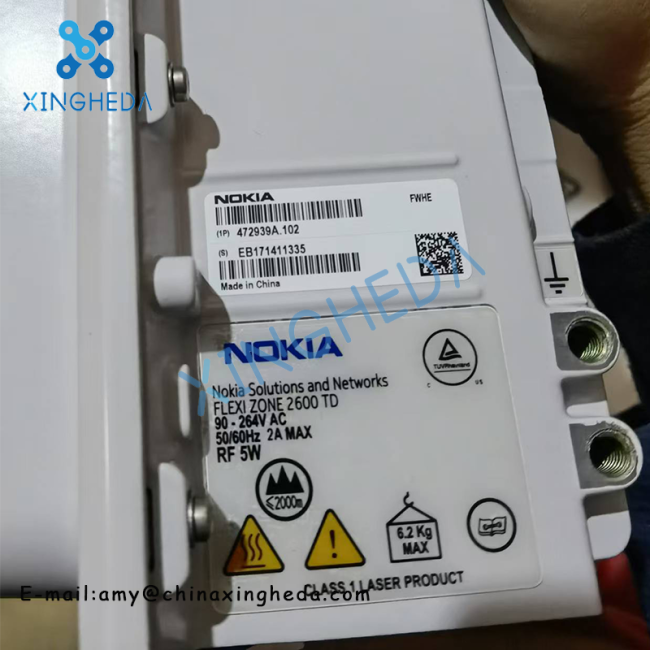

NOKIA FWHE 472939A LTE1729 D-LTE Micro BTS Unit

Price Negotiable

Price: Negotiable

MOQ: 1pc

Delivery Time: 3-7 work days

Brand: NOKIA

Product Description

NOKIA FWHE 472939A LTE1729 D-LTE Micro BTS Unit

Product Description:

1. Appearance and Dimensions

Variant

Dimensions

Band

Power

Integrated antenna

Integrated Wi- Fi

FWHE LTE1729 472939A

H: 247 mm (9.72 in.)

W: 327 mm (12.87 in.)

D: 120 mm (4.72 in.)

W: 6.2 kg (13.66 lb)

V: 7.2 L

Band 41

2575–2635 MHz

Band 38

2575–2620 MHz

Bandwidths: 10, 20 MHz

Carriers: 2

Antenna output: 2 x 5 W

0.25, 0.315, 0.4,

0.5, 0.63, 0.8, 1,

1.2, 1.6, 2, 2.5,

3, 4, 5 W

Device input: 90–264 Vac

Directional: FAWJ

2. Interface Types

RF Transceiver Ports: 2 x N-type female connectors for antenna connection, enabling signal transmission and reception.
LED Indicators: Including Status, Backhaul, TXStick, etc., to display device working status, backhaul link status, and facilitate maintenance and fault diagnosis.
AC Power Input: For connecting to AC power supply.
Backhaul Interfaces:
- Optical port (SFP): Enables high-speed data backhaul via fiber for stable and reliable transmission.
- Electrical port (RJ45): Supports 100/1000Base-T Ethernet for backup backhaul or local maintenance.
GPS Interface: Connects to GPS antenna for precise time and location synchronization of the base station.
Grounding Points: Dual-hole design for grounding cables to ensure equipment safety and prevent damage from lightning or static electricity.

3. Technical Specifications

Operating Frequency Band: 2600MHz (Band 41), filter bandwidth 2575–2635MHz. Supports 2T/2R MIMO technology to enhance system capacity and spectral efficiency.
Heat Dissipation: Uses heat sinks to ensure stable operation in different environments and prevent overheating.
Output Power: 2*(250mW–5W), adjustable for coverage needs to optimize energy efficiency.
Working Bandwidth: Up to 40MHz, supporting high-speed data services.
Antenna Type: Integrated Directional Panel Antenna with good directivity and gain for extended coverage.
Antenna Connection: N-type interface for reliable signal transmission.
Local Maintenance Interfaces:
- Bluetooth: Enables mobile terminal configuration and management.
- RJ45: For connecting to computers for complex maintenance.
Synchronization Modes: Supports RF GPS and 1588v2 (time, phase) for network-wide timing and phase synchronization.
Transmission Interfaces: RJ45 Ethernet + SFP-based Fiber, supporting 100/1000Base-T or fiber for high-speed data transmission.
Spurious Emission: Complies with TS36.104 Rev 11 Medium Area standard to minimize interference.
Operating Temperature: -40°C to +55°C, suitable for extreme climates.
Protection Level: IP65, dustproof and waterproof for outdoor use.

4. Product Features

User Capacity and Performance: Supports 600 active users, equivalent to one sector of a macro base station, meeting hotspot coverage demands.
Smart Scheduler Algorithm: Adopts advanced dynamic resource allocation based on user distribution and service types to optimize user experience.
Future Evolution: Aligned with LTE-A and other future roadmaps, enabling smooth upgrade to "Zone" capabilities for hotspot clusters to protect investments.
Cascading Function: Multiple FWHE units can be cascaded (up to 1000m transmission distance), saving backhaul interfaces and ensuring seamless handover between micro and macro stations.
