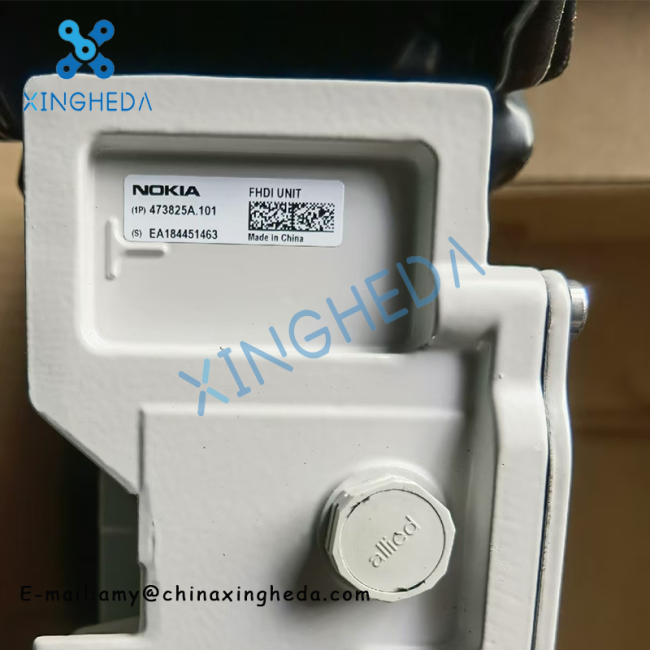

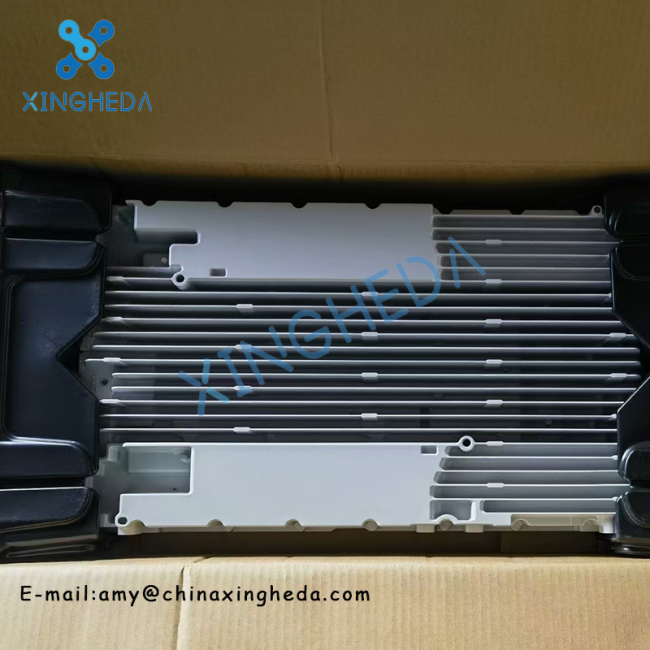

Nokia FHDI 473825A RRH 2T2R 900MHz 120w AirScale
Nokia FHDI 473825A RRH 2T2R 900MHz 120w AirScale
Product Description:
Functional:|
Property |
Value |
|
Output power |
2 x60 W |
|
QAM modulation |
256 QAM (DL ) 64 QAM (UL ) |
|
Number of TXRX |
2 T2R |
|
Outdoor installation |
Yes |
|
Beamforming |
No |
|
SW supported technology |
GSM, WCDMA, FDD-LTE |
|
TX frequency range |
935 - 960 MHz |
FHDI functional specification:
|
Property |
Value |
|
RX frequency range |
890 - 915 MHz |
|
DL instantaneous bandwidth |
25 MHz |
|
UL instantaneous bandwidth |
25 MHz |
|
DL filter bandwidth |
25 MHz |
|
UL filter bandwidth |
25 MHz |
|
Number of carriers per pipe |
Up to 5 |
|
Supported bandwidths |
1.4 , 3, 5, 10, 15, 20 MHz |
FHDI interfaces:
|
Interface |
Label on the HW |
Number of interfaces |
Connector type |
Additional info |
|
Power Connector |
DC IN |
1 |
3- pole screw terminal |
|
|
Antenna connector |
ANT |
2 |
4.3-10 |
|
|
Remote Electrical Tilt |
RET |
1 |
8-pin circular |
RS-485 |
|
External Alarm Connection |
EAC |
1 |
USB 3.0 Type A |
|
|
Optical interface |
OPT |
2 |
SFP+ |
6 Gbps, OBSAI |
|
Grounding |
|
1 |
M8 or dual M5 screws |
- |
|
Fan |
Fan |
1 |
2- pin Micro-Fit |
|
Product Details:
