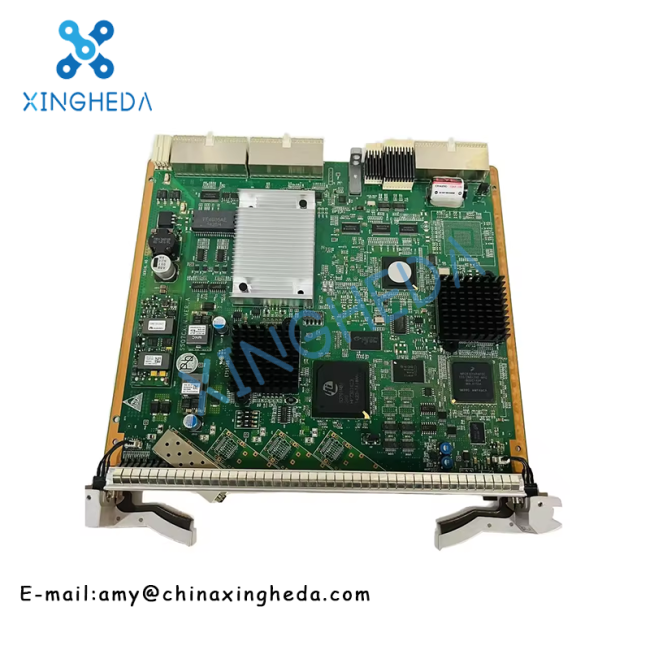

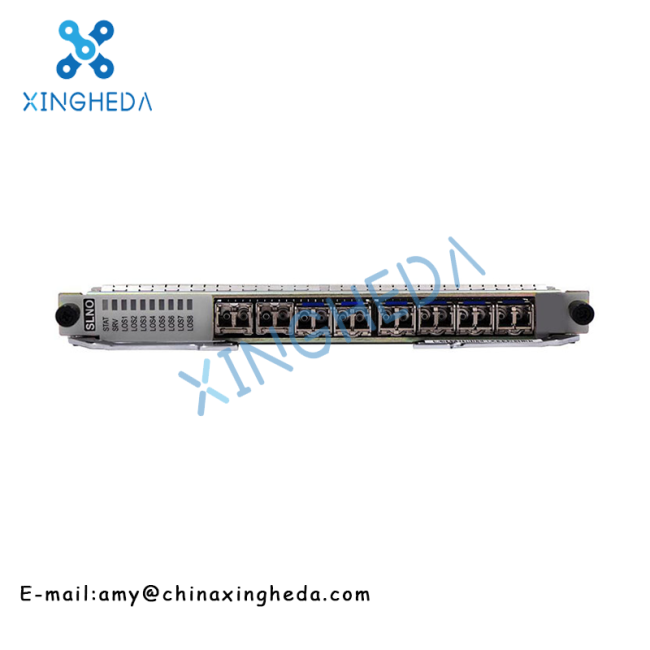

Huawei TNF8SLNO OSN18004*STM-16 8*STM-4 8*STM-1 line board
Price:
Negotiable
MOQ:
1pc
Delivery Time:
3-7 work days
Brand:
HUAWEI
Product Description
Huawei TNF8SLNO OSN18004*STM-16 8*STM-4 8*STM-1 line board
Product Description:
TNF8SLNO is an SDH board used to receive and transmit 8 channels of STM-4/STM-1 optical signals, or 4 channels of STM-16 optical signals, or 2 channels of STM-16 optical signals plus 4 channels of STM-4/STM-1 optical signals.Through this board, the SLNO converts the received optical signals into electrical signals (O/E conversion) and sends them to the cross-connect side. Meanwhile, electrical signals from the cross-connect side are converted into optical signals (E/O conversion) and transmitted outward.
| Functions and Features | Description |
|---|---|
| Basic Functions | Receives and transmits 8 channels of STM-4/STM-1 optical signals, or 4 channels of STM-16 optical signals, or 2 channels of STM-16 optical signals plus 4 channels of STM-4/STM-1 optical signals. |
| Interface Specifications | Grey Optical Interfaces
|
| Outband DCN | Supported |
| ALS | Supported (compliant with ITU-T G.664) |
| Service Processing | Supports VC-12/VC-3/VC-4 and concatenated services of VC-4-4c/VC-4-16c. |
| Overhead Processing | 1. Processes section overhead of STM-1/STM-4/STM-16 signals.
|
| Pointer Processing | AU pointer processing |
| Alarms and Performance | Provides abundant alarms and performance events for convenient equipment management and maintenance. |
| Protection Schemes | 1. Supports 2-fiber bidirectional multiplex section ring protection.
|
| Line Clock Source | Supports 8 SDH line clocks. |
| Physical Layer Clock | Supported |
| Maintenance Features | 1. Supports internal and external loopback at optical port level.
|
| SDH ASON | Supported when used with TNZ5UXCMS/TNZ5XCS main control boards. |
| 2M ASON | Supported when used with TNZ5UXCMS/TNZ5XCS main control boards. |
Product Details:
If you are interested, please let us know the specific model. We will provide the best service and the best price!
