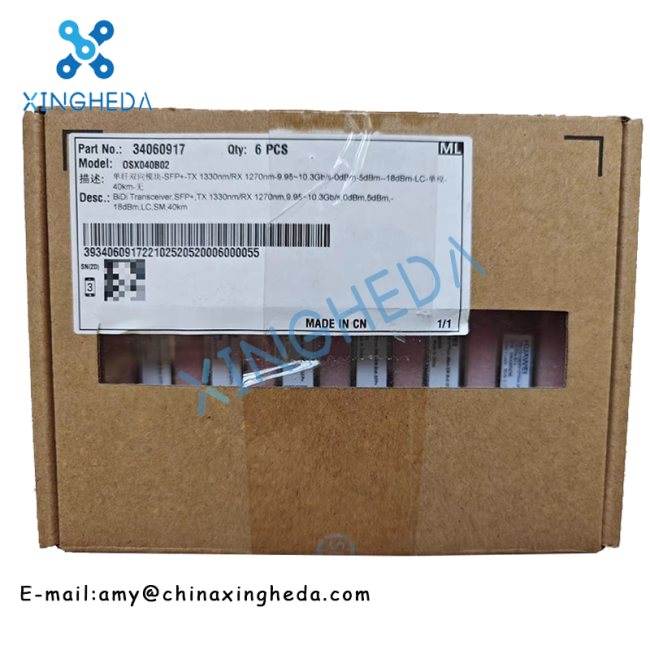

The Huawei 34060917 (OSX040B08) is a high-performance 10G SFP+ BiDi (Bidirectional) optical transceiver designed for long-haul single-fiber transmission. Operating at a bidirectional wavelength pair of 1330nm for transmission and 1270nm for reception, this module enables full-duplex communication over a single strand of single-mode fiber (SMF), effectively doubling fiber utilization and reducing infrastructure costs compared to traditional dual-fiber designs. With a transmission distance of up to 40 kilometers, it is an ideal solution for metropolitan area networks, data center interconnects, and long-haul telecommunications where fiber resources are limited.

• Single‑Fiber Bidirectional Technology: The 34060917 utilizes a BiDi architecture, allowing simultaneous transmission and reception over a single fiber strand. This design effectively doubles the capacity of existing fiber infrastructure while reducing cabling complexity and installation costs.

• 40km Long‑Distance Transmission: With a transmit optical power range of 0 dBm to 5 dBm and a receiver sensitivity of -18 dBm, this module maintains reliable signal integrity over distances up to 40 kilometers on standard single‑mode fiber (G.652), making it ideal for metropolitan area networks and long‑haul connectivity.

• Hot‑Swappable SFP+ Form Factor: The compact SFP+ footprint supports hot-swapping, enabling module replacement or installation without rebooting network equipment, minimizing downtime during maintenance or network upgrades.

• Digital Optical Monitoring (DOM) Support: Integrated DOM provides real‑time access to critical operating parameters including temperature, supply voltage, bias current, transmit optical power, and receive optical power, enabling proactive fault detection and simplified network diagnostics.

• Complementary Pairing Requirement: As a bidirectional module, the 34060917 (1330nm Tx / 1270nm Rx) must be used with a complementary BiDi module at the opposite end of the link – specifically, the Huawei 34060918 (1270nm Tx / 1330nm Rx). Using identical wavelength modules at both ends will cause link failure.

• Full Duplex Communication: The module operates in full‑duplex mode with separate transmit and receive wavelengths, preventing signal interference while allowing simultaneous bidirectional data flow.

If you are interested, please let us know the specific model. We will provide the best service and the best price!
