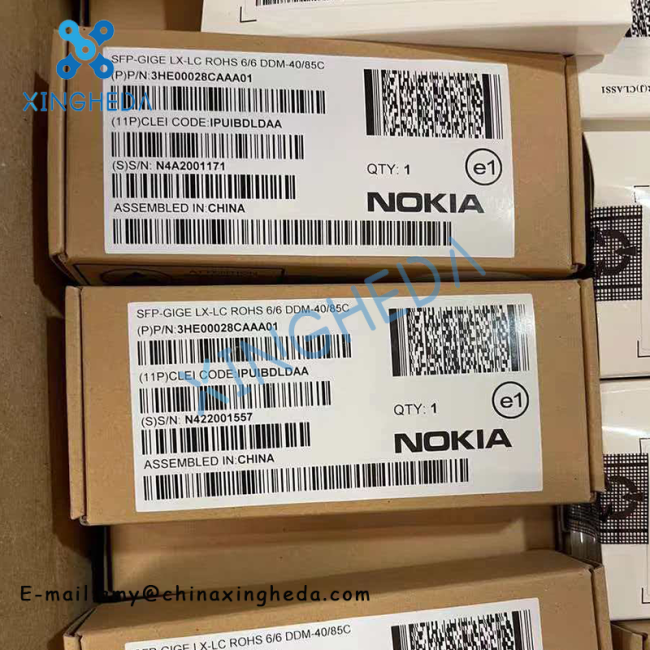

NOKIA 3HE00028CAAA01 SFP-GIGE-LX-LC ROHS 6/6 DDM-40/85C transceiver
The Nokia 3HE00028CAAA01 SFP-GIGE-LX-LC (also known as Alcatel-Lucent 3HE00028CA) is a high-performance industrial-grade 1000Base-LX Small Form-Factor Pluggable (SFP) transceiver. Designed for carrier-grade Gigabit Ethernet networks, it provides reliable long-distance fiber connectivity over single-mode fiber (SMF). This module is engineered to meet the demanding requirements of telecom and enterprise environments requiring stable 7×24-hour continuous operation, making it an essential component for Nokia/Alcatel-Lucent network equipment including the 7750 SR series routers, 7360 ISAM series OLTs, and other platforms.
| Parameter | Specification |
|---|---|
| Manufacturer | Alcatel-Lucent / Nokia |
| Part Number | 3HE00028CAAA01 / 3HE00028CA |
| Form Factor | SFP (Small Form-Factor Pluggable) |
| Interface | 1000Base-LX (Gigabit Ethernet) |
| Data Rate | 1.25 Gbps (full‑duplex) |
| Wavelength | 1310 nm |
| Fiber Type | Single-Mode Fiber (9/125 µm) |
| Maximum Distance | 10 km |
| Connector Type | LC Duplex |
| Transmit Power (Tx) | -9 dBm to -3 dBm (FP Laser) |
| Receiver Sensitivity | < -22 dBm (PIN photodiode) |
| Receiver Overload | > 0 dBm |
| Extinction Ratio | > 9 dB |
| Average Link Budget | 13 dB |
| Operating Temperature | -40°C to +85°C (industrial grade) |
| Storage Temperature | -40°C to +85°C |
| Supply Voltage | 3.3V single power supply |
| Digital Diagnostic Monitoring (DDM/DOM) | Supported |
| Weight | ~25 g |
| Compliance Standards | IEEE 802.3ab (1000BASE-LX), SFP MSA (INF‑8074i), RoHS 6/6, CE, TAA, Class 1 FDA, IEC 60825-1 Laser Safety, EN 61000‑4‑2 |
- 1000BASE‑LX Standard Compliance: Fully compliant with IEEE 802.3ab Gigabit Ethernet standards, ensuring broad interoperability.
- Extended Industrial Temperature Range: Unlike standard 0°C–70°C commercial modules, the 3HE00028CAAA01 variant supports -40°C to +85°C operation, making it suitable for deployment in outdoor cabinets, industrial sites, and thermally demanding environments.
- Long-Haul Transmission: Supports 10km transmission distance over single-mode fiber (9/125 µm) using the 1310nm wavelength.
- Digital Diagnostic Monitoring (DDM/DOM): Integrated DOM provides real-time access to critical operating parameters (temperature, supply voltage, bias current, Tx/Rx power) for proactive network maintenance.
- Hot-Swappable & Easy Installation: Standard SFP form factor supports plug‑and‑play installation without system reboot.
- Class 1 Laser Safety: Complies with international laser safety standards (IEC 60825-1, FDA 21CFR 1040.10/1040.11) for safe long-term deployment.
- Environmental Compliance: RoHS 6/6 compliant, meeting global environmental regulations.
- Trade Agreements Act (TAA) Compliance: Eligible for US government procurement programs.
- Carrier-Grade Reliability: Built for 7×24-hour continuous operation in telecom and enterprise network environments
