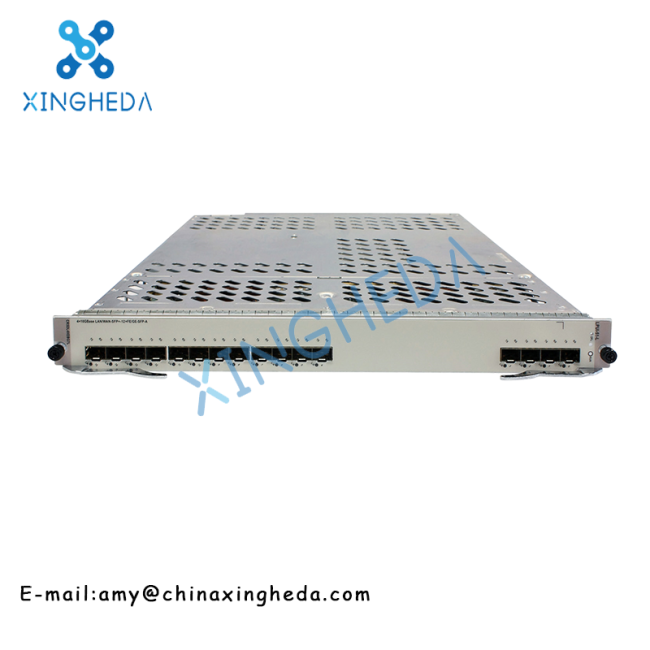

Huawei CR5DL4XEBG7L LPUI-51-L Integrated Line Processing Unit
The Huawei CR5DL4XEBG7L (Product Code: 03055716) is a high-performance integrated line processing unit designed for Huawei‘s NetEngine 40E series universal service routers . It is also known as the LPUI-51-L (Line Processing Unit Integrated-51-L) .
As an integrated line card, the CR5DL4XEBG7L combines multiple interface types on a single board, providing both high-speed 10G connectivity and dense Gigabit Ethernet access for carrier and enterprise networks. It is ideal for IP backbone edge, metropolitan area network (MAN) aggregation, and data centre interconnect (DCI) deployments . The board supports 50 Gbps line-rate forwarding and is designed for Huawei‘s NE40E-X3, NE40E-X8, and NE40E-X16 chassis, including their “A” series variants .
| Feature | Description |
|---|---|
| High-Density Interface Configuration | 4×10GBase LAN/WAN-SFP+ ports + 12×100/1000Base-X-SFP ports |
| Integrated Design | Combines 10G uplink and GE access on a single card, maximising slot efficiency |
| Line-Rate Forwarding | 50 Gbps full‑duplex line‑rate forwarding capability |
| Flexible 10G Mode Support | 10G interfaces 0–3 support both LAN and WAN modes |
| Hot‑Swappable | Supports board replacement without chassis power‑down |
| Comprehensive Protocol Support | IPv4/IPv6 dual‑stack, MPLS, SR/SRv6, QoS, ACL, NetStream traffic analysis |
| High‑Reliability Design | Hardware‑level redundancy with second‑level failover |
| Visual Operation & Maintenance | Telemetry real‑time monitoring and NetStream traffic analysis |
| Parameter | Specification |
|---|---|
| Manufacturer | Huawei |
| Model | CR5DL4XEBG7L |
| Product Code | 03055716 |
| Board Name (Silkscreen) | LPUI-51-L |
| Description | 4‑Port 10GBase LAN/WAN‑SFP+ + 12‑Port 100/1000Base‑X‑SFP Integrated Line Processing Unit L |
| Compatible Platforms | Huawei NetEngine NE40E‑X3 / X3A, NE40E‑X8 / X8A, NE40E‑X16 / X16A |
| Earliest Software Version | V800R008C10 |
| Net Dimensions (H×W×D) | 40.1 mm × 399.2 mm × 535.6 mm |
| Weight | 5.7 kg (12.57 lb) |
| Typical Power Consumption | 160.0 W – 166.0 W |
| Heat Dissipation | 538.6 BTU/hour |
| Operating Temperature (Long‑term) | 0°C to 45°C |
| Operating Temperature (Short‑term) | -5°C to 55°C |
| Identifier | Description |
|---|---|
| CR5DL4XEBG7L | Model number (front‑panel label) |
| 03055716 | Huawei manufacturing part number |
| LPUI-51-L | Board name / ordering reference |
Compatible Chassis:
- Huawei NetEngine NE40E‑X3 / X3A
- Huawei NetEngine NE40E‑X8 / X8A
- Huawei NetEngine NE40E‑X16 / X16A
- Compatibility Verification: The CR5DL4XEBG7L is specifically designed for Huawei NetEngine 40E series routers. Always verify compatibility with your specific chassis model and software release (V800R008C10 or later) before purchasing .
- WAN Mode Restriction: 10G interfaces 0 to 3 support both LAN and WAN modes. However, interfaces in WAN mode can only function as master interfaces . Also note that 10GE WAN interfaces do not support 1588v2 time synchronisation .
- 1588v2 Support: Huawei documentation lists the CR5DL4XEBG7L as one of the subcards involved in 1588v2 time synchronisation limitations . If deploying PTP/1588v2, please verify specific feature support and restrictions in the applicable configuration guide.
- Hot‑Swap Operation: The board supports hot‑swapping, allowing replacement without chassis power‑down .
- Product Lifecycle: The CR5DL4XEBG7L is an active product within Huawei‘s NetEngine portfolio, supporting current carrier and enterprise network deployments.
- Installation: Professional installation by qualified personnel is recommended to ensure compliance with safety and performance requirements.
