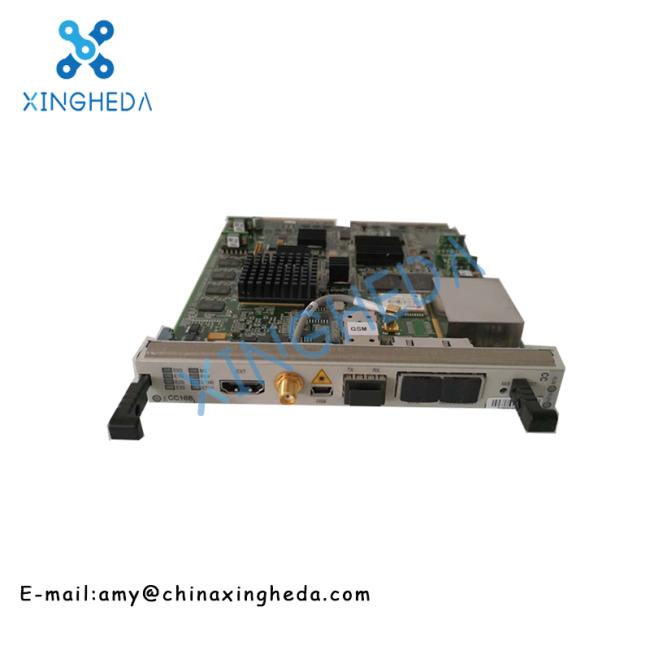

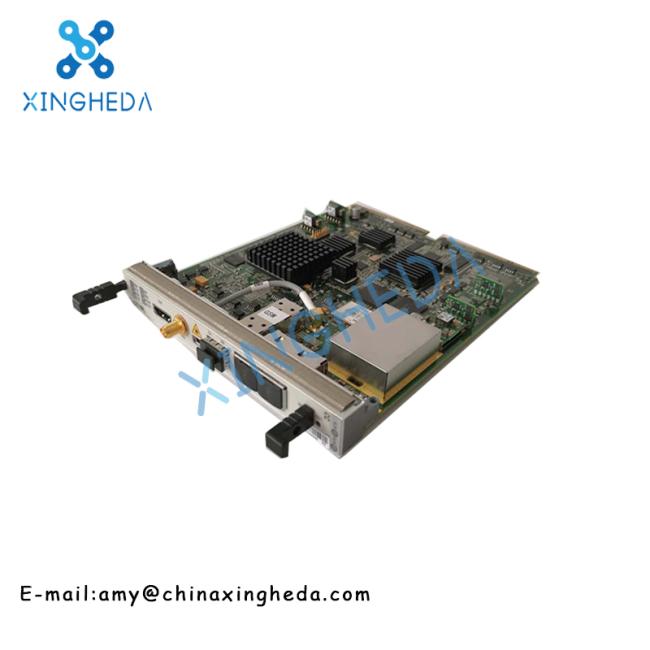

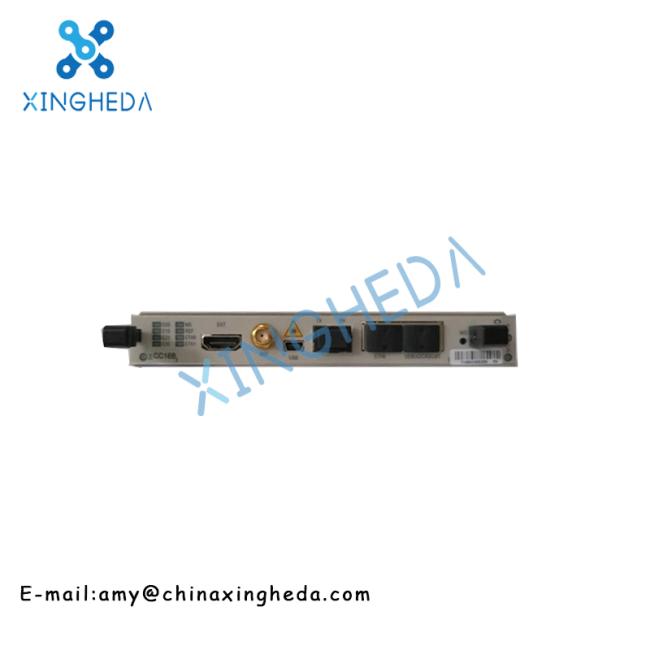

ZTE CC16B ControL Board For ZTE ZXSDR B8200 B8300
ZTE CC16B ControL board for ZTE ZXSDR B8200 B8300

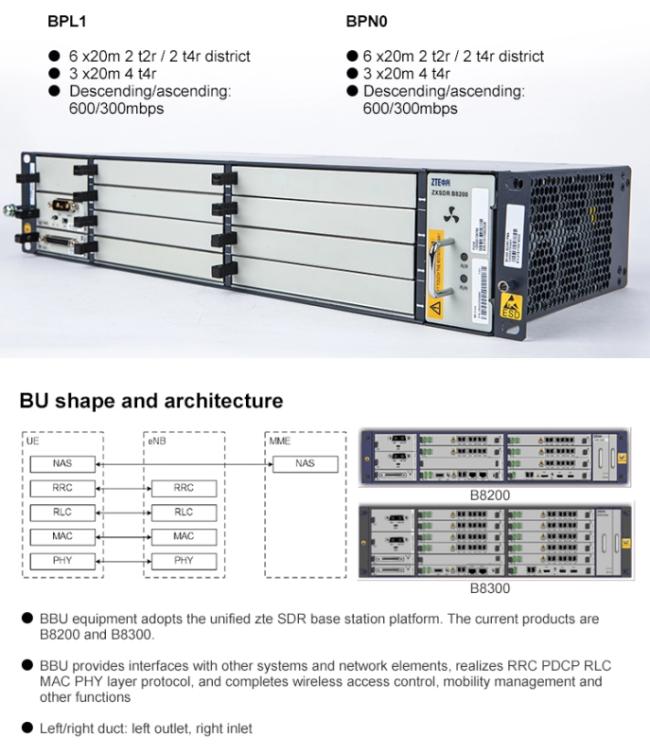

ZXSDR B8200 Large-Capacity Compact BBU
The ZXSDR B8200 is a large-capacity compact Base Band Unit (BBU) with separate baseband and RF based on the mature and stable Software Defined Radio (SDR) platform. ZTE has applied the unified advanced SDR platform to WiMAX, GSM, CDMA, WCDMA and LTE.

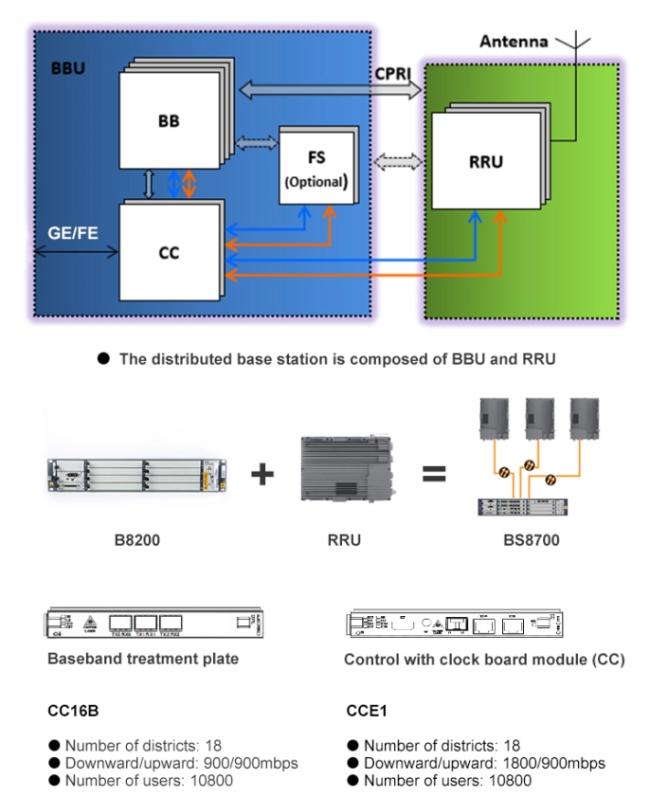

The ZXSDR B8200 and ZTE RRU series constitute a complete TD-LTE eNodeB. Compared with traditional networking solutions, the BBU + RRU networking solution not only avoids the dependence on equipment rooms and reduces the difficulty of deployment, but also effectively accelerates network construction, meeting operators’ requirements for rapid and low-cost network construction.
|
Key Technical Indicators
|
ZXSDR B8200B8300
|
|
Size(mm)
|
88.4 mm x 482.6 mm x 197 mm (HxWxD) 2U 19'
133.3 mm x 482.6 mm x 197 mm (HxWxD) 3U 19'
|
|
Full Weight
|
<9KG
|
|
Power Consumption(W)
|
25℃:550W
|
|
Power Supply
|
-48VDC:-57V～-40V； 220 110100VAC:90 VAC ~ 290 VAC,40Hz~60Hz
|
|
Operating Temperature
|
-10～+55℃
|
|
Operating Humidity
|
5%~ 95%
|
|
Pressure Range
|
70 ~ 106 kPa
|
|
S1 Maximum Number of Interfaces
|
16
|
|
X2 Maximum Number of Interfaces
|
32
|
|
Support Synchronous Mode
|
GPS,IEEE 1588 V2
|
Product Detail:
If you are interested, please let us know the specific model. We will provide the best service and the best price!
