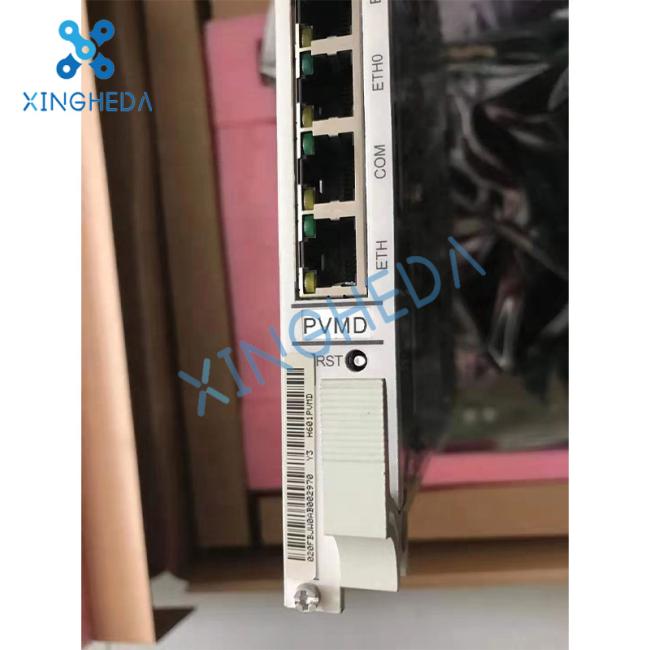

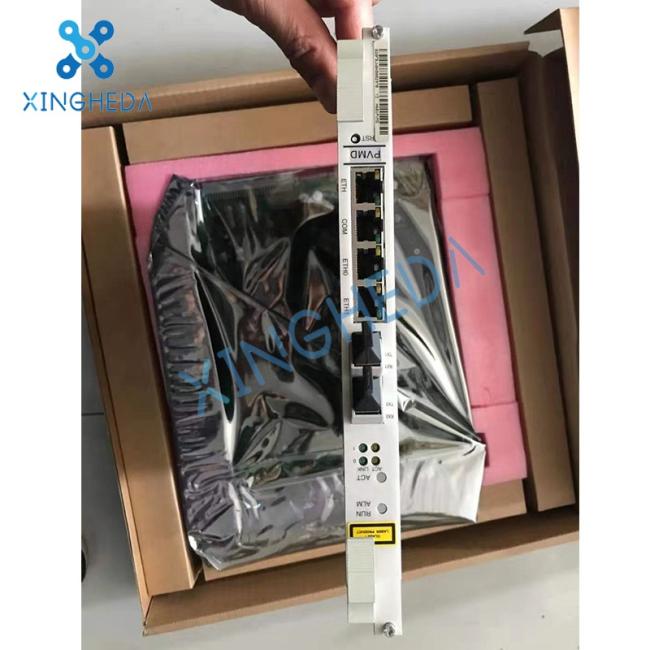

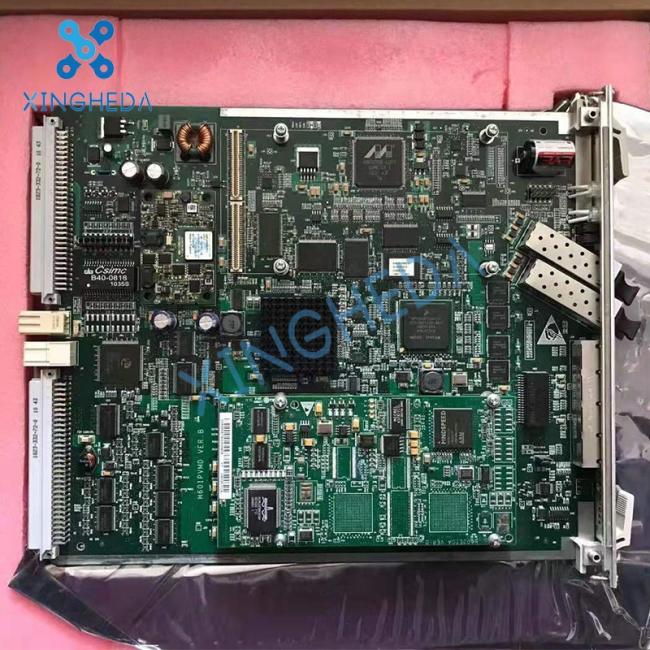

Huawei PVMD H601PVMD For Huawei UA5000
Huawei PVMD H601PVMD for Huawei UA5000
Product Description:
UA5000 Universal Access Unit (UA5000) is an integrated broadband and narrowband access device. It provides quality voice and broadband access services and also comprehensive voice over IP (VoIP) and multimedia access services.
In the fiber to the building (FTTB) or fiber to the curb (FTTC) networking, UA5000 Mini MSAN functions as a multi-dwelling unit (MDU), which works with the optical line terminal (OLT) to provide the XPON upstream service and the xDSL access service.
UA5000 supports multiple types of subracks. Here describes only one type of subrack. For the appearances of other types of subracks, see Introduction to Shelf in the UA5000 Hardware Description.
Cabinet :
| Technical Specification | |||||
| Series Configuration | F01D200 | F01D500 | F01D1000 | F01E200 | F01E400 |
| W×D×H(mm) | 1250×550×1200 | 1550×550×1650 | 1900×550×1650 | 1000×550×1200 | 1000×550×1200 |
| Chassis | 1 HABD |
1 HABD+ 1 HABF |
HABD+ HABF+ HABD |
HABL+ HABM |
HABD |
| POTS | 768 | 1920 | 2688 | 384 | 768 |
| ADSL | 384 | 960 | 1344 | 192 | 384 |
| POTS+ADSL | 384 | 960 | 1344 | 192 | 384 |
Shelf :
| Specification | |
| General Specification | |
| Dimensions (H x W x D) |
HABA: 711 mm x 482 mm x 445 mm HABD: 441.7 mm x 482.6 mm x 370.0 mm HABF: 441.7 mm x 482.6 mm x 370.0 mm HABL: 482.6 mm x 298.8 mm x 358.5 mm HABM: 482.6 mm x 219.5 mm x 365.3 mm |
| Operating Environment |
–45℃ to +50℃ 86 to 106 (kPa) |
| Power |
DC: –48V AC: 220V/110V |
| Network-side Port | GPON/FE/GE/E1 |
| User-side Port |
POTS, ISDN, V.24/V.35, E&M, FXO/FXS, 2 wires/4 wires ADSL/ADSL2+, VDSL, GE |
Product Details:
If you are interested, please let us know the specific model. We will provide the best service and the best price!
