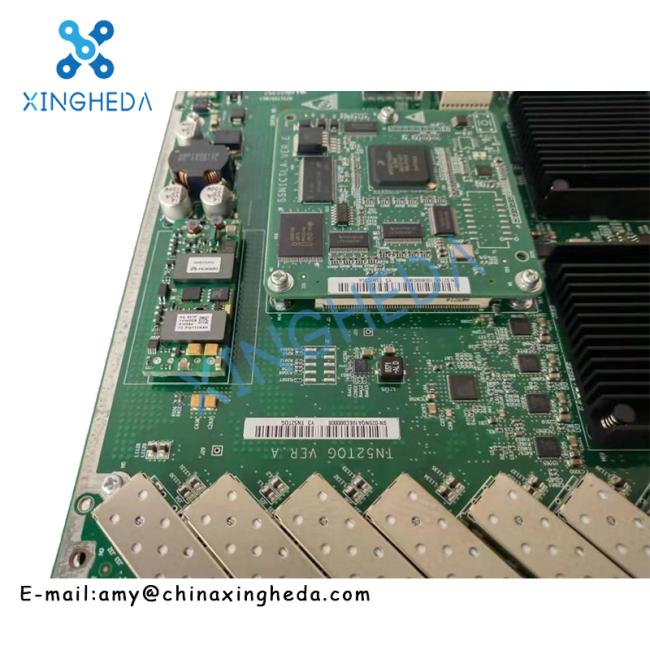

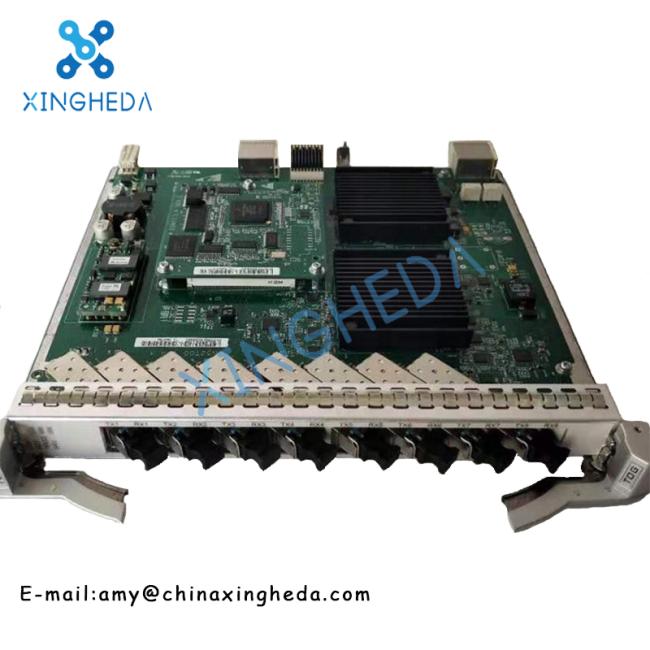

HUAWEI TOG TN52TOG 03030LNA TN52TOG01 WDM OSN6800 OSN8800

Name: HUAWEI TOG TN52TOG 03030LNA TN52TOG01 WDM OSN6800 OSN8800
Brand: Changsha Xingheda Technology Co., Ltd

Price Negotiable

Price: Negotiable

MOQ: 1pc

Delivery Time: 3-7 work days

Brand: HUAWEI

Product Description

HUAWEI TOG TN52TOG 03030LNA TN52TOG01 WDM OSN6800 OSN8800

Product Description:

The TOG board is mainly used to achieve cross-connection at the electrical layer.

For detailed functions and features, refer to Table 1.

NOTE:

Only the OptiX OSN 8800 supports ODU0.

Table 1 Functions and features of the TOG board

Function and Feature	Description
Basic function	TOG converts signals as follows: 8 x GE<->8 x ODU0 8 x GE<->4 x ODU1
Client-side service type	GE: Ethernet service at a rate of 1.25 Gbit/s. Supports GE optical signals and GE electrical signals. NOTE: The TOG board supports GE optical signals and electrical signals. For GE electrical signal transmission, it is recommended that the board be equipped with at most two GE electrical modules to facilitate fiber routing.
Cross-connect capabilities	OptiX OSN 8800: Supports the cross-connection of eight channels of ODU0 signals between the TOG board and the cross-connect board through the backplane. OptiX OSN 6800: Supports the cross-connection of four channels of ODU1 signals between the TOG board and the cross-connect board through the backplane. OptiX OSN 3800: Supports the grooming of four ODU1 signals from one board of the mesh group (consisting of four boards) to the other three boards belonging to the mesh group.
OTN function	Supports the OTN frame format and overhead processing defined in the ITU-T G.709. The mapping process is compliant with ITU-T G.709. Supports PM functions for ODU1/ODU0.
Alarms and performance events monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors OTN alarms and performance events. Monitors parameters such as the bias current, temperature, and optical power of the laser. Supports the remote monitoring (RMON) of Ethernet services. NOTE: The TOG board supports remote monitoring (RMON) only at the receive end .
ALS function	Supports the ALS function on the client side.
PRBS test function	Not supported.
LPT function	Supported
Test frame	Not supported.
Latency measurement	Not supported
IEEE 1588v2	Supports the TC, TC+OC, BC, and OC modes when the client service is GE multiplexed using the GFP-T procedure (the service type is displayed as GE(GFP-T) on the U2000). NOTE: The TOG board supports only two channels IEEE 1588v2 signals.
Physical clock	When receiving GE(GFP-T) services on the client side, the board can support synchronous Ethernet processing instead of synchronous Ethernet transparent transmission. When receiving GE(TTT-GMP) services on the client side, the board can support synchronous Ethernet transparent transmission instead of synchronous Ethernet processing.
Electrical-layer ASON	Supported
Protection scheme	Supports ODUk SNCP. Supports client 1+1 protection.
Ethernet service mapping mode	Supports encapsulation of GE services in GE(GFP-T) or GE(TTT-GMP).
Ethernet port working mode	1000M Full-Duplex
Loopback	WDM side		-
	Client side	Inloop	Supported
	Client side	Outloop	Supported
Protocols or standards compliance	Protocols or standards for transparent transmission (non-performance monitoring)	IEEE 802.3z
Protocols or standards compliance	Protocols or standards for service processing (performance monitoring)	ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.873.1 ITU-T G.694.1
