Huawei EPFD HUAWEI OLT 16 Ports EPON Card For Huawei MA5680 Series
Huawei EPFD HUAWEI OLT 16 ports EPON Card for Huawei MA5680 series
Product Description:

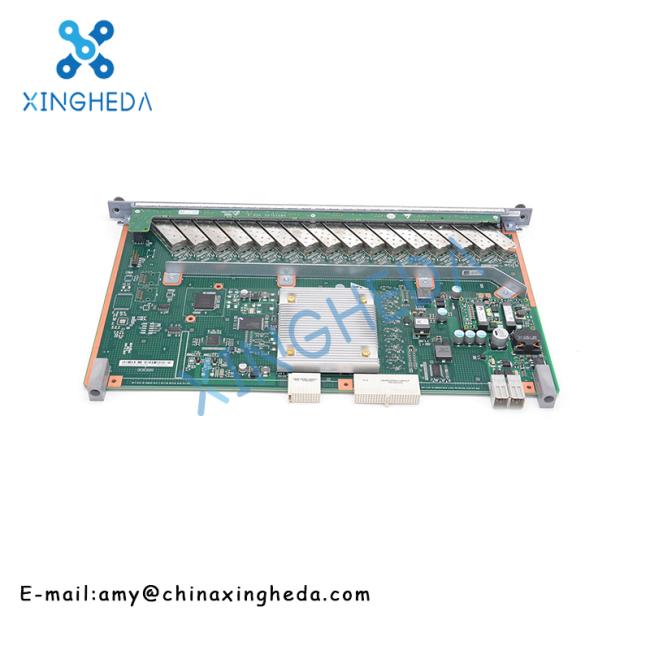

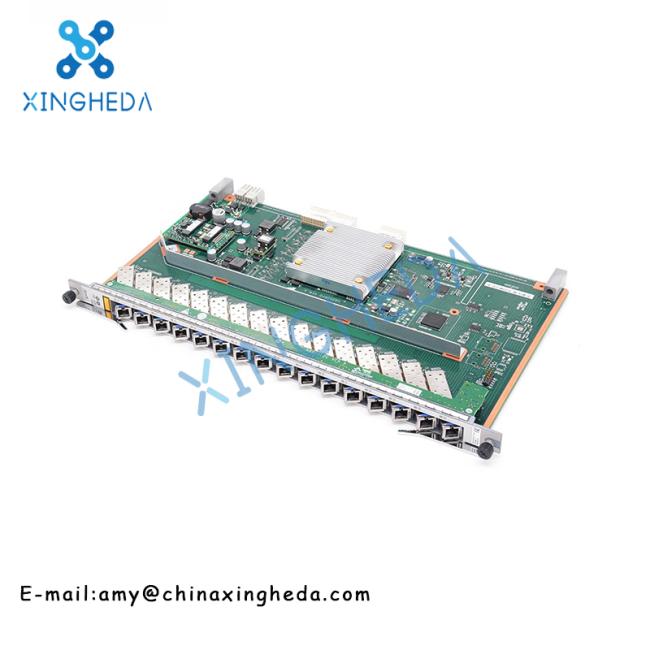

EPFD single board is a 16-port EPON OLT interface board,which cooperates with ONU to realize EPON access service.
Product Features:
High Density,energy Saving,low power consumption,support 2048 access users
Manual shutdown of idle PON port to avoid power waste
Supporting the maximum distance difference between two ONUs and PON ports under the same PON port 20 km,simplified network planning
Intelligent Management Channel
Level 4 HQoS to Improve User Experience
9216 Jumbo frame,greatly improving transmission efficiency
Easy to operate and maintain
Real-time hooligans ONU detection and isolation to ensure stable operation of business
Variable Length OMCI to Improve Upgrade Efficiency and Shorten Business Interruption Time
1:64 eOTDR,Accurate Fault Responsibility Division and Fast Fault Location
| Specification | EPFD |
| Port quantity | 16 |
| MAX Split ratio | 1: 64 |
| Forwarding Rate | 20Gbit/s |
| Maximum Number of Service Flows Supported by the Board | 16368 |
| Maximum frame length | 1996 bytes |
| Maximum Number of MAC | 32768 |
| Maximum differential fibre distance (km) | 20 |
| Board supporting downstream FEC | Yes |
| Board supporting upstream FEC | Yes |
| IPv6 | Yes |
| Temperature query and high temperature alarm | Yes |
| Automatic power shutdown in case of a high temperature | Yes |
| Rogue ONT detection | Yes |
| ONU CAR | Yes |
| High temperature automatic concern | Yes |
| Rogue ONT Detection and Isolation Support | Yes |
| Working temperature | -40℃~+65℃ |
| Maximum Power waste | 62w |
| Dimensions (W x D x H) | 490 mm x 325mm x 75mm |
Product Details:
If you are interested, please let us know the specific model. We will provide the best service and the best price!
