Huawei GPSF 02311FGC H901GPSF MA5800 Series 16-Port GPON OLT Interface Board
Price:
Negotiable
MOQ:
1pc
Delivery Time:
3-7 work days
Brand:
Huawei
Product Description

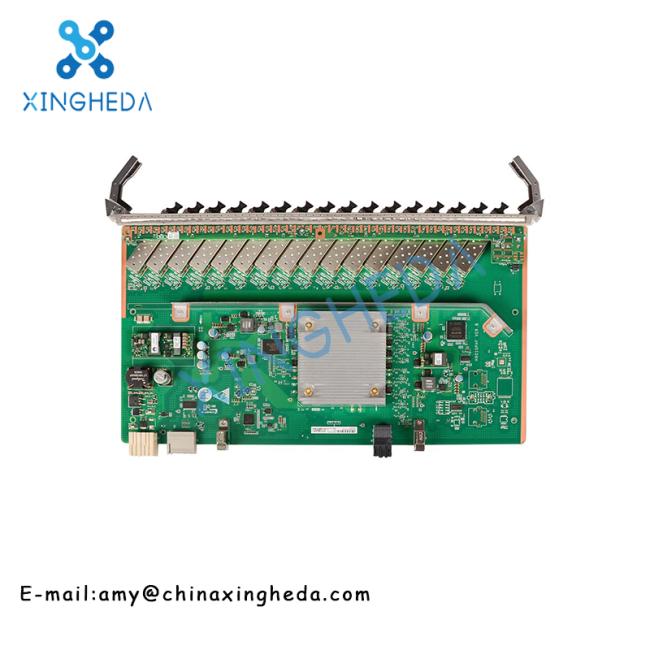

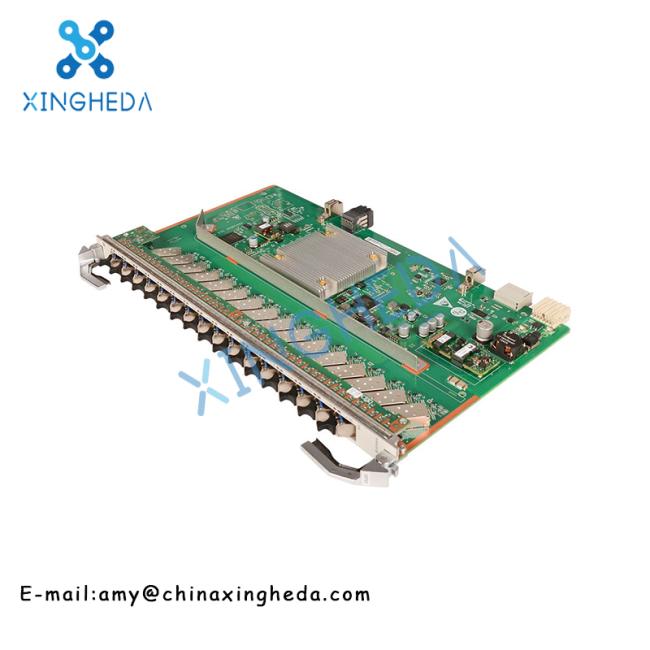

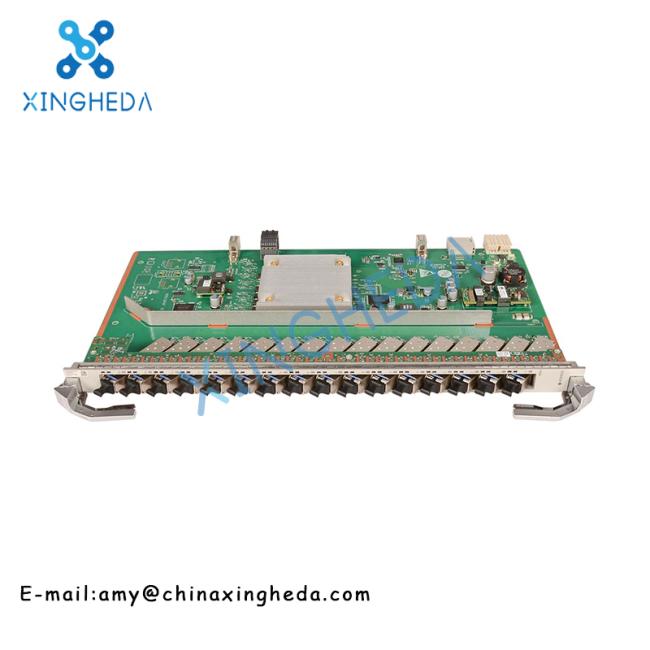

Huawei GPSF 02311FGC H901GPSF MA5800 series 16-port GPON OLT interface board
Product Description:
Huawei GPSF apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system
Support split ration 1:128
Transmit Speed: 2.49Gbit/s, Receive Speed: 1.24Gbit/s
Interface Type: SC/PC
Max Transmit Distance: 20KM
Transmit Wavelength: 1490nm, Receive Wavelength: 1310nm
Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4
C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm
Product Specification:
| Service ports | |
| GPON Port | 16-GPON Port |
| GPON SFP Module Specification | |
| Type | C+ Module : One-fiber bi-directional optical module, class C+ |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate | Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s |
| Minimun Output Optical Power | C+ Module : 3.00 dBm |
| Maximum Output Optical Power | C+ Module : 7.00 dBm |
| Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Reach | 20.00 km |
| Overload Optical Power | C+ Module : -12.0 dBm |
| Extinction Ratio | 8.2 dB |
| Device Specifications | |
| Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
| Power Consumption and Maximum Frame Size | |
| Power Consumption | Static: 25W; Maximum:50W |
| Maximum Frame Size | 2004 bytes 9216 bytes (jumbo frame enabled) |
| Operating temperature | -40°C to +65°C |
Product Details:
If you are interested, please let us know the specific model. We will provide the best service and the best price!
