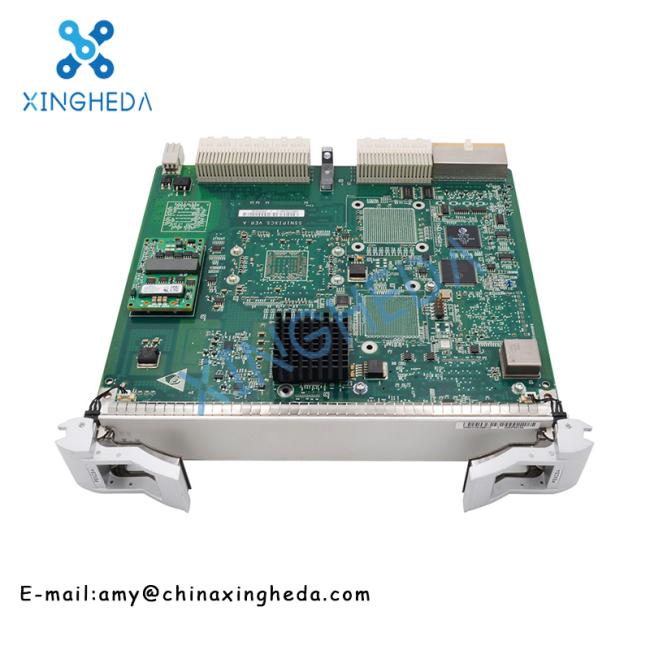

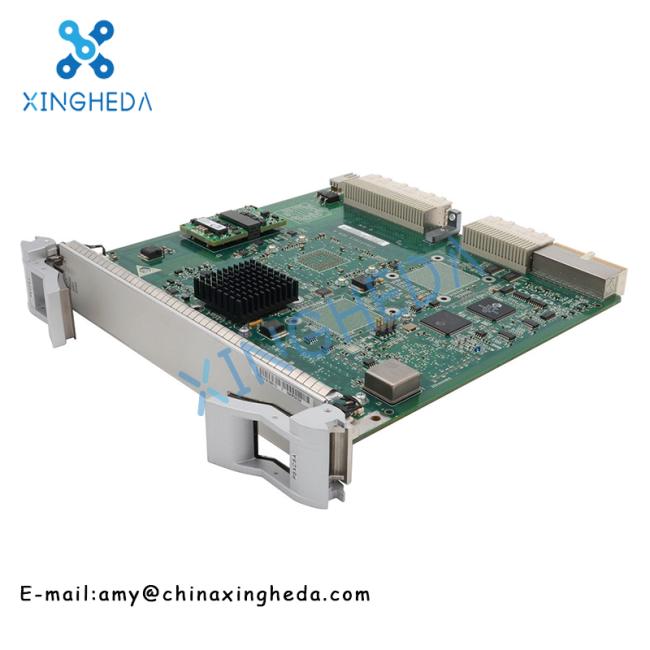

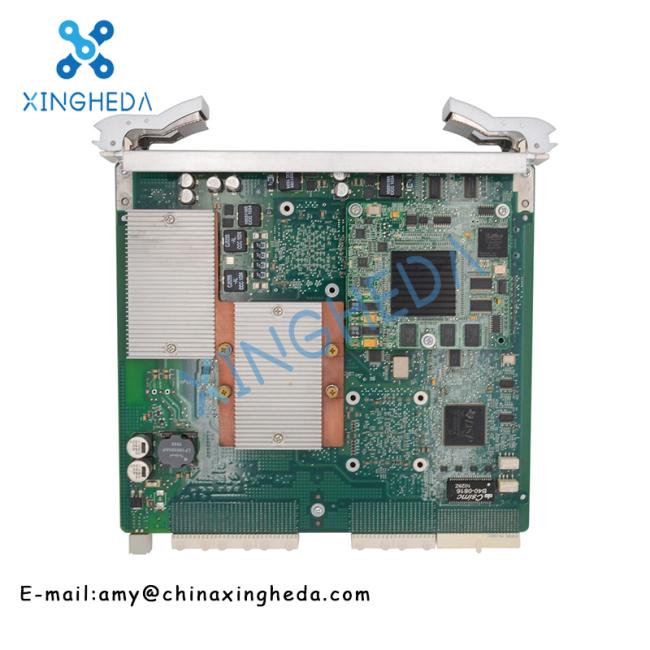

HUAWEI PSXCSA SSN2PSXCSA 03020QCD Huawei OSN3500 Super Dual Plane Board
HUAWEI PSXCSA SSN2PSXCSA 03020QCD Huawei OSN3500 Super dual-plane board
Product Desription:
OSN 3500-200G TDM and 100G Packet Switching and Synchronous Timing Board.
* Higher order cross-connect capacity: 200 Gbit/s
* Lower order cross-connect capacity: 20 Gbit/s
* Access capacity: 155 Gbit/s.
* Supports the SNCP protection at the VC-4-4c, VC-4-8c, VC-4-16c, VC-4-64c, VC-4, VC-12, VC-3, and AU-3 levels.
* Supports VC-4-4c, VC-4-8c, VC-4-16c, and VC-4-64c concatenation services.
* Supports a maximum of 40 linear MSP protection groups.
* Supports a maximum of 12 ring MSP protection groups.
* Supports a maximum of 8904 SNCP pairs.
* Supports the standard system synchronization clock.
* Supports the processing of the S1 byte to realize the clock protection switching.
* Supports the extraction, insertion, and management of the SSM and clock ID.
* Supports the 1+1 hot standby. The default protection mode is the non-revertive switching mode.
PSXCSA is a Super dual-plane Cross-Connect board for HW OSN3500, provide 200G High order, 20G Low order Cross-Connect capacity and 155G Access capacity. PSXCSA have N2 and N3 version.
Specification:
| Dimensions (mm) | 40.0 (W) x 235.2 (D) x 261.4 (H) |
| Weight(kg) | 1.2 |
| Cross ability |
High-order crossover capability: 200Gbit/s Low-order crossover capability: 20Gbit/s Access capacity: 155Gbit/s |
| Clock access capability |
External input clock: 2 channels 2048kbit/s or 2048kHz External output clock: 2 channels 2048kbit/s or 2048kHz |
| Working environment: | The maximum power consumption is 80W at a normal temperature of 25 degrees |
