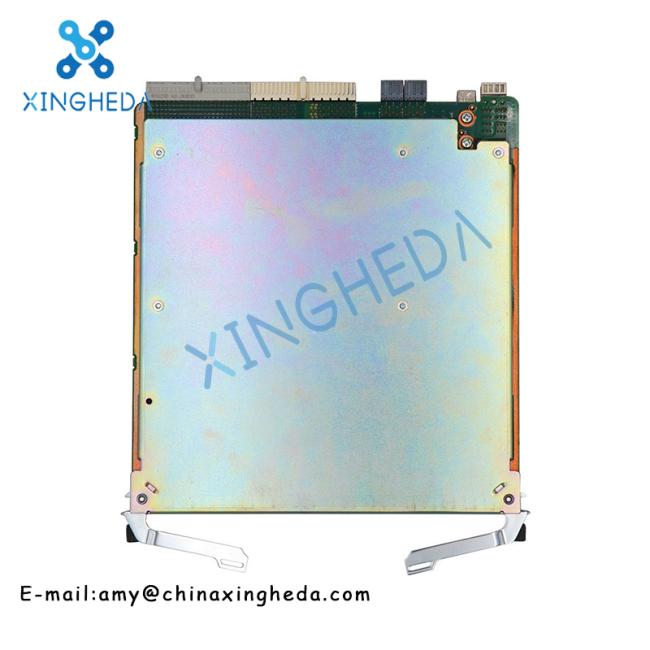

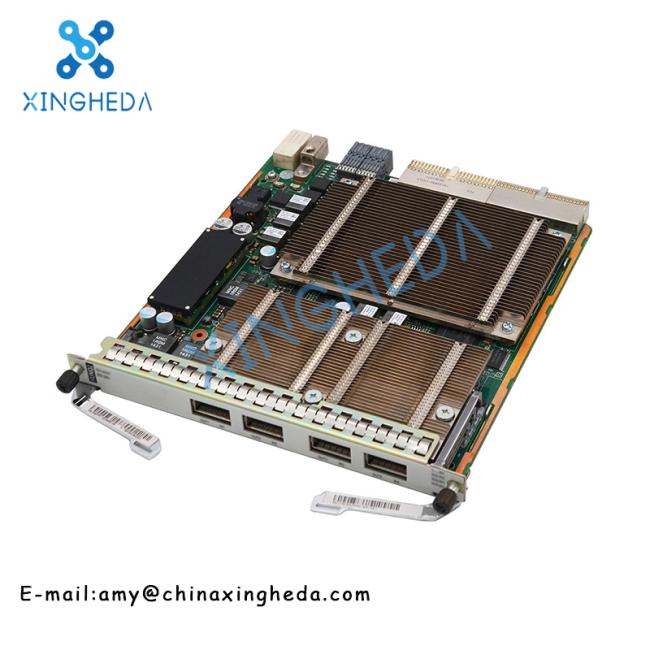

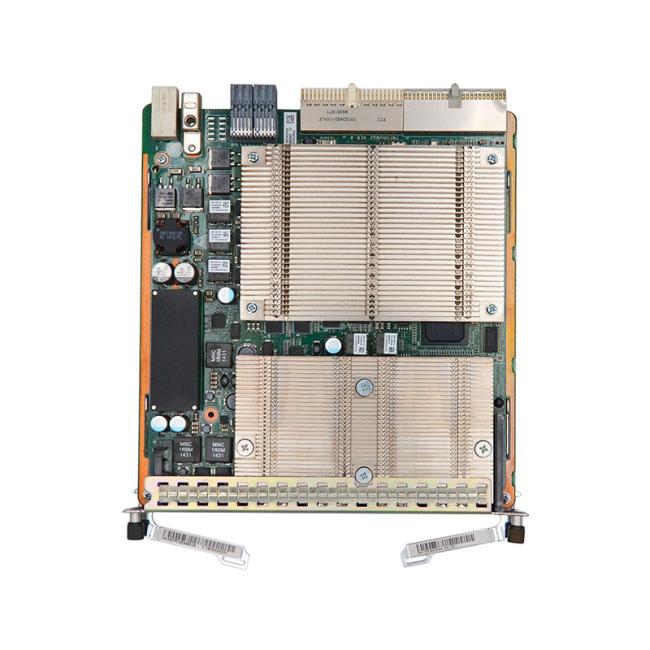

HUAWEI HUNQ2 TNF5HUNQ201 030TPC10 Huawei OSN 1800V 4-Ports 10G Processing Board

HUAWEI HUNQ2 TNF5HUNQ201 030TPC10 Huawei OSN 1800V 4-ports 10G Processing Board

Product Desription:

The available hardware version of the HUNQ2 is TNF5.

Support hybrid transmission of optical transport network OTN, SDH, and packet services, and functions such as

Layer 2 switching, OTN ports, and SDH overhead processing.

The HUNQ2 board is a single-width board (requiring one slot). HUNQ2 can be housed in any of slots 8-14 in the chassis.

Implements service grooming when working with cross-connect boards.32 x ODU0/16 x ODU1/32 x ODUflex/4 x ODU2/4 x ODU2e.

Supports ITU-T G.694.1-compliant dense wavelength division multiplexing (DWDM) specifications.

Supports optical tunable transponders, which can tune optical signals output on the WDM side within the range of 80 wavelengths in C-band with the channel spacing of 50 GHz.

Supports inloops and outloops at WDM-side ports.

Supports inloops and outloops on ODU0, ODU1, and ODUflex channels.

Supports the PRBS test function on WDM and system sides.

Supports ITU-T G.709-compliant forward error correction (FEC) encoding.

Supports ESC communication.

Supports ITU-T G.975.1-compliant advanced forward error correction (AFEC)-2 encoding.

The HUNQ2 board is a 4 x 10G Universal Line Service Processing Board applied to Huawei OSN 1800V and supports hybrid transmission of ODU0, ODU1, ODU2, ODU2e, ODUflex, VC-12, VC-3, VC4, and packet services with the total bandwidth not exceeding 40 Gbit/s. It can also receive and transmit only one or two of these services. The HUNQ2 board processes and converts the received service signals into four OTU2/OTU2e signals, which are carried over four ITU-T G.694.1-compliant DWDM wavelengths.

Specification:

Product details:

If you are interested, please let us know the specific model. We will provide the best service and the best price!
