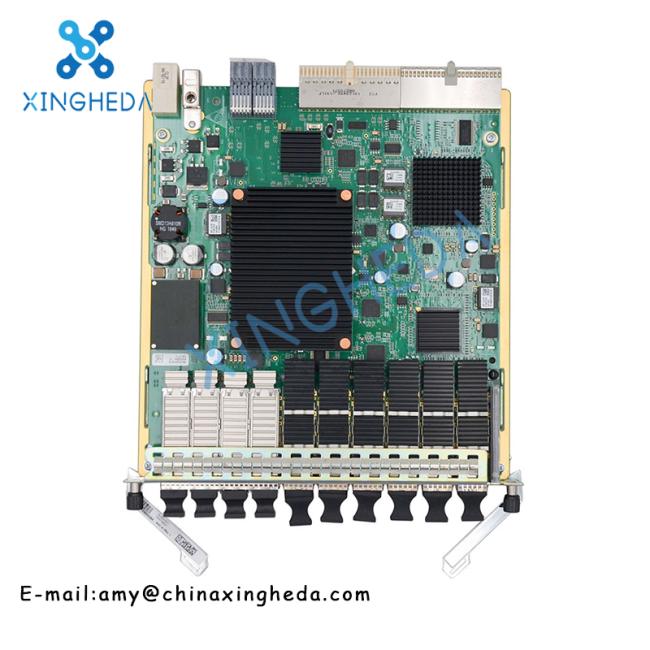

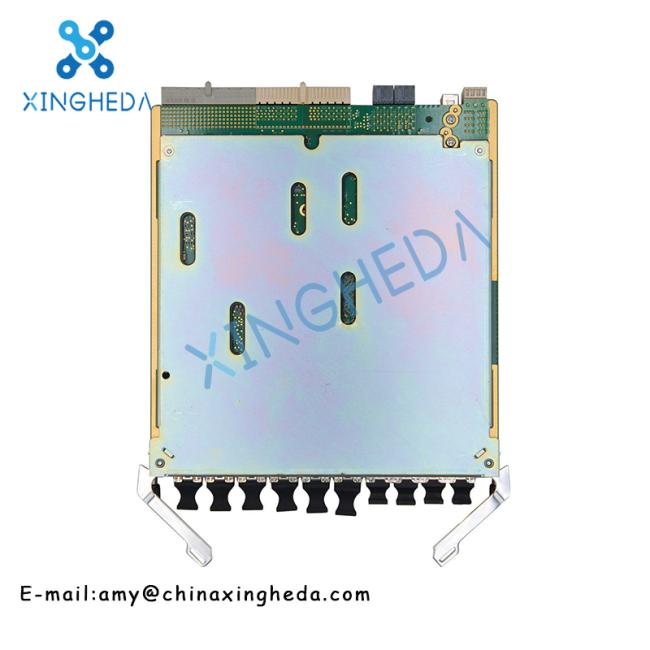

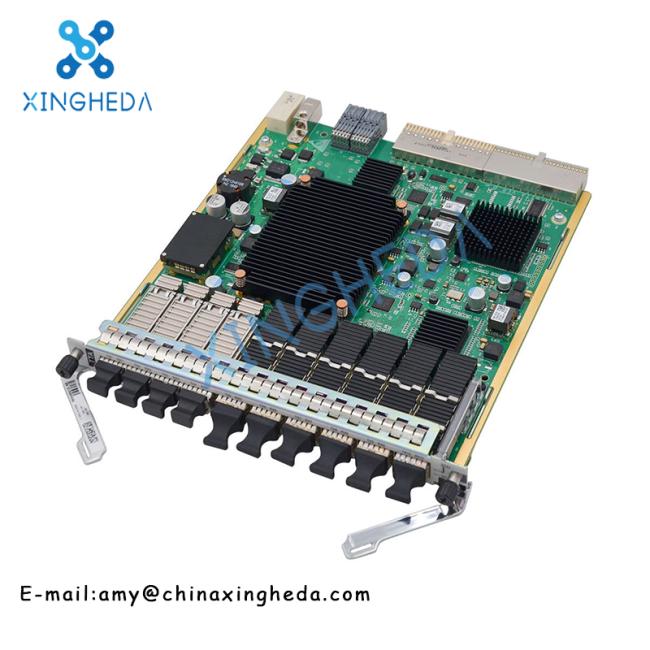

HUAWEI TTA TNF6TTA 02311QMM OSN1800 10 Port Multi Rate Service Board
HUAWEI TTA TNF6TTA 02311QMM Huawei OSN1800 10-port Multi-rate Service Board
Product Desription:
TNF6TTA 10-port multi-rate service processing board
Applied to Huawei OSN 1800 II Enhanced, OSN 1800V
Supports client 1+1 protection
Supports ODUk SNCP
Supports Tributary SNCP
Supports the LPT
Supports ESC communication
Supports Electrical-layer ASON
TNF6TTA is a 10-port multi-rate service processing board applied to Huawei OSN 1800 II Enhanced, OSN 1800V. As a tributary board, the TTA board can accept a maximum of 40 Gbit/s client services. Supports OTN interfaces, and ESC communication.
Specification:
| Specifications | ||||
| Basic functions | Port Working Mode |
TTA boards support the following port working modes:
TTA Scenario 1: ODU0 non-convergence mode(Any->ODU0) TTA Scenario 2: ODU1 non-convergence mode(Any->ODU1) TTA scenario 3: ODU2 non-convergence mode (Any->ODU2(e)) TTA Scenario 4: ODUflex non-convergence mode (Any->ODUflex) TTA Scenario 5: ODU1_ODU0 mode (OTU1->ODU1->ODU0) TTA scenario 6: ODU1 convergence mode (n*Any->ODU1) |
||
| Cross-connect functionality | The total bandwidth is 40 Gbit/s. It cross-connects 20 channels of ODU0 signals, 10 channels of ODU1/ODUflex signals or 4 channels of ODU2/ODU2e signals through the backplane bus and cross-connect board. | |||
| Maximum frame length (MFL) for a port |
Ranges from 1518 bytes to 9600 bytes.
NOTE: The board provides the maximum frame length (MFL) for a port function only when receiving 10GE LAN services on the client side. when Port Mapping is set to Bit Transparent Mapping (11.1G), Maximum Frame Length is unavailable on the NMS. |
|||
| Client-Side Pluggable Optical Module | ||||
|
SFP+ -10G(with CDR)-1310nm-SMF-10km SFP+ -10G(with CDR)-1550nm-SMF-40km SFP+ -8.5G to 10.5G-850nm-MMF-0.3km SFP+ -10G(10GE,LR/LW)-1310nm-SMF-10km SFP+ -10G(10GE,ZR/ZW)-1550nm-SMF-80km SFP+ -2.5G to 11.3G-TX1270/RX1330nm(BIDI)-SMF-10km-I SFP+ -2.5G to 11.3G-TX1330/RX1270nm(BIDI)-SMF-10km-I SFP+ -2.5G to 11.3G-TX1270/RX1330nm(BIDI)-SMF-40km-I SFP+ -2.5G to 11.3G-TX1330/RX1270nm(BIDI)-SMF-40km-I SFP+ -10G-(1529.17nm to 1560.61nm)(DWDM,50GHz,Tunable)-SMF-80km SFP+ -6.144G-850nm-MMF-0.12km-I SFP+ -6.144G-1310nm-SMF-10km-I eSFP-155M-1310nm-MMF-2km eSFP-155M-1310nm-SMF-15km eSFP-155M-1310nm-SMF-40km eSFP-155M-1550nm-SMF-80km eSFP-622M-1310nm-SMF-15km eSFP-622M-1310nm-SMF-40km eSFP-622M-1550nm-SMF-80km eSFP-2.125G-850nm-MMF-0.5km-I eSFP-1.25G-1310nm-SMF-10km eSFP-1.25G-1310nm-SMF-40km eSFP-1.25G-1550nm-SMF-80km-01 eSFP-1.25G-TX1490/RX1310nm(BIDI)-SMF-10km eSFP-1.25G-TX1310/RX1490nm(BIDI)-SMF-10km eSFP-1.25G-TX1490/RX1310nm(BIDI)-SMF-40km eSFP-1.25G-TX1310/RX1490nm(BIDI)-SMF-40km eSFP-2.5G-1310nm-SMF-2km eSFP-2.5G-1310nm-SMF-15km eSFP-2.5G-1310nm-SMF-40km eSFP-2.5G-1550nm-SMF-80km SFP+ -10G(with CDR)-(1471nm to 1611nm)(CWDM)-SMF-70km-I eSFP-3G-1310nm-SMF-10km eSFP-4.25G-850nm-MMF-0.3km-I eSFP-4.25G-1310nm-SMF-10km eSFP-2.5G-(1471nm to 1611nm)(CWDM)-SMF-40km eSFP-2.5G-(1471nm to 1611nm)(CWDM)-SMF-80km eSFP-2.5G-(1529.17nm to 1560.61nm)(DWDM,100GHz)-SMF-120km eSFP-2.5G-TX1310/RX1490nm(BIDI)-SMF-15km-I eSFP-2.5G-TX1490/RX1310nm(BIDI)-SMF-15km-I SFP-2.5G-TX1310/RX1490nm(BIDI)-SMF-40km-I SFP-2.5G-TX1490/RX1310nm(BIDI)-SMF-40km-I SFP+ -0.125G to 11.3G-1310nm-SMF-10km SFP-100Base-T-autonegotiation-100 m-RJ45 SFP-1000Base-T-autonegotiation-100 m-RJ45 |
||||
| Version description of the TTA board | ||||
| Board | Product Applicable-System Control Board-Initial Board Version Supported by System Control Board | |||
| TNF6TTA |
1800 V-TNF5UXCM/TNF5UXCME/TNZ5UXCMS/TNF5XCH-V100R006C20 1800 V-TNZ8XCH-V100R009C00SPC700 1800 II Enhanced-TNZ1UXCL-V100R007C10 1800 II Enhanced-TNZ2UXCL-V100R008C00SPC600 |
|||
| Mechanical Specifications | ||||
| Typical Power Consumption(W) | 53.5 | |||
| Maximum Power Consumption(W) | 60.5 | |||
| Dimension (W x H x D, mm) | 193.8 x 19.8 x 205.9 | |||
| Weight(kg) | 0.8 kg | |||
Product details:
