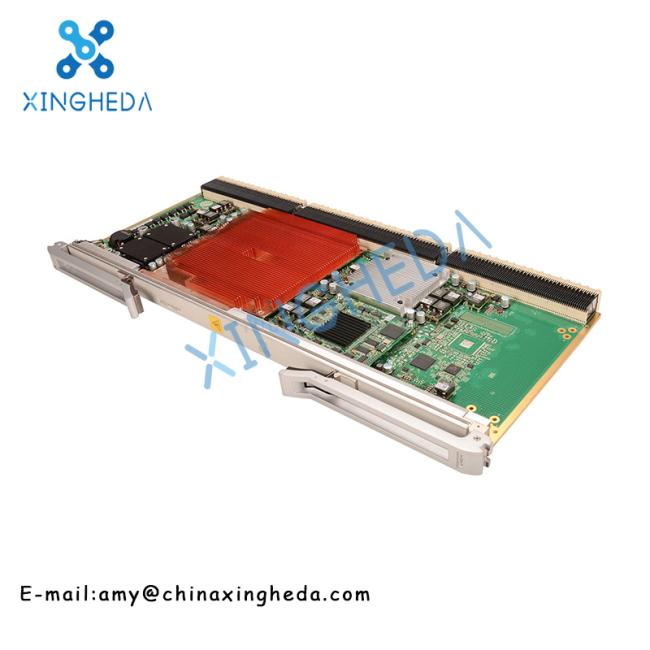

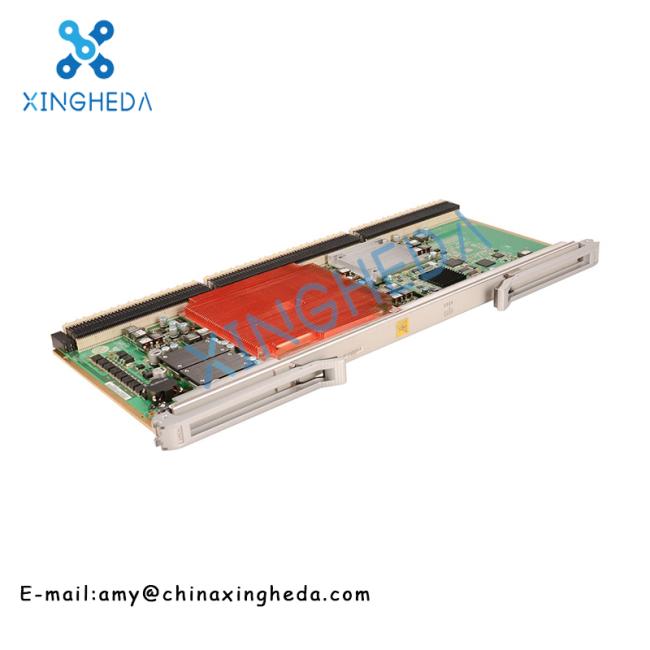

HUAWEI UXCH TN52UXCH 03031FSF OSN8800 T32 3.2T Universal Cross Connect Board
HUAWEI UXCH TN52UXCH 03031FSF OSN8800 T32 3.2T universal cross connect board
Product Desription:
3.2T universal cross connect board (ODUk, PKT, VC4) on Huawei OSN8800 T32.
Enhanced OptiX OSN 8800 T32 subrack:
-
Cross-connects a maximum of 3.2 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals.
-
Performs packet switching of a maximum of 1.6 Tbit/s Ethernet services.
-
Cross-connects a maximum of 1.28 Tbit/s VC-4 signals.
-
Supports hybrid transmission of above-mentioned services with maximum cross-connect capacity of 3.2 Tbit/s.
General OptiX OSN 8800 T32 subrack:
-
Cross-connects a maximum of 2.56 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals.
-
Performs packet switching of a maximum of 640 Gbit/s Ethernet services.
-
Cross-connects a maximum of 1.28 Tbit/s VC-4 signals.
-
Supports hybrid transmission of above-mentioned services with maximum cross-connect capacity of 2.56 Tbit/s.
Supports cross-connection 1+1 protection.
Provides 1+1 hot backup.
Provides 1+1 warm backup.
Supports the manual switching and auto switching.
Supports the non-revertive switching.
Supports electrical-layer ASON.
TN52UXCH is a universal cross connect board applied to Huawei OSN8800 T32, with cross-connect capacity of 3.2T ODUk, Packet, VC4. TN52UXCH part number is 03031FSF, and it has only one functional version TN52.
Specification:
| Mechanical Specifications | |
| Dimensions(mm) | 581.8(H) x 27.9(W) x 220(D) |
| Weight(kg) | 3.9 |
