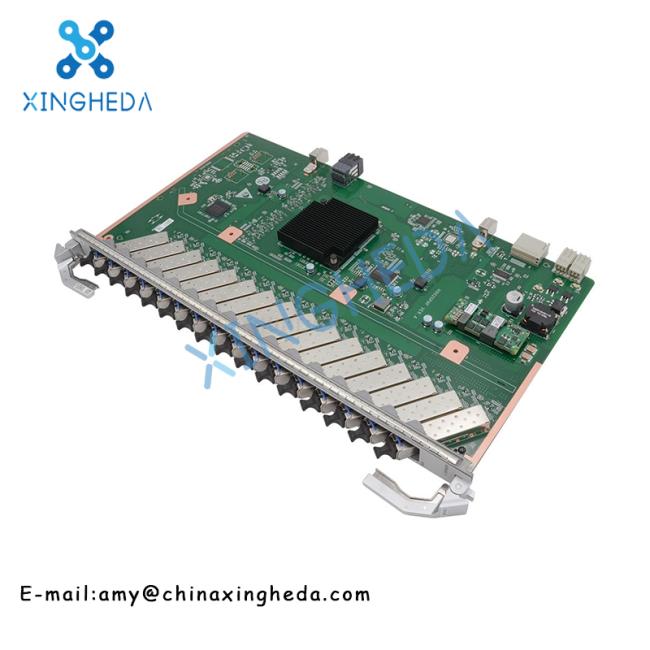

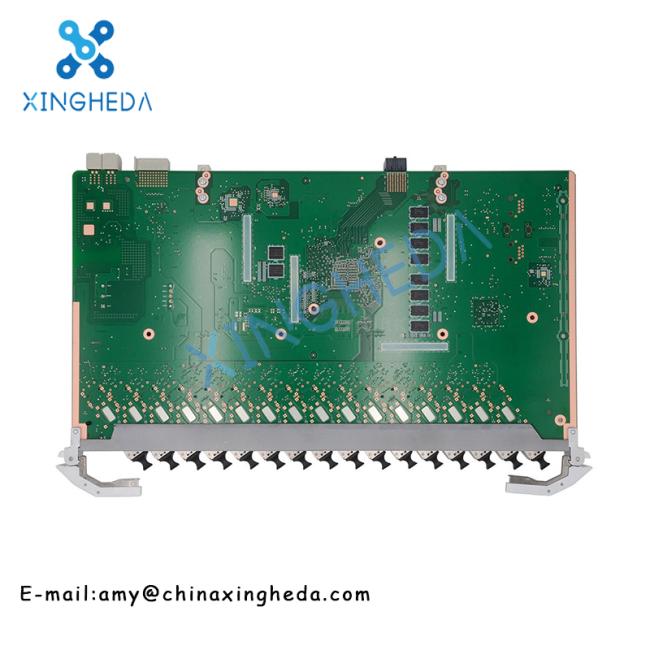

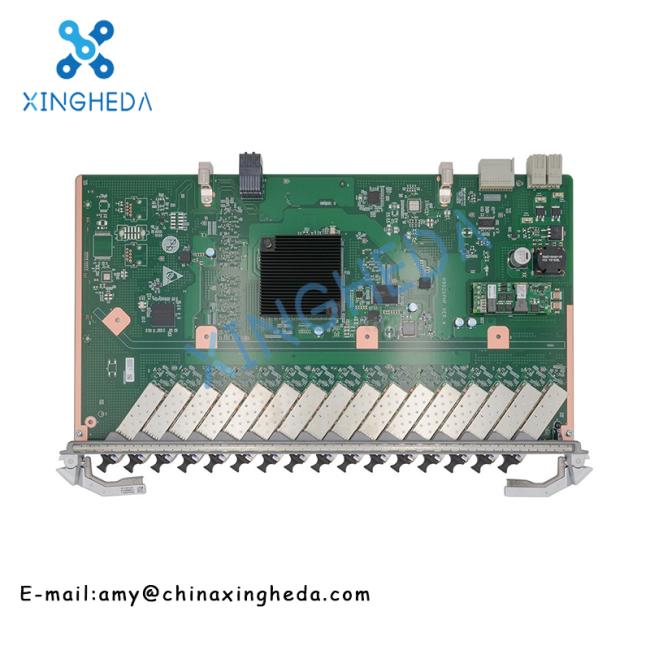

HUAWEI GPHF H902GPHF 03025KEY Huawei MA5800 Series 16 - Port GPON OLT Interface Board

Price Negotiable

Price: $100-$200

MOQ: 1pc

Delivery Time: 3-7 work days

Brand: HUAWEI

Product Description

HUAWEI GPHF H902GPHF 03025KEY Huawei MA5800 series 16-port GPON OLT interface board

Product Desription:

Huawei 16-GPON Port Interface Card with C+ SFP module

Apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system

Support split ration 1:128

Transmit Speed: 2.488Gbit/s, Receive Speed: 1.244Gbit/s

Interface Type: SC

Max Transmit Distance: 20KM

Transmit Wavelength: 1490nm

Receive Wavelength: 1310nm

Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4

C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm

GPHF is a 16 port GPON interface card of Huawei NG OLT, provides GPON service access from ONT. GPHF can maximum access 16*128 GPON subscribers.

Specification:

Specification
Service ports
GPON Port	16-GPON Port
GPON SFP Module Specification
Type	C+ Module : One-fiber bi-directional optical module, class C+
Operating Wavelength	Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type	SFP
Port Rate	Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
Minimun Output Optical Power	C+ Module : 3.00 dBm
Maximum Output Optical Power	C+ Module : 7.00 dBm
Maximum Receiver Sensitivity	C+ Module : -32.00 dBm
Optical Connector Type	SC
Optical Fiber Type	Single-mode
Overload Optical Power	C+ Module : -12.0 dBm
Extinction Ratio	8.2 dB
Function
Forwarding capability	40 Gbit/s
T-CONTs per PON port	1024
Service flows per PON board	16368
Maximum frame size	2052 bytes 9216 bytes (jumbo frame enabled)
Maximum number of MAC addresses	131072
Maximum distance difference between two ONUs under the same PON port	40 km
Device Specifications
Dimensions (W x D x H)	23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption	Static: 25W; Maximum:50W
Operating temperature	-40°C to +65°C
