Tunnelling Freezing Borehole Drilling And Jet Grouting Anchor Drilling Rig TMZ - 1250

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: Negotiable

Brand: Bealong

Product Description

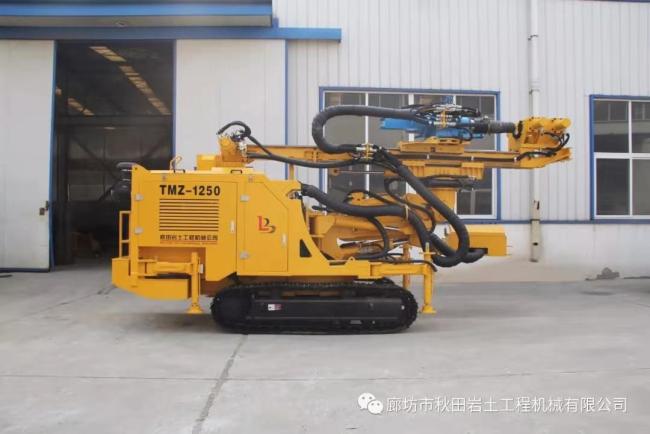

Tunnelling Freezing Borehole Drilling And Jet Grouting Anchor Drilling Rig TMZ - 1250

TMZ-1250 hydraulic anchor drilling rig is designed specially been used for anchor borehole drilling in small tunnels or some none-spacious places.
With compact structure and articulation system combined with rotating tables it can be used for multi-position with multi-angle anchor borehole drilling.
TMZ - 1250 Anchor Drilling Rig is designed been used for anchor drilling .
It is a full hydraulic machine.
It can be used in many fields such as pipe-shed ,micropile,grout jetting,deep foundation pit,highway slope stabilization and railway bed stabilization.
It is favored by many customers because of its efficiency and stable performance.
The advantage is that it can be flexible and efficiency working in small tunnels and none-spacious places.

Competitive Advantage:

1. Convenient, high efficiency

2. High quality

3. Reasonable price

4. Good service

Quick Detail:

* Compact design

* Easy to operate

* Multi-function application

* Long service life

Specifications:

Engine Model No.	QSB4.5-C160
Emission level	III
Rated power(KW)	123kW @2200rpm
Tramming Motor	Double-speed
Tramming speed (km/h)	1.4
Ground pressure (N/cm²)	5.8
Gradeability(°)	20
Rotation rate at high gear (r/min)	0~46,0~72 0~92,0-144
Rotation rate at low gear (r/min)	0~32,0~50 0~64,0-100
Torque range at low gear(Nm)	12000/8500
Torque range at high gear(Nm)	6000/4250
Percussion frequency(min¹)	1150
Impact work(N.m)	750
Feed stroke(mm)	2500
Feed force(kN)	50
Retraction force(kN)	50
Feed rate(m/min)	0~10 0~50
Retraction rate(m/min)	0~10 0~50
Clamp range(mm)	60 ~ 168
Maximum passing diameter(mm)	210
Dimension(mm)	5900x1500x2850
Weight(T)	10
