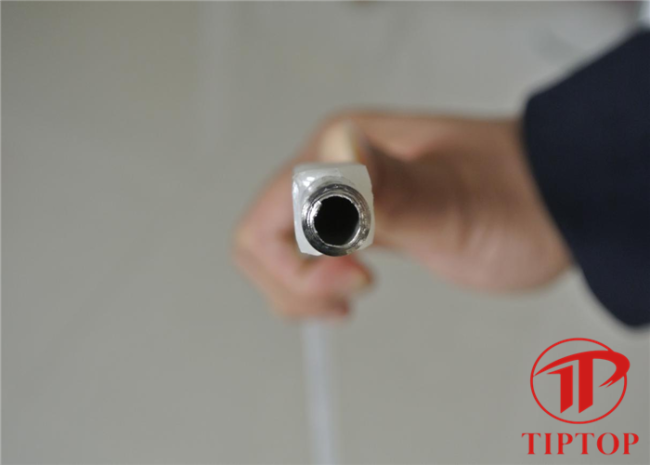

ESP Encapsulated Control Line Tubing
Super long seamless F46 Nylon Encapsulated Control Line tubing coil tube alloy 825
Encapsulated tubing is used to reduce the risk of leakage in your hydraulic line, and reach a higher resistance to corrosion at high temperature working environment,The core tubing is jacketed with the latest thermoplastic elastomeric compounds designed to outlast the life of project tubing installations by reducing the possibility of corrosion and mechanical damage. They can stand up to a wide range of chemical inhibitors and seawater. The jackets are manufactured from fire retardant, all-weather,abrasion-resistant compounds, designed to remain strong and flexible through wide ranges of temperatures and pressures.
F46 Encapsulated Control Line
Encapsulation layer F46 is FEP, a co-polymer of tetrafluoroethylene and
hexafluoropropylene.
It is featured with:
￭ Keeping a stable performance at a working temperature from -85℃ to 200℃
￭ Resistance to a wide chemicals
￭ Resistance to creep
Nylon Encapsulated Tubing
The encapsulation layer Nylon is well-known as its resistance to wearing.
Features:
Resistance to corrosion
High breaking strength
Good elongation at rupture
High elastic recovery
High durability to fatigue
| Bare tube Material | Encapsulation material | OD (inch) |
Wall Thickness (inch) | Working Pressure (MPa) |
Length (M/Pcs) |
| Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) |
F40 F46 FEP (Fluorinated Ethylene Propylene) PVC (Polyvinyl chloride) Nylon Encapsulated etc.. |
1/8” | 0.025”, 0.035”, 0.049” | 80--120 | 50--4000 |
| 1/4” | 0.035”, 0.049”, 0.065” | 60--120 | 50--3000 | ||
| 3/8” | 0.035”, 0.049”, 0.065” | 60--120 | 50--2500 | ||
| 1/2” | 0.035”, 0.049”, 0.065” | 60--120 | 50--2000 |
Note:The size and length can be customized.
