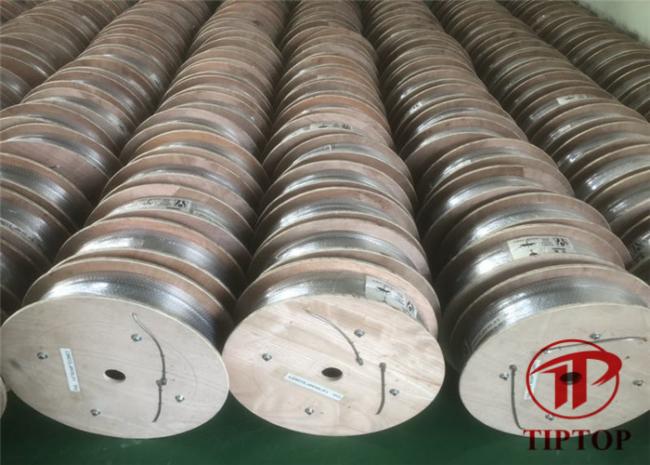

ASTM A269 Welded SS304 Stainless Steel Coiled Tubing
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
10 days
Brand:
TIPTOP
Product Description
304 316 Small Diameter Welded Stainless Steel Coiled Tubing
1. Descriptions
| Name | 304 316 small diameter welded stainless steel capillary coil pipe tube |
| Specification | ASTM A213, ASTM A269, ASTM A312, EN10216-5, GB/T14976-2012 |
| Steel Grade | SS304/SS304L, SS316/SS316L |
| Size | OD:3-50.8mm, wall thickness: 0.5-4mm |
| Length | 4m,6m or customized |
| Delivery Conditions | BA(Bright Annealed), Mechanical Polished, Electro-polished( EP) |
| Features | Bright Annealed for finished tube, high cleanness and high precision of inside and outside surface, good mechanical properties, excellent cold bending ability, high temperature resistant and anti-oxidation. We also provide polishing and pipe cutting service |
| Applications | Used in automobile,precision instruments,hydraulic system, machinery,petroleum,chemical and gas field. |
| Packing | Plastic film & Knitting Bundled, Plywood Case or as request |
| Delivery Time | 30-60days after order confirmed |
2. Chemical Composition:
| Grade | C | Si | Mn | P | S | Cr | Ni |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | ≤18.0-20.0 | ≤8.0-10.5 |
| 304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | ≤18.0-20.0 | ≤8.0-10.5 |
| Grade | C | Si | Mn | P | S | Cr | Ni | others |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 16.0~18.0 | 10.0~14.0 | Mo:2~3 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 16.0~18.0 | 12.0~15.0 | Mo:2~3 |
3. Mechanical Properties&Hardness:
| Grade | YS(Mpa) | TS(Mpa) | EL(%) | Hv |
| 304 | ≥205 | ≥520 | ≥40 | ≤200 |
| 304L | ≥175 | ≥480 | ≥40 | ≤200 |
| Grade | YS(Mpa) | TS(Mpa) | EL(%) | Hv |
| 316 | ≥205 | ≥520 | ≥40 | ≤200 |
| 316L | ≥175 | ≥480 | ≥40 | ≤200 |
4. Inspection and Tests
We inspect all lots of tubing before shipment to ensure that every aspect of the customer's order has been met.
Our in-house inspection and tests capabilities include:
- Chemical Composition Test
- Visual inspection
- Dimensional inspection
- Surface roughness testing
- Eddy Current testing
- Hydrostatic pressure testing
- Destructive mechanical testing:
- Yield Strength
- Tensile Strength
- Elongation
- Hardness testing
- bending, flattening, and flaring
All shipments include a full Test Certificate showing all required test results and verifying compliance with the order requirements.
