Bright 25.4MM Welded ASTM Coiled Control Line Tubing
ASTM Alloy Steel Coiled Control Line Tubing
Detailed product description
1.Specification:Stainless steel coil tube coiled tube coil tubing
2.Type: welded or seamless
3. Standard: ASTM A269, ASTM A249,
4. Stainless steel coil tube OD: 6mm to 25.4MM
5.Length:600-3500MM or as per customer's requirment. not welding
6. Wall thickness: 0.2mm to 2.0mm.
7. Tolerance: OD: +/-0.01mm; Thickness: +/-0.01%.
8.Surface: Bright or anneald
9. Material: 304, 304L, 316L, 321, 301, 201, 202, 409, 430, 410,alloy 625 825 2205 2507 etc.

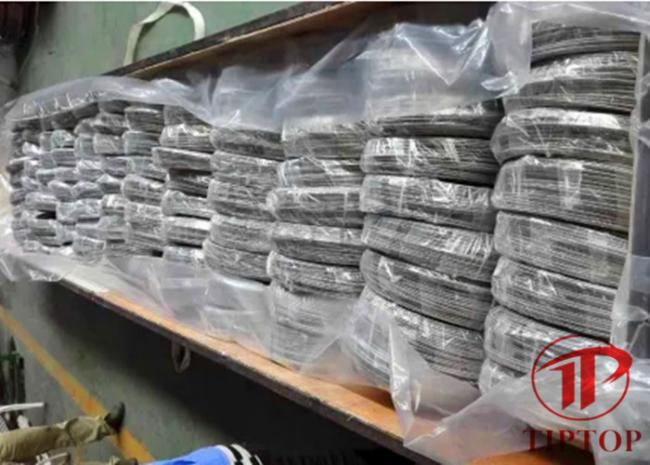

10. Packing: LCL wooden case poly bay,FCL steel self or poly bay
11. Test :Yield strength, tensile strength, hydrapress measurement
12.Guarantee:The third party (for example :SGS TV ) cetification ect.
13. Application:
- Down hole tubes
- Subsea umbilical's
- Process constructions
- General control system
- Steam supply lines
- Gas transport lines
- Instrumentation
All the Chemical Composition and Physical Properites for Stainless Steel as flowing:
| Chemical Composition,% | ||||||||
| Standard | ASTM A269 | ASTM A789 | ASTM B704 | |||||
| Material | SS 304 | SS 304L | SS 316 | SS 316L | Duplex 2205 | Super Duplex 2507 | Incoloy 625 | Incoloy 825 |
| UNS | S30400 | S30403 | S31600 | S31603 | S32205 | S32750 | N06625 | N08825 |
| C | 0.08 | 0.035 | 0.08 | 0.035 | 0.03 | 0.03 | 0.1 | 0.05 |
| Mn | 2 | 2 | 2 | 2 | 2 | 1.2 | 0.5 | 1 |
| P | 0.045 | 0.045 | 0.045 | 0.045 | 0.03 | 0.035 | 0.015 | ... |
| S | 0.03 | 0.03 | 0.03 | 0.03 | 0.02 | 0.02 | 0.015 | 0.03 |
| Si | 1 | 1 | 1 | 1 | 1 | 0.8 | 0.5 | 0.5 |
| Ni | 8.0-11.0 | 8.0-12.0 | 10.0-14.0 | 10.0-15.0 | 4.5-6.5 | 6.0-8.0 | min 58.0 | 38.0-46.0 |
| Cr | 18.0-20.0 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 | 22.0-23.0 | 24.0-26.0 | 20.0-23.0 | 19.5-23.5 |
| Mo | ... | ... | 2.00-3.00 | 2.00-3.00 | 3.0-3.5 | 3.0-3.5 | 8.0-10.0 | 2.5-3.5 |
| N | ... | ... | ... | ... | 0.14-0.20 | 0.24-0.32 | ... | ... |
| Cu | ... | ... | ... | ... | ... | 0.5 | ... | 1.5-3.0 |
| Fe | 5 | min 22.0 | ||||||
| Al | 0.4 | 0.2 | ||||||
| Ti | 0.4 | 0.6-1.2 | ||||||
| Cb+Ta | 3.15-4.15 | ... | ||||||
| Material | Heat treatment | Temperure F (C) Min. | Hardness | |
| Brinell | Rockwell | |||
| TP304 | Solution | 1900 (1040) | 192HBW/200HV | 90HRB |
| TP304L | Solution | 1900 (1040) | 192HBW/200HV | 90HRB |
| TP316 | Solution | 1900(1040) | 192HBW/200HV | 90HRB |
| TP316L | Solution | 1900(1040) | 192HBW/200HV | 90HRB |
| OD | Wall (inch) |
Materials | Standard | Working Pressure (MPa) |
Length |
| 1/8" | 0.02,0.028,0.035 | Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) |
ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60-120 Mpa | Customized |
| 3/16" | 0.02,0.028,0.035,0.049 | ||||
| 1/4" | 0.02,0.028,0.035,0.049,0.065.0.083 | ||||
| 5/16" | |||||
| 3/8" | |||||
| 1/2" | |||||
| * OD: Up to 1 inch | |||||
