ASTM 3/8" OD Austenitic SS316L Welded Coiled Tubing

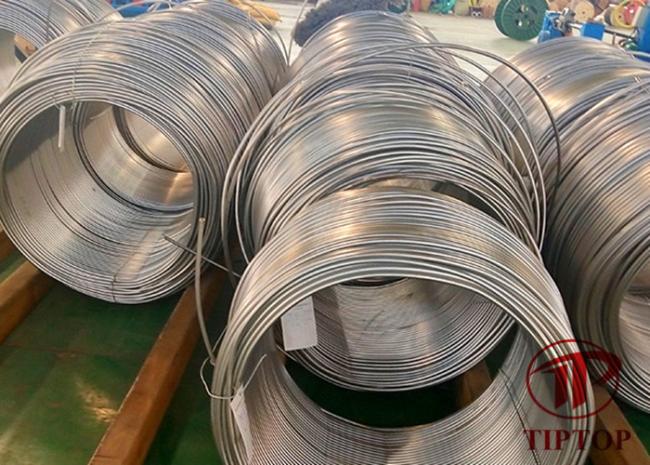

3/8" OD Austenitic 316L Welded SS Stainless Steel Coiled Tubing

The 3/8" welded SS stainless steel coiled tubing is mainly used to inject chemicals into oil and gas wells. That is, the 3/8” austentic 316L welded SS stainless steel coiled tubing is connected to the downhole chemical injection valve, and the descaling is performed through the 3/8" welded SS stainless steel coiled tubing and the chemical injection valve. Chemical agent is injected from the surface into the oil tube at a certain depth down the well, which effectively removes the scaling of the oil tube and ensures the normal production of oil and gas fields.

Size Chart of 316L Welded SS Stainless Steel Coiled Tubing

It can also be used for pressure control of surface ety valves and other surface valves, and various connection tubelines of large-scale equipment instrumentation control systems for oil and gas field drilling and oil production.

Welded Control Lines are the preferred construction for lines being used in downhole oil and gas applications. Our 316L welded control lines are used in SCSSV, Chemical Injection, Advanced Well Completions, and Gauge Applications. We offer a variety of welded constructed lines. (Laser Welded, TIG Welded, welded and sunk drawn, welded floating plug drawn, and lines with enhancements) The various processes provide us the ability to customize a solution to meet your next well completion. Please contact our team to learn more about our welded control line offerings.

Chemical Composition of 316L Welded SS Stainless Steel Coiled Tubing

MANUFACTURING PROCESS AND RESULTANT PROPERTIES

The desired sizes are obtained by repeat cold drawing process, any welded joints are not

acceptable in each one coil ranging from 0.125 inch to 1 inch O.D. (3.2 mm to 25.4 mm) and a variety of wall thicknesses.

The strip is formed into a tubular cross section and longitudinally seam welded using either the gas tungsten arc (GTAW). The tubing may be welded at a larger outside diameter, sunk to final size and subsequently heat treated. Heat treated tubing is one continuous length of tubing, completely free of any welded joints or seams. Each coil is

100% hydrostatic tested.

NONDESTRUCTIVE TESTING (NDT)

Eddy current testing (ECT) is performed on the longitudinally seam welded tubing. Radiographic testing and ECT are performed on material in the final heat treated condition. Yield pressure hydrostatic testing is performed on the heat treated tubing at final size.

Packaging standard of 316L Welded SS Stainless Steel Coiled Tubing:

• Control line to be coiled on wooden drum and install protector to prevent from mechanical damage
• Customized packaging marking service

FAQ

Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.

Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.

Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.

Q4. How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
