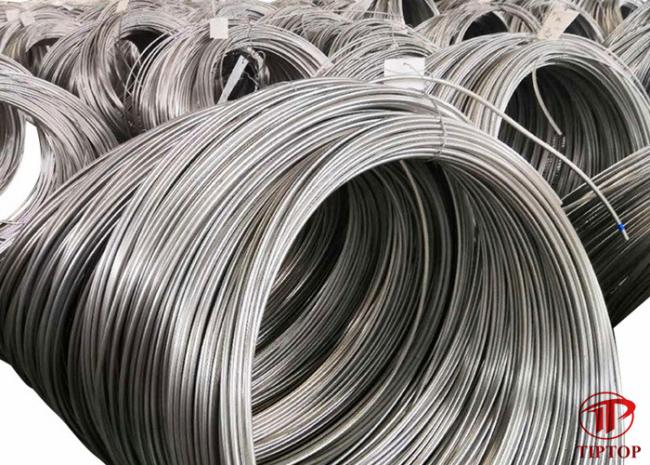

Anti Corrosion SS Hydraulic Control Line Tubing Incoloy 625
Incoloy 625 SS Hydraulic Control Line Tubing 1/8"-1/2" OD
Incoloy 625 alloy is a solid solution strengthened nickel-based deformed high temperature alloy with molybdenum and niobium as the main strengthening elements. It has excellent corrosion and oxidation resistance. It has good tensile properties and fatigue properties from low temperature to 980°C, and is resistant to Stress corrosion in salt spray atmosphere. Therefore, it can be widely used in the manufacture of aero engine parts, aerospace structural parts and chemical equipment. The alloy is used to manufacture engine casings, guide vanes, mounting edges and cylinders, fuel manifolds and other parts. It has passed the actual application assessment and the maximum operating temperature is 950°C.
Chemical Composition
| Material | UNS | C | Mn | P | S | Si | Ni | Cr | Mo | N | Cu | Fe | Al | Ti | Cb+Ta |
| 625 | N06625 | 0.10 | 0.50 | 0.015 | 0.015 | 0.50 | min 58.0 | 20.0-23.0 | 8.0-10.0 | ... | ... | 5.0 | 0.4 | 0.40 | 3.15-4.15 |
Specifications
| OD | WT | Materials | Standard | Working Pressure | Length |
| 1/8" | 0.02", 0.028", 0.035" |
Inconel 625 (UNS N06625) |
ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60-120 Mpa | Customized |
| 3/16" | 0.02", 0.028", 0.035", 0.049" | ||||
| 1/4" | 0.02", 0.028", 0.035", 0.049", 0.065", 0.083" | ||||
| 5/16" | |||||
| 3/8" | |||||
| 1/2" | |||||
| * OD: Up to 1" | |||||
FAQ
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
