2-3/8 Inch -7 Inch ESP Cable Protectors Round & Flat High Strength
2-3/8"-7" ESP Cable Protectors Round&Flat

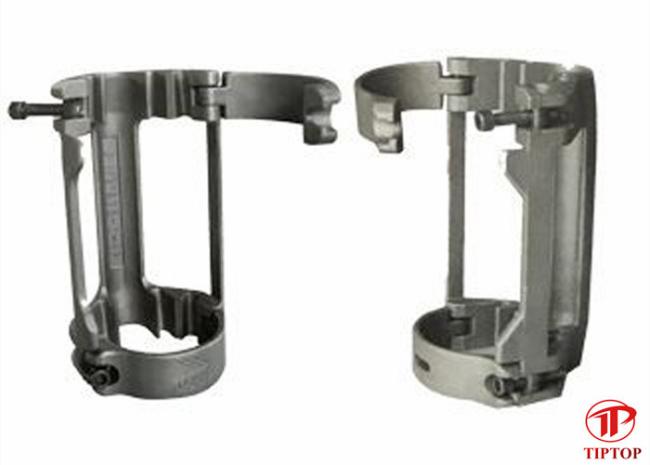

The main function of the cross-coupling protector is to fix and protect the downhole cables on the outer wall of the tubing, especially to prevent the cable from eccentric wear at the joint position. The specifications and models can be customized according to the tubing size, and the material can be made of different materials according to the medium.
Features:
-
All-cast construction; ensures strength and reliability
-
One piece design without separate parts or pins
-
Smooth streamline design; reduces collision hanging risk
-
Optimized cable slot; considerate layout
-
Quick and reliable installation; less than 30 seconds
Specifications:
|
NO. |
Description |
Tube size |
Cable type |
Cable size |
|
1 |
Cable Protector 2-3/8R6-8 |
2-3/8" |
Round |
Φ6-8mm |
|
2 |
Cable Protector 2-3/8F11/34 |
2-3/8" |
Flat |
11mm SQUARE |
|
3 |
Cable Protector 2-3/8R32-34 |
2-3/8" |
Round |
Φ32-34mm |
|
4 |
Cable Protector 2-7/8R6-8 |
2-7/8" |
Round |
Φ6-8mm |
|
5 |
Cable Protector 2-7/8R30-33 |
2-7/8" |
Round |
Φ30-33mm |
|
6 |
Cable Protector 2-7/8R34-37 |
2-7/8" |
Round |
Φ34-37mm |
|
7 |
Cable Protector 2-7/8F11/34 |
2-7/8" |
Flat |
11mm SQUARE |
|
8 |
Cable Protector 2-7/8F16-19/56 |
2-7/8" |
Flat |
16-19mm SQUARE |
|
9 |
Cable Protector 2-7/8F16-19/70 |
2-7/8" |
Flat |
16-19mm SQUARE |
|
10 |
Cable Protector 3-1/2R6-8 |
3-1/2" |
Round |
Φ6-8mm |
|
11 |
Cable Protector 3-1/2R30-33 |
3-1/2" |
Round |
Φ30-33mm |
|
12 |
Cable Protector 3-1/2R34-37 |
3-1/2" |
Round |
Φ34-37mm |
|
13 |
Cable Protector 3-1/2R38-42 |
3-1/2" |
Round |
Φ38-42mm |
|
14 |
Cable Protector 3-1/2F11/34 |
3-1/2" |
Flat |
11mm SQUARE |
|
15 |
Cable Protector 3-1/2F16-19/60 |
3-1/2" |
Flat |
16-19mm SQUARE |
|
16 |
Cable Protector 3-1/2F19-23/70 |
3-1/2" |
Flat |
19--23mm SQUARE |
|
17 |
Cable Protector 4-1/2R6-8 |
4-1/2" |
Round |
Φ6-8mm |
|
18 |
Cable Protector 4-1/2R34-37 |
4-1/2" |
Round |
Φ34-37mm |
|
19 |
Cable Protector 4-1/2R38-42 |
4-1/2" |
Round |
Φ38-42mm |
|
20 |
Cable Protector 4-1/2F11/34 |
4-1/2" |
Flat |
11mm SQUARE |
|
21 |
Cable Protector 4-1/2F16-19/60 |
4-1/2" |
Flat |
16-19mm SQUARE |
|
22 |
Cable Protector 4-1/2F19-23/60 |
4-1/2" |
Flat |
19--23mm SQUARE |
|
23 |
Cable Protector 5-1/2R6-8 |
5-1/2" |
Round |
Φ6-8mm |
|
24 |
Cable Protector 5-1/2R34-37 |
5-1/2" |
Round |
Φ34-37mm |
|
25 |
Cable Protector 5-1/2R38-42 |
5-1/2" |
Round |
Φ38-42mm |
|
26 |
Cable Protector 5-1/2F11/34 |
5-1/2" |
Flat |
11mm SQUARE |
|
27 |
Cable Protector 5-1/2F11-16/56 |
5-1/2" |
Flat |
11-16mm SQUARE |
|
28 |
Cable Protector 5-1/2F16-19/70DUAL |
5-1/2" |
Flat |
19--23mm SQUARE |
|
29 |
Cable Protector 7R6-8 |
7" |
Round |
Φ6-8mm |
|
30 |
Cable Protector 7F11/34 |
7" |
Flat |
11mm SQUARE |
FAQ
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A: Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
