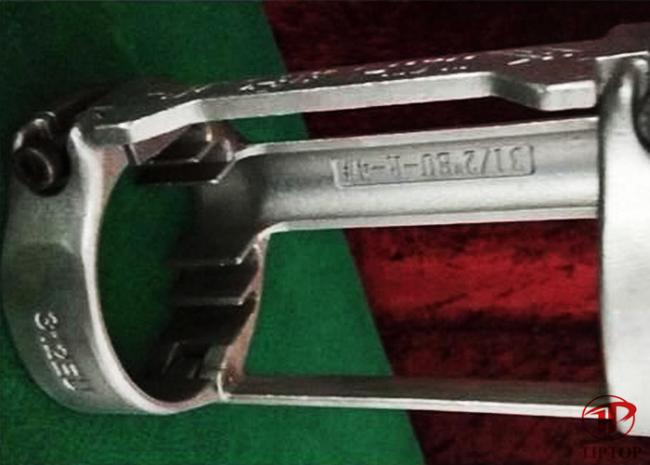

3-1/2" Cross Coupling ESP Cable Protectors
3-1/2" ESP Cable Protectors Flat
Cross Coupling Protectors are available in a variety of materials and configurations to protect cables and capillary tubing traveling down-hole. Customized variations allow for any cable/cap string configuration needed. Low Carbon Steel, various Stainless Steel, Inconel, Monel and other materials options available to match the requirements of your well composition.
Specifications:
|
NO. |
Description |
Tube size |
Cable type |
Cable size |
|
1 |
Cable Protector 2-3/8R6-8 |
2-3/8" |
Round |
Φ6-8mm |
|
2 |
Cable Protector 2-3/8F11/34 |
2-3/8" |
Flat |
11mm SQUARE |
|
3 |
Cable Protector 2-3/8R32-34 |
2-3/8" |
Round |
Φ32-34mm |
|
4 |
Cable Protector 2-7/8R6-8 |
2-7/8" |
Round |
Φ6-8mm |
|
5 |
Cable Protector 2-7/8R30-33 |
2-7/8" |
Round |
Φ30-33mm |
|
6 |
Cable Protector 2-7/8R34-37 |
2-7/8" |
Round |
Φ34-37mm |
|
7 |
Cable Protector 2-7/8F11/34 |
2-7/8" |
Flat |
11mm SQUARE |
|
8 |
Cable Protector 2-7/8F16-19/56 |
2-7/8" |
Flat |
16-19mm SQUARE |
|
9 |
Cable Protector 2-7/8F16-19/70 |
2-7/8" |
Flat |
16-19mm SQUARE |
|
10 |
Cable Protector 3-1/2R6-8 |
3-1/2" |
Round |
Φ6-8mm |
|
11 |
Cable Protector 3-1/2R30-33 |
3-1/2" |
Round |
Φ30-33mm |
|
12 |
Cable Protector 3-1/2R34-37 |
3-1/2" |
Round |
Φ34-37mm |
|
13 |
Cable Protector 3-1/2R38-42 |
3-1/2" |
Round |
Φ38-42mm |
|
14 |
Cable Protector 3-1/2F11/34 |
3-1/2" |
Flat |
11mm SQUARE |
|
15 |
Cable Protector 3-1/2F16-19/60 |
3-1/2" |
Flat |
16-19mm SQUARE |
|
16 |
Cable Protector 3-1/2F19-23/70 |
3-1/2" |
Flat |
19--23mm SQUARE |
|
17 |
Cable Protector 4-1/2R6-8 |
4-1/2" |
Round |
Φ6-8mm |
|
18 |
Cable Protector 4-1/2R34-37 |
4-1/2" |
Round |
Φ34-37mm |
|
19 |
Cable Protector 4-1/2R38-42 |
4-1/2" |
Round |
Φ38-42mm |
|
20 |
Cable Protector 4-1/2F11/34 |
4-1/2" |
Flat |
11mm SQUARE |
|
21 |
Cable Protector 4-1/2F16-19/60 |
4-1/2" |
Flat |
16-19mm SQUARE |
|
22 |
Cable Protector 4-1/2F19-23/60 |
4-1/2" |
Flat |
19--23mm SQUARE |
|
23 |
Cable Protector 5-1/2R6-8 |
5-1/2" |
Round |
Φ6-8mm |
|
24 |
Cable Protector 5-1/2R34-37 |
5-1/2" |
Round |
Φ34-37mm |
|
25 |
Cable Protector 5-1/2R38-42 |
5-1/2" |
Round |
Φ38-42mm |
|
26 |
Cable Protector 5-1/2F11/34 |
5-1/2" |
Flat |
11mm SQUARE |
|
27 |
Cable Protector 5-1/2F11-16/56 |
5-1/2" |
Flat |
11-16mm SQUARE |
|
28 |
Cable Protector 5-1/2F16-19/70DUAL |
5-1/2" |
Flat |
19--23mm SQUARE |
|
29 |
Cable Protector 7R6-8 |
7" |
Round |
Φ6-8mm |
|
30 |
Cable Protector 7F11/34 |
7" |
Flat |
11mm SQUARE |
FAQ
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A: Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
