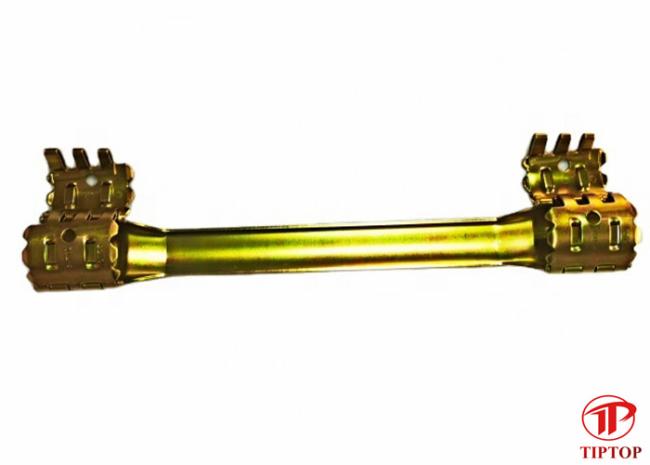

Carbon Steel Stainless Steel 2-7/8F16-19/56 ESP Cable Protectors
Cable Protector 2-7/8F16-19/56 ESP Cable Protectors Customized
Dual-channel protection by increasing the number of cables to be an increase in protection a second channel in the cable protector. They can accommodate a plurality of cables and other capped ESP lines or control cables. The standard cross-coupled as the protector, they may be made of a variety of materials and configurations, and the capillary tube to protect the cable downhole. Custom variant allows any desired cable / column cover configuration. Low carbon steel, stainless steel, Inconel, Monel, and other materials are available to meet the requirements of your oil component.
Features:
Compact, applicable to any cross coupling connector
Fast on-site installation
Environmental protection
Reusable and recyclable products
Specifications:
| NO. | Description | Tube size | Cable type | Cable size |
| 1 | Cable Protector 2-3/8R6-8 | 2-3/8" | Round | Φ6-8mm |
| 2 | Cable Protector 2-3/8F11/34 | 2-3/8" | Flat | 11mm SQUARE |
| 3 | Cable Protector 2-3/8R32-34 | 2-3/8" | Round | Φ32-34mm |
| 4 | Cable Protector 2-7/8R6-8 | 2-7/8" | Round | Φ6-8mm |
| 5 | Cable Protector 2-7/8R30-33 | 2-7/8" | Round | Φ30-33mm |
| 6 | Cable Protector 2-7/8R34-37 | 2-7/8" | Round | Φ34-37mm |
| 7 | Cable Protector 2-7/8F11/34 | 2-7/8" | Flat | 11mm SQUARE |
| 8 | Cable Protector 2-7/8F16-19/56 | 2-7/8" | Flat | 16-19mm SQUARE |
| 9 | Cable Protector 2-7/8F16-19/70 | 2-7/8" | Flat | 16-19mm SQUARE |
| 10 | Cable Protector 3-1/2R6-8 | 3-1/2" | Round | Φ6-8mm |
| 11 | Cable Protector 3-1/2R30-33 | 3-1/2" | Round | Φ30-33mm |
| 12 | Cable Protector 3-1/2R34-37 | 3-1/2" | Round | Φ34-37mm |
| 13 | Cable Protector 3-1/2R38-42 | 3-1/2" | Round | Φ38-42mm |
| 14 | Cable Protector 3-1/2F11/34 | 3-1/2" | Flat | 11mm SQUARE |
| 15 | Cable Protector 3-1/2F16-19/60 | 3-1/2" | Flat | 16-19mm SQUARE |
| 16 | Cable Protector 3-1/2F19-23/70 | 3-1/2" | Flat | 19--23mm SQUARE |
| 17 | Cable Protector 4-1/2R6-8 | 4-1/2" | Round | Φ6-8mm |
| 18 | Cable Protector 4-1/2R34-37 | 4-1/2" | Round | Φ34-37mm |
| 19 | Cable Protector 4-1/2R38-42 | 4-1/2" | Round | Φ38-42mm |
| 20 | Cable Protector 4-1/2F11/34 | 4-1/2" | Flat | 11mm SQUARE |
| 21 | Cable Protector 4-1/2F16-19/60 | 4-1/2" | Flat | 16-19mm SQUARE |
| 22 | Cable Protector 4-1/2F19-23/60 | 4-1/2" | Flat | 19--23mm SQUARE |
| 23 | Cable Protector 5-1/2R6-8 | 5-1/2" | Round | Φ6-8mm |
| 24 | Cable Protector 5-1/2R34-37 | 5-1/2" | Round | Φ34-37mm |
| 25 | Cable Protector 5-1/2R38-42 | 5-1/2" | Round | Φ38-42mm |
| 26 | Cable Protector 5-1/2F11/34 | 5-1/2" | Flat | 11mm SQUARE |
| 27 | Cable Protector 5-1/2F11-16/56 | 5-1/2" | Flat | 11-16mm SQUARE |
| 28 | Cable Protector 5-1/2F16-19/70DUAL | 5-1/2" | Flat | 19--23mm SQUARE |
| 29 | Cable Protector 7R6-8 | 7" | Round | Φ6-8mm |
| 30 | Cable Protector 7F11/34 | 7" | Flat | 11mm SQUARE |
FAQ
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A: Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
