PP PE PVC Pipe Making Machine Production Line Single or Double Screw Corrugated Pipe Extrusion Line
PP/PE/PVC Corrugated Pipe Making Machine For Water Supply Single or Double Wall Corrugated Production Extrusion Line
Product Description:
This pipe production line is mainly used for producing HDPE/LDPE/PE pipe. The pipe has some excellent features such as heating resistant, aging resistant, high mechanical strength, environmental stress cracks resistant, good creep resistant, etc. It is a preferred gas conduit for ductwork systems between city and its suburb, water supply in city.
Constituent of plastic making machine

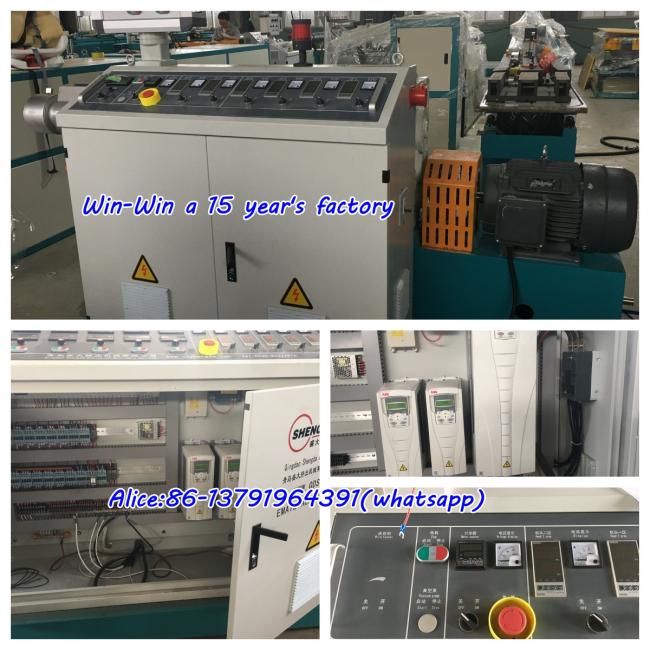

Electrical parts: ABB inverter, Siemens contactor, RKC thermo controllers etc,we maily use Delta/ABB PLC system,It is optional for customer's need.
Distributed spiral composite extrusion die-head ensures the melting pressure and flux even and stable, the surface of pipe smooth and glossy.

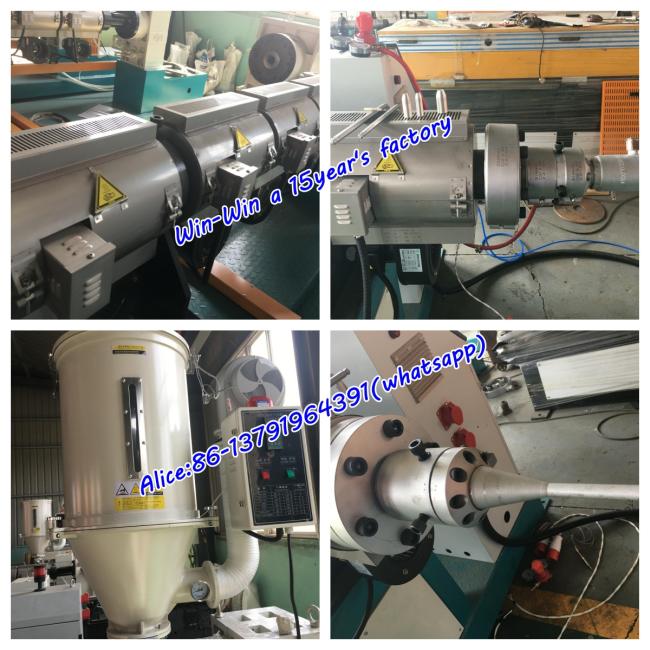

high efficient screw, hard gear surface gearbox, uniformed raw material heating, good plasticization, high extrusion speed.
Forming modules: it is made of hard steel, dealed with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change.
Die Head:Material:40Cr,the surface of die is chromeplated,anti-corrosive.

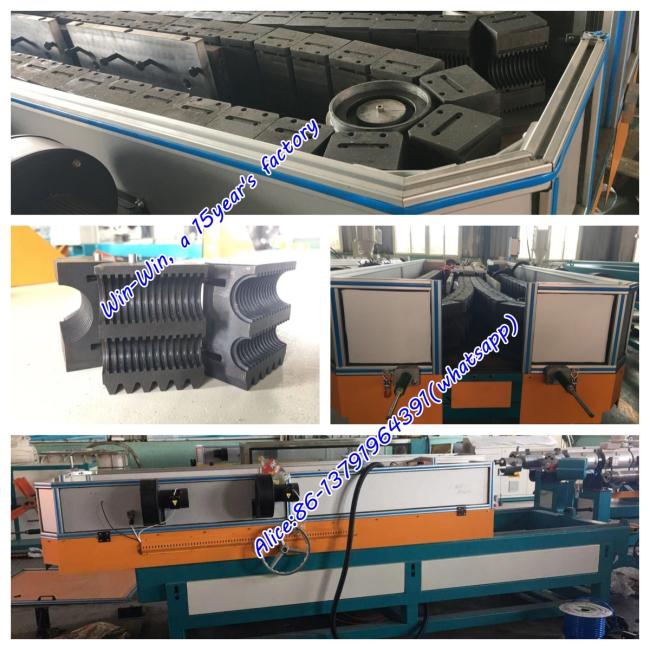

Mould Blocks :It is 40Cr materials ,could be two cavities or single cavity.

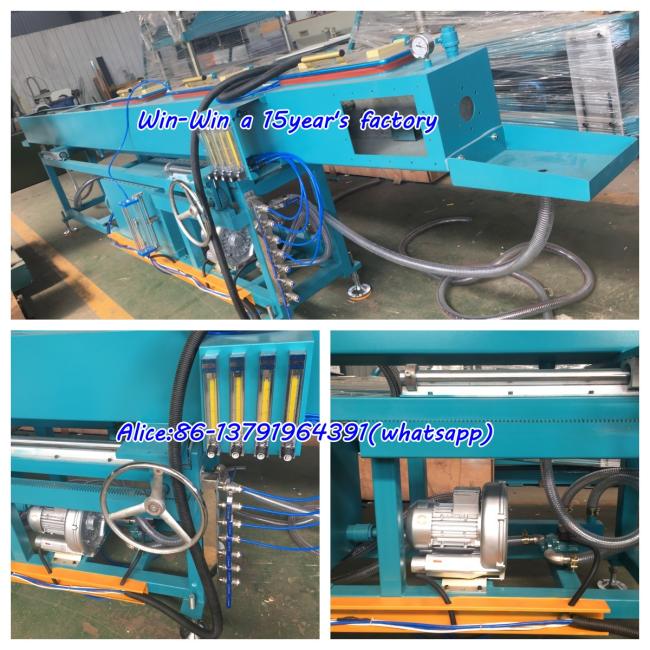

Vacuum Calibration And Spray Water Cooling Tank :Made of stainless steel ensures precise calibration and fast cooling.,It has water pump and vacuum pump,the thickness of the wall is 2-4mm.
-
Haul- Off Machine : It dopts multi claws haul-off unit, speed adjusted by frequency inverter,For different pipe size and different speed requirement ,we develop kinds of haul-off machine accordingly,Optional to choose muti-caterpillar hual-off machine with wide speed range.
Coiler :Single position or double position with torque motors,40 type single/double station coiler,63type single/double station coiler,110type single station coiler.we offer different solutions according different requirement.Sinments PLC automatic operation mode,It is controlled by inverter system,suitable for corrugated hose winding.
Technical parameters:
1. Normal speed
| Pipe diameter(mm) | Extruder model | Output(kg/h) | Total power(kw) | Module No.(pairs) | speed(m/min) |
| Φ6-12 | SJ-45 | 40-60 | 16 | 42 | 6-12 |
| Φ16-32 | SJ-50 | 50-70 | 23 | 48 | 6-12 |
| Φ20-63 | SJ-65 | 60-100 | 38 | 56 | 4-8 |
| Φ50-80 | SJ-75 | 70-130 | 64 | 72 | 3-8 |
2. High speed
| Pipe diameter(mm) | Extruder model | Output(kg/h) | Total power(kw) | Module No(pairs) | speed(m/min) |
| Φ7-14 | SJ45/SJ50 | 40-80 | 25 | 70 | 10-20 |
| Φ16-58 | SJ65/SJ75 | 60-120 | 46 | 74 | 10-25 |
FAQ:
1.Are you manufacturer or trading company?
We are manufacturer for plastic pipe machines, PVC profile machines and plastic recycling machines.
2.Why choose us?
We have 15 years experience for producing plastic machine. Experienced engineers and skilled workers with
good raw material to build the machines with heart and honesty to guarantee the performance of the machines.
3.Delivery time:
40-60 working days.
4.Payment terms:
30% of total amount should be paid by T/T as down payment, the
balance (70% of total amount) should be paid before delivery by T/T or irrevocable
L/C(at sight).
5.After-sales service:
Free Spare Parts ;
Field installation, commissioning and training ;
Field maintenance and repair service ;
Video/Online technical support.
6.Warranty:
12 month
7. How to send an inquiry?
Plase tell us what kind of plastic pipe and diameters you want to produce, we will prepare proposal for you.
You just tell me what machine you want,let us do the rest work:
1. Design and manufacture suitble machine for you.
2. Before delivery, we will test the machine until you are completely satisfied. (You can come to
our factory to inspect the running production line.)
3. Delivery.
4. We will provide after-sales service:
(1) Installation and commissioning;
(2) Training your workers;
(3) Maintenance and repair service ;
(4) Free Spare Parts ;
(5) Video/Online technical support.
