Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine

Price Negotiable

Price: Negotiable

MOQ: 1 SET

Delivery Time: 45workdays

Brand: Win-Win

Product Description

Bridge Prestressed Ribbed PE Corrugated Flat/bamboo Pipe Machine Production Line Extrusion Machine

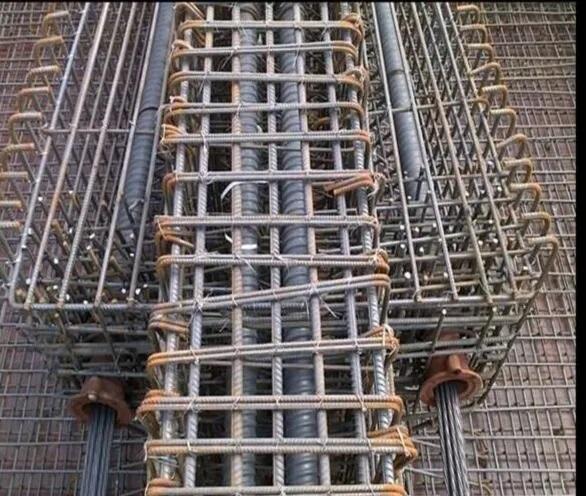

This type of corrugated pipe is mainly used in highway, railway, municipal bridge engineering, elevated bridge, water conservancy project, large iron and steel plant construction (pre buried bolt Engineering) and large-scale high-rise building engineering pre-stressed corrugated pipe system products, grouting construction.

Corrugated Pipe Forming Machine

Production speed: 20-30m/min
Plate material: 38CrMoAlA

High surface hardness, wear resistance, fatigue strength, heat resistance and corrosion resistance. Utilizing nitriding technology and high diamensional precision after treatment. The service life is double than 45#steel .

Cooling method: water cooling
The purple part of the plate is perforated for water circulation, which can ensure that the forming machine and mould are always keeping in low temperature, the pipe inner side more smooth, increase the production speed and product quality.
Forming machine adjustment:

manual control left and right,

Electric control up and down.

PP PE corrugated pipe machine: can carve customer's logo, can choose double cavity or three cavity in one set of mould.

When changing the size, just need to move up and down the forming machine, no need to move out all set of mould, which can save a lot of time for customer.

Mould is made of 38CrMoAlA, same material as screw barrel, high quality and longer working life

The Plastic Extruder Mouth Mould: new designed core bar and mouth mould can combine properly.

When changing the size, there is no need to change the core bar and mouth mould seperately like the old design.

Which can save more than 1h for the clean of the waste material.

Specification

NO	Name	Unit	Qty
1	Vacuum Feeder and Hopper Dryer	Set	1
2	SJ-65/30 Single Screw Extruder	Set	1
3	Corrugated pipe die head	Set	1
4	Core bar and mouth mould	Set	1
5	pipe forming Mould(12-32mm)	Set	1
6	Corrugated pipe forming machine	Set	1
7	Double station Winding machine	Set	1
8	Free spare parts	Pcs	19
9	PLC control system	Set	1
