China PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed for sale

PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine High Speed

Price Negotiable

Price: Negotiable

MOQ: 1 SET

Delivery Time: 45workdays

Brand: Win-Win

Product Description

2023 Hot Sale High Speed PVC PE PPR Plastic Single Double Wall Corrugated Pipe Making Machine

High Speed PVC PE Plastic Single Double Wall Corrugated Pipe Making Machine

SJ45 SJ50 SJ 65 high speed single wall corrugated pipe production line pp pe pvc pipe manufacturing machine High Speed 20-40mm Plastic Single Wall Corrugated Pipe Extrusion Machine Line Cheap Corrugated Pipe Machine Single Wall Corrugated Hose Wire Bushing Corrugated Pipe Extrusion Machinery

WinWin plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to achieve water circulating cooling for the products, which ensures high-speed moulding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are broadly used as wires of up-market cars, shisha hookah hose, electrical conduit, etc. The production speed can up to 20-40m/min.

Corrugated pipe

Applications :

providing automotive air conditioning refrigerant pipe ,automotive wiring harness and other components shock,anti-friction,compression protection,which also be used in the field of machinery manufacturing ,electrical insulation, lighting equipment,automobile manufacturing,aerospace equipment,subway,train,automation and other industries.

More Details about Our Machine:

Ceramic Band Heaters provide long life and use less wattage (because of insulation) in plastics extrusion and injection molding applications. These band heaters are constructed with a stainless steel shroud enclosing high quality ceramic knuckles through which run coiled high temperature nickel-chromium element wire.

Overstandard quality

1.Lower Operating Cost

2.Safe

3.Operator Comfort

4.Operator Comfort

5.Longer Heater Life

6.Higher Operating Temperatures

7.Flexible

8.Dual Heat Transfer

New designed Ceramatic energy saving heater ring can save 30% electricity.

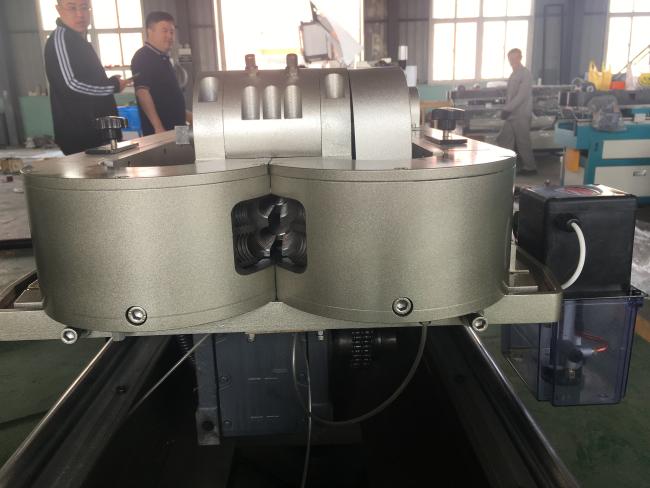

Corrugated Pipe Forming Machine

Production speed: 20-30m/min
Plate material: 38CrMoAlA

High surface hardness, wear resistance, fatigue strength, heat resistance and corrosion resistance. Utilizing nitriding technology and high diamensional precision after treatment. The service life is double than 45#steel .

Cooling method: water cooling
The purple part of the plate is perforated for water circulation, which can ensure that the forming machine and mould are always keeping in low temperature, the pipe inner side more smooth, increase the production speed and product quality.
Forming machine adjustment:

manual control left and right,

Electric control up and down.

PP PE corrugated pipe machine: can carve customer's logo, can choose double cavity or three cavity in one set of mould.

When changing the size, just need to move up and down the forming machine, no need to move out all set of mould, which can save a lot of time for customer.

Mould is made of 38CrMoAlA, same material as screw barrel, high quality and longer working life

The Plastic Extruder Mouth Mould: new designed core bar and mouth mould can combine properly.

When changing the size, there is no need to change the core bar and mouth mould seperately like the old design.

Which can save more than 1h for the clean of the waste material.

Double Position Winder

Specification

NO	Name	Unit	Qty
1	Vacuum Feeder and Hopper Dryer	Set	1
2	SJ-65/30 Single Screw Extruder	Set	1
3	Corrugated pipe die head	Set	1
4	Core bar and mouth mould	Set	1
5	pipe forming Mould(12-32mm)	Set	1
6	Corrugated pipe forming machine	Set	1
7	Double station Winding machine	Set	1
8	Free spare parts	Pcs	19
9	PLC control system	Set	1
