Vacuum Forming Machine Threading Single Wall Corrugated Pipe Extrusion Line
Vacuum Forming Machine Threading Single Wall Corrugated Pipe Extrusion Line

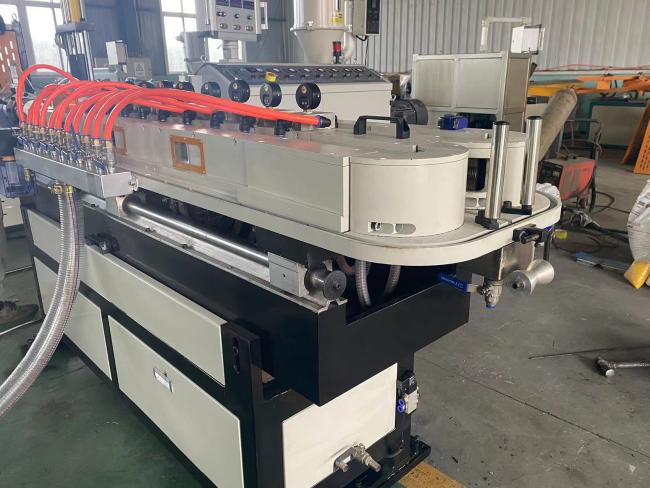

Vacuum Forming Machine Threading Single Wall Corrugated Pipe Extrusion Line can produce PE,PP,EVA, PVC, PA etc material single wall corrugated pipe continuously. We designed new technology, replace the traditional chain forming machine. The appearance and precision of single wall corrugated pipe hav improv gratly. The production line is driven by gears, and the mold runs in the track. It is equipped with an automatic lubrication system and a closed forced water cooling system to achieve high-speed production.
| Model | Pipe Diameter | Production Speed | Extruder Model | Motor Power | Qty Of Molds |
| GSDBGZ-50 | 10-50mm | 12-20m/min | 65/30 | 30 Kw | 72 pairs |
| GSDBGZ-12 | 4.5-12mm | 10-20m/min | 45/28 | 7.5 Kw | 63 pairs |
Our Advantages
- Always upgrade new technology
- We consider different buyers' different request, try our best to meet your satisfy!
Multi-functions
- Strong machine using long life
plastic single wall corrugated pipe extrusion line can produce PP/PE/PVC/EVA/PA corrugated pipe.Mould Chain adopts gear transmission,base plate adopts water cooling,mould adopts air cooling.
Corrugated pipe produced by our machine has the features of high production speed,even corrugated shape,straight pipe seam,and smooth surface. By equipped with vacuum pump and vacuum type mould,it can produce different use corrugated pipe with joint(wash basin drain pipe,air conditioner pipe,hookah pipe etc.)
Extrusion line for the production of single-wall and double wall corrugated tubes and pipes made of PE, PP, PVC, PA, EVA, PVDF, TPE etc.
We Win Win Machinery can supply major machines as below 10items:
1,Mixing unit (Vertical , or Horizontal),high speed mixer~~~for PVC powder;
2,Single screw extruder;
3,Conical twin screw extruder;
4, 2layer; 3 layer;4 layer PPR pipe co-extrusion line; PPR, PE, HDPE, PE-RT pipe production line;
5, Corrugated pipe extrusion line (Single wall corrugated; Double wall corrugated);
6, 3 layer PVC pipe co-extrusion line; PVC pipe production line;
7, PVC 2 cavity pipe production line;
8, PVC 4 cavity pipe production line;
9,Pipe belling machine;
10, Granulating line (PE, PP, PVC)
Qingdao Win Win Machinery Co., Ltd. is a new type of high-tech enterprise specializing in R & D and production of extrusion machine. The company's main products -- plastic pipe extrusion complete production line.
Our production technology of single / double wall corrugated pipe machine, carbon spiral pipe machine and solid wall pipe machine has always been in the leading position in the industry.
If you need plastic extrusion equipment, please feel free to contact me!
Packaging & Shipping
Tel:86-158 4530 5907 (Wechat/skype/whatsapp)
E-mail: libing@qdwinwin.cn
Web1: www.qdwinwin.cn
Web2: www.corrugatedpipeextrusionline.com
Address: Jiaoxi Industrial Park, Jiaozhou, Qingdao, Shandong, China
