PP PS Double Layer Plastic Sheet Extrusion Line 1220-2100mm
PC PP PE Plastic Hollow Cross Section Plate Grid Construction Board Machine

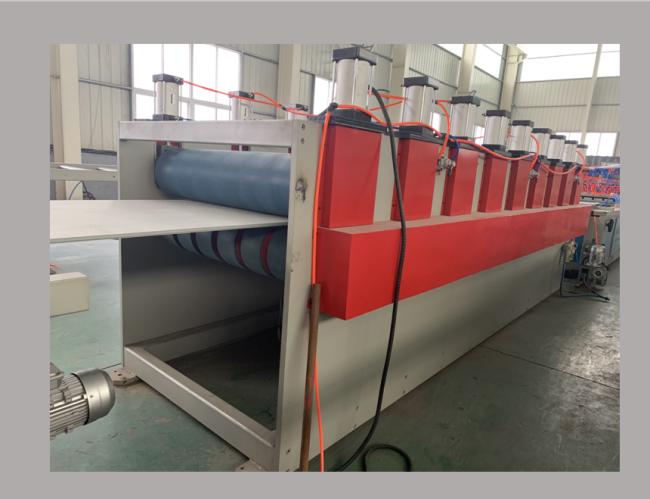

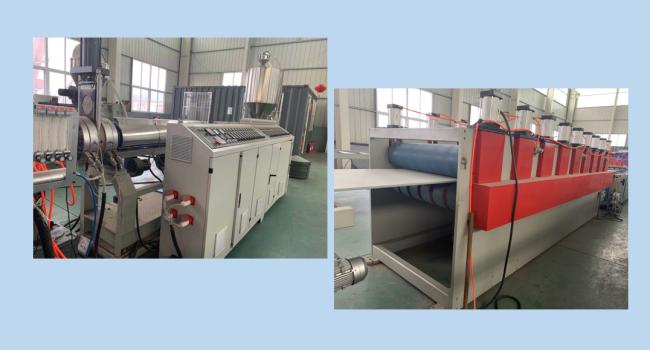

This PC PP PE Plastic Hollow Cross Section Plate Grid Construction Board machine consists of single screw extruder, melt-pump, hydraulic filter exchanging unit, hollow sheet die head, vacuum calibrating table, first haul off machine, oven, corona treating unit, cooling table, second haul off machine, trimming and length-settled cutting units and stacker etc.
Characteristics of vacuum calibrator:
1. High quality mould steel or high strength Al-Mg Alloy
2. Special harden treatment and non-sticky coating on the surface.
3. Independently controlled vacuumize device and temperature controlling system.
4. Consist of vacuum sealing edge device.
| PP/PE Hollow Sheet Extrusion Line Technical Data | PC Hollow Sheet Extrusion Line Technical Data | ||
| Extruder model | SW-120,SW-100 | Extruder model | SW-120, S-45 |
| Sheet width | 2100mm, 1220mm | Sheet width | 2100mm |
| Sheet thickness | 2-8mm, 2-8mm | Sheet thickness | 4-40mm |
| Max capacity | 350kg/h,200kg/h | Max capacity | 450kg/h |
| Main motor power | 132kw | Main motor power | 132kw |
1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 350-650kg/h
2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle mat
erial;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Contacts: Ada
Tel:86-182 5322 6491 (Wechat/skype/whatsapp)
E-mail: ada@qdwinwin.cn
Web 1:www.corrugatedpipeextrusionline.com
Web 2: www.qdwinwin.cn
Address: Jiaoxi Industrial Park, Jiaozhou, Qingdao, Shandong, China
