Multiple Drainage PVC Pipe Extrusion Line Extrusion Molding Machine 16mm
Plastic Tube Multiple Three Layer Drainage PVC Pipe Making Machine
|
Technical parameters of Plastic Tube Multiple Three Layer Drainage PVC Pipe Making Machine |
||||
|
Model |
Pipe range(mm) |
Extruder Model |
Capacity(kg/h) |
Speed(m/min) |
|
SW-63 |
16-63 |
SW-51/105 |
120 |
1.5-15 |
|
SW-110 |
20-110 |
SW-51/105 |
120 |
0.8-8 |
|
SW-160 |
50-160 |
SW-55/110 |
180 |
0.5-5 |
|
SW-250 |
75-250 |
SW-65/132 |
300 |
0.4-4 |
|
SW-315 |
110-315 |
SW-80/156 |
450 |
0.3-2 |
|
SW-450 |
200-450 |
SW-92/188 |
650 |
0.1-1 |
|
SW-630 |
315-630 |
SW-92/188 |
800 |
0.07-0.7 |
Description of Plastic Tube Multiple Three Layer Drainage PVC Pipe Making Machine:
Plastic Tube Multiple Three Layer Drainage PVC Pipe Making Machine is mainly used in the production of pressure water pipes, agriculture irrigation, building or city drainage and Sewage and constructional plumbing cable laying etc.

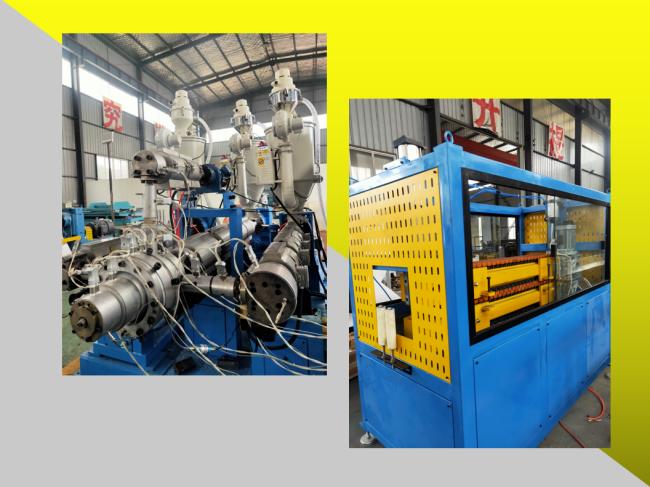

The unit consists of Conical twin screw extruder, PVC pipe mould-Vacuum calibration tank-Haul-off machine-Planetary Saw Cutting machine-Tripping table/Belling machine. Producing pipe diameter range: Φ160mm-Φ400mm. And the line can be equipped with comptroller thickening instrument, computer ink-jet printer, crusher, shredder, pulverizer, water chiller, air compressor etc. to achieve the production and manufacture of high-grade tubing. Advanced design for screws and barrel supplies powerful safeguard for the PVC plasticization.
Process flow of Plastic Tube Multiple Three Layer Drainage PVC Pipe Making Machine
Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Conical Twin Screw Extruder → Mould → Vacuum Calibration Tank → claws Haul-off → Planetary Saw Cutter → Belling machine/ Tripping Table → Final Product Inspecting &Packing
