180kg/H Double Wall Corrugated Pipe Machine Electrical Heating 33L/D
PE/PVC Single/Double Wall Corrugated Pipe Production Extrusion Machine Line with Ce and ISO
| Model of the single screw extruder | SJ-30B | SJ-45B | SJ-65B | SJ-90B | SJ-120B | SJ-150B |
| screw of the extruder(L/D) | 25-33 | 25-33 | 25-33 | 25-33 | 25-33 | 25-33 |
| Power of the extruder(kw) | 2.2-7.5 | 7.5-22 | 18.5-55 | 55-185 | 90-280 | 110-300 |
| Heating Power (kw) | 5-8 | 6-12 | 12-18 | 16-40 | 20-60 | 30-80 |
| Max. Extruding Capacity (kg/h) | 18 | 60 | 180 | 450 | 650 | 950 |
PE/PVC Single/Double Wall Corrugated Pipe Production Extrusion Machine Line with Ce and ISO Features:
PE/PVC Single/Double Wall Corrugated Pipe Production Extrusion Machine Line with Ce and ISO developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. Molding corrugation pipe with smooth inside and outside surface,and even ripple at one time by corresponding die.
PE/PVC Single/Double Wall Corrugated Pipe Production Extrusion Machine Line with Ce and ISO Application:
1.The production line is suitable for producing small diameter single wall bellows with PP and PE raw materials. It can continuously produce polyethylene, polypropylene, polyvinyl chloride, Eva and other bellows and PA bellows.
2.It is used as wire and cable to wear pipe, washing machine drainage pipe, vacuum cleaner pipe and ventilator
3.It is widely used in automobile wire, electric wire pipe, machine tool circuit, lamp wire protection tube, air conditioner, washing machine and so on.
PE/PVC Single/Double Wall Corrugated Pipe Production Extrusion Machine Line with Ce and ISO Process line:

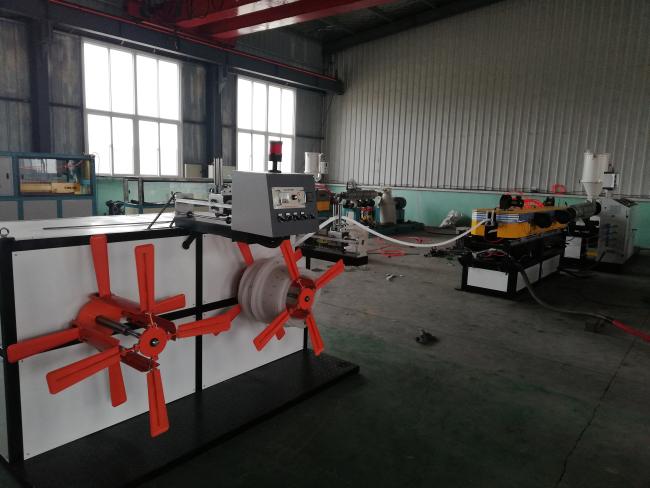

Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing

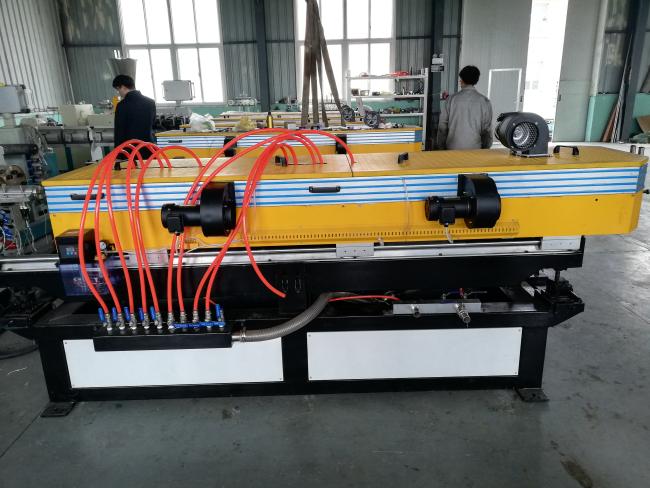

Single wall high speed corrugated pipe forming machine can produce two diameters or three diameters single wall corrugated pipe in the same mould blocks, which reduce the cost of the moulds and time for changing the mould blocks, increase the efficiency.
This kind of pipe is high temperature resistance, anti-erosion, anti-abrasion and with high strength, the pipe can be used as oil pipe in automobile braking system, and for high temperature egas, chemical liquid transferring.
