20-110mm PE PP HDPE Pipe Extrusion Line / Making Machine
20-110mm Plastic HDPE PE PP Pipe Extrusion Production Line /Making Machine
Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine,These corrugated pipes are especially used as wires of the up-market cars, electric conduit pipe passing, washing machine, air conditioner pipe, lamp pipes, etc.
| Model | Pipe Diameter (mm) | Motor Power | Speed (m/min) | Max .Output (kg/h) | Total Power |
| SJ-45X30 | 5-15 | 15 | 1-20 | 45 | 35 |
| SJ-50X30 | 16-32 | 18.5 | 1-15 | 90 | 55 |
| SJ-65X30 | 40-63 | 37 | 1-10 | 120 | 70 |
Advantages
1. The extruder of HDPE pipe line adopt high efficiency screw & barrel, the gearbox is hardening teeth gearbox with self-lubrication system. The motor adopt Siemens standard motor and speed controlled by ABB inverter. The control system adopts Siemens PLC control or button control.
2. This PE pipe line is composed by material charger+ Single screw extruder + pipe mold + vacuum calibration tank + spraying cooling tank x 2sets + three caterpillar haul-off machine + no-dust cutter+ stacker.

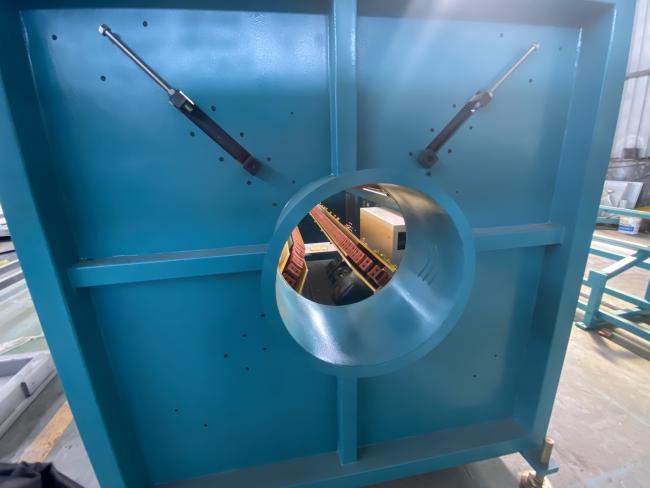

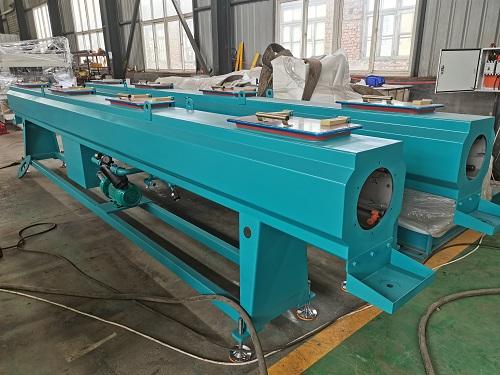

3. The tank body of vacuum calibration tank adopt two chamber structure the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless steel 304#. The excellent vacuum system ensures the precise sizing for pipes; spraying cooling will improve the cooling efficiency; Auto water temperature control system make the machine more intelligent.
4. The haul-off machine of this pipe line will adopt caterpillars type. With meter code, it can count the pipe length during the production. Cutting system adopt no-dust cutter with PLC control system.
Plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall.
-----Production speed is 15m/min to 25m/min.
-----The forming machine has 38 pairs to 72 pairs forming block.
