15-24m/min Plastic PE PP PVC Pipe Single Wall Corrugated Extrusion Line Description:

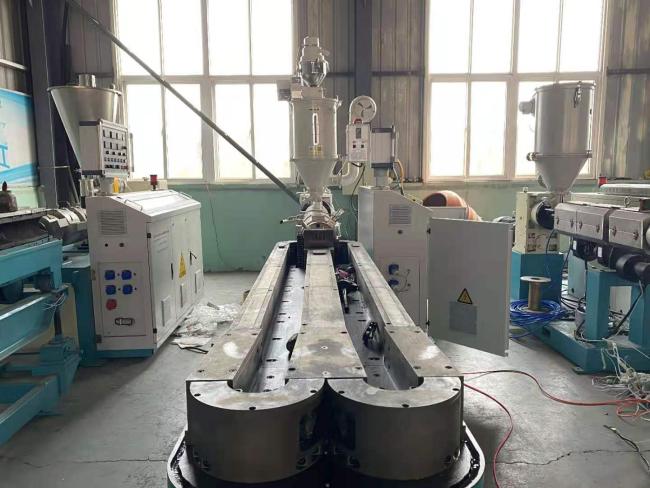

Single wall corrugated tube production line is used to produce small caliber single wall corrugated hose. The extrusion line is composed of an automatic feeding system, a single screw extruder, a die head, a forming machine and a cooling machine.

We have two kinds of forming machine. One is callled medium speed, the speed is around 4-10m/min; Another type is called high speed, speed is around 15-24m/min.Single wall corrugeated pipe machine:
Application: Electrical conduction, car conduction, protective pipe for machines;

15-24m/min Plastic PE PP PVC Pipe Single Wall Corrugated Extrusion Line Application:

Single wall corrugated pipe is mainly used in golf courses, sports field, light load, flood drainage; interior cable casing; wire and cable threading pipe, a drainage pipe of a washing machine, vacuum cleaner, air conditioning ventilation pipe, sewer pipe; prestressed concrete
special-shaped pipe etc..

Working process:

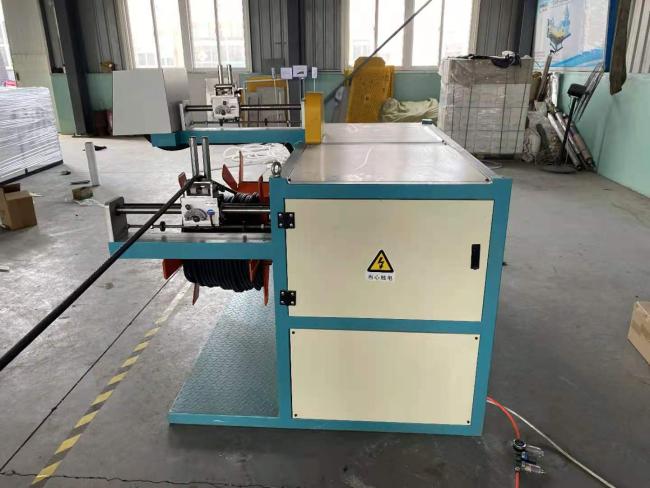

Raw material → mixing→vacuum feeding → material dryness → single screw extruder → Forming mould → winding machine→finished product inspecting &packing

Advantages:

1. The optimum spiral structure-feeding throat highly improves the output of extruder;
2. Accurate temperature control system ensures materials melting performance;
3. Unique screw design achieves better plasticizing and high quality products;
4. Precisely designed gearbox with a high torsion guarantees stable running;
5. Advanced PLC operation system realizes synchronization and automation;
6. Adopt automatic water or air cooling mode;
7. Low energy consumption, excellent performance, and easy maintenance.
