Mould 50 Pairs PP PE Corrugation / Corrugated Pipe Extrusion Line
1.Plastic corrugated pipe (PE, PP,PVC,PA) widely used in the wire connection of machine tool machinery and electric box control cabinet, the product is beautiful, light and durable, widely used in automotive wire harness, electronic, mechanical wire harness and other fields.
2.The corrugated pipe extrusion line includes a vacuum feeder and a drying hopper, a SJ65 single-screw extruder, a die, forming modules, a forming machine and a winder.
2.Features:

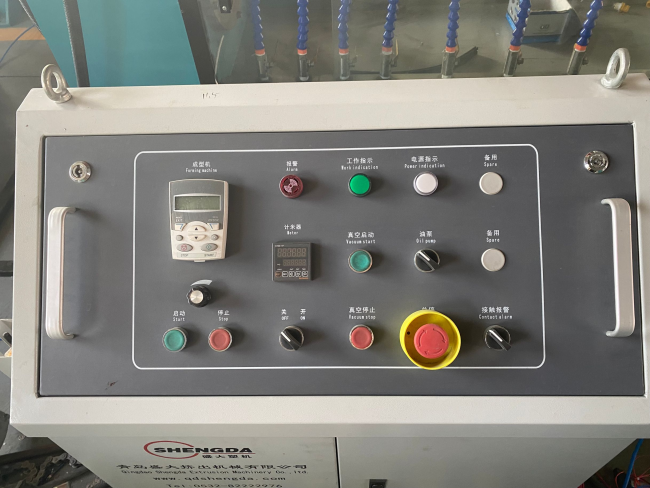

1. Touch screen control, easy to operate
2.4-32mm without tools, catheter adapter
3.Stepper move, belt traction, high speed and stability
4. Affordable
| NO. | Name | Quality |
| 1 | Automatic Feeder | 1 |
| 2 | SJ45/30 single screw extruder with auto vacuum loader | 1 |
| 3 | Die head | 8 |
| 4 | modules | 8 |
| 5 | Corrugater with mold | 2 |
| 6 | Cutter | 1 |
| 7 | Winder with meter counting unit | 1 |
Specification of Mould 50 Pairs PP PE Corrugation/Corrugated Pipe Extrusion Line
Specification of the SJ65/33 Extruder
Performance features:
Screw: Big output & L/D ratio. with low temperature plastication concept.
Barrel: barrel is made of special steel alloy, and is equipped with aluminum thermal foil with air cooling system.
Gearbox: gears are made of steel alloy with heat treatment and are finished with surface precision grinding. By using oil injection cooling system, it reduces noise when operating under high RPM and enhances the life span of gears.
Inventer:ABB Temperature table:Omron Contactor:Simens
| Model | GSJ-65/33 |
| Extrude central height | 1100mm |
| High efficiency screw | |
| Diameter | 65mm |
| L/D | 33:1 |
| Material | 38CrMoAlA |
| Surface Treatment | Nitrided and Polished |
| Barrel | |
| Material | 38CrMoAlA |
| Inner Surface treatment | Nitrided, ground |
| Heating method | By ceramic |
| Heating control zones | zones |
| Cooling system | By blower fan |
| Cooling zones | 4zones |
| Cooling power | 0.2KW/zone |
| Gearbox | |
| Material of the house | QT200 |
| Gear type | Helical gears |
| Material of the gear | 20CrMnTi |
| Heat treatment of the gear surface | Quenching |
| Material of the axes bearings | 40Cr Imported high quality bearing |
| Main Motor | 22KW |

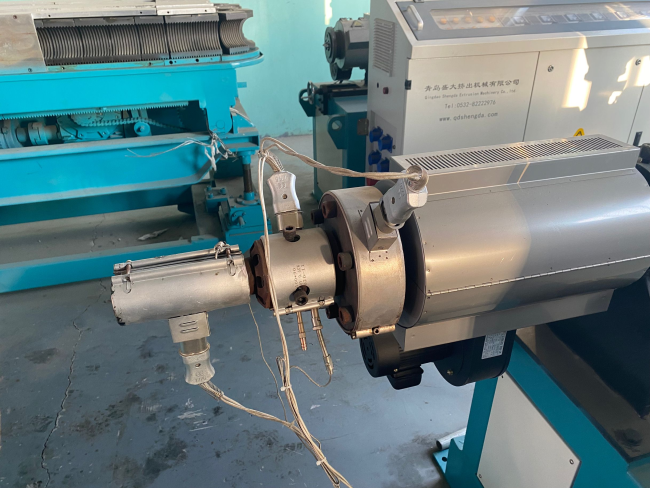

2.PP PE Corrugation/Corrugated Pipe Extrusion Line:Mold die with modules
1.1mold standard:Internal Dia : 1.5" 2 "
2.2Heater Die adopt casting aluminum heater, mica heater for mouth die.
2.3Calibration Unit :The material of sizing unit is high-quality wearing resistance copper
2.4 Mould block: AL
2.5 All the molds inner runner are chrome plated and good mould steel.
2.6 material:40Cr and nitrided
2.7 modules:50 pairs
3. PP PE Corrugation/Corrugated Pipe Extrusion Line:Corrugated style forming machine one set
3.1Structure Horizontal
3.2Corrugators up/down moving motor 2.2KW
3.3Guide track The material is 40Cr
3.4Block seat Material is 40Cr, nitrided
3.5Back/Forward Track
3.6Hydraulic system Oil pump: 1.1KW
3.7Corrugators motor AC motor 2.2KW x 1 setPP PE Corrugation/Corrugated Pipe Extrusion Line:
3.8Corrugators gear box Helical gears
3.9Corrugators cooling Block is cooled by air, 0.25KW x5set cooling fan
4. PP PE Corrugation/Corrugated Pipe Extrusion Line:haul off machine and shrink pipe equipment one set
5. PP PE Corrugation/Corrugated Pipe Extrusion Line:Cutter
